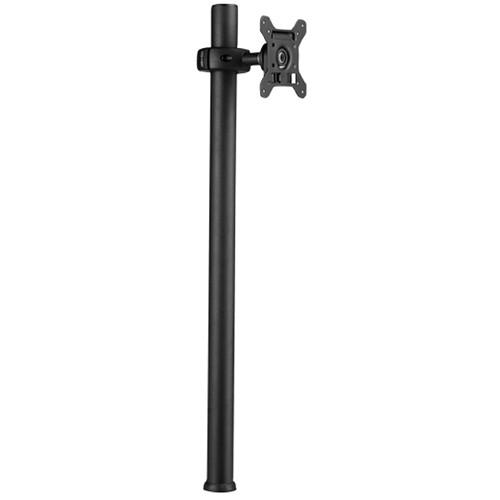

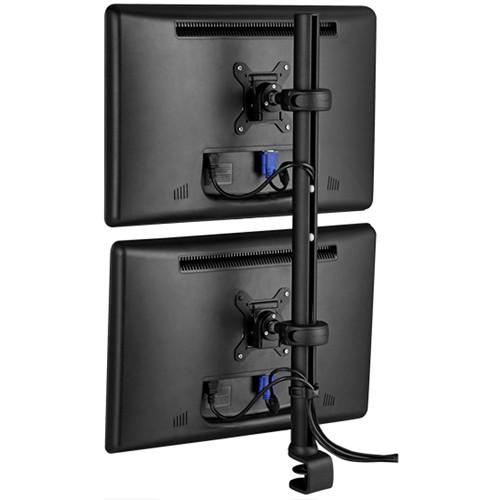

Product description The black Spacedec SD-DP-750 29.5" Quick-Shift Donut Pole from Atdec is compatible with most flat panel displays between 12" (30cm) and 24" (61cm) that feature either 75 x 75mm or 100 x 100mm VESA mounting hole patterns. It offers good display versatility and comes with a Quick-Shift mounting donut for a customized display installation. The Quick-Shift lever allows a screen to be moved up and down the pole by hand, without the need for any tools. The viewing angle and screen orientation are also fully adjustable, and the mount also features a quick-release mechanism to rapidly remove and change screens. Built-in internal cable management ensures a professional finish for maximum display impact. Note: SD-DP-750 comes with 1 mounting donut. For a multi-display configuration, you can add more donuts by ordering the SD-DO Mounting Donut (sold separately). - Designed for simple installation

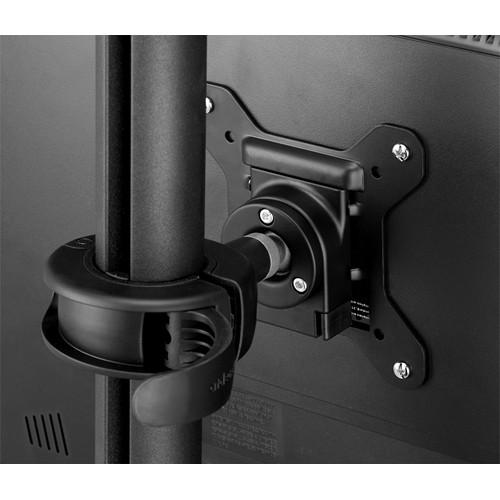

- Quick-Shift donut for easy vertical adjustment
- Quick-release mechanism for fast display attachment/removal
- Ball joint mechanism allows 20° of display adjustment in any direction from the vertical plane
- Portrait and landscape rotation

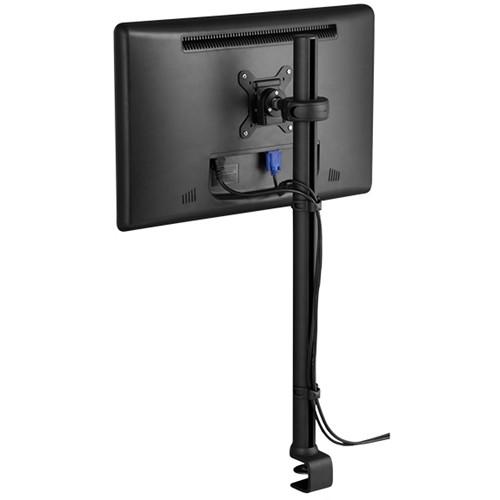

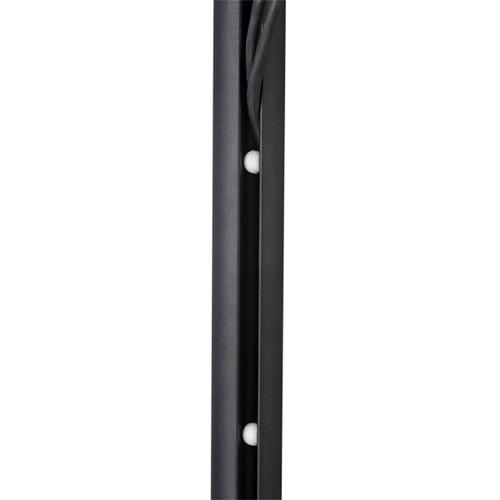

- Integrated cable management

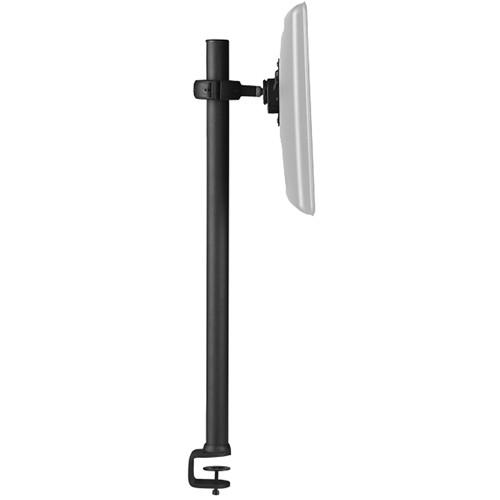

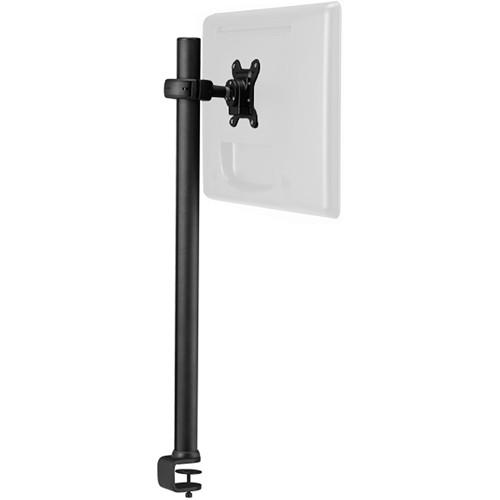

- Bolt-through and desk clamp mounting options included
UPC: 881493005068 In the Box Atdec Spacedec SD-DP-750 29.5" Quick-Shift Donut Pole (Black) Desk Clamp Bolt-Through Mount Mounting Donut Cable Wrap Manager Clip Cable Clips Cable Wrap Mounting Hardware Limited 10-Year Warranty Brochure PDF 745.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Spacedec SD-DP-750 29.5" Quick-Shift Donut Pole in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec SD-DP-750 Specs | Maximum Load Capacity | 26.5 lb (12.0 kg) | | Display Range | 12 to 24" (30 to 61 cm) | | Mounting Pattern | 75 x 75 mm; 100 x 100 mm Also supports 200 x 100 via additional adapter plate AC-AP-2010 (sold separately). | | Material | Aluminum/steel | | Screen Rotation | 360° (portrait/landscape) | | Rotation | Around Pole: 360° or fixed | | Adjustments | Tilt/Pan: Ball joint mechanism allows 20° display adjustment in any direction from the vertical plane
Display Pan: 90° left and right, total of 180° | | Cable Management | Integrated | | Mounting Options | Desk clamp and bolt through (both included)
Desk Clamp suits desktop thicknesses from 0.5 to 1.5" (12.0 to 38.0 mm)
Bolt through suits desktop thicknesses from 0.5 to 1.5" (12.0 to 38.0 mm) | | Dimensions (H x Diam.) | Pole: 29.50 x 1.65" (750 x 41.91 mm)
Total Height: 31 x 1.65" (787.4 x 41.91mm) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 30.0 x 9.5 x 6.0" |
