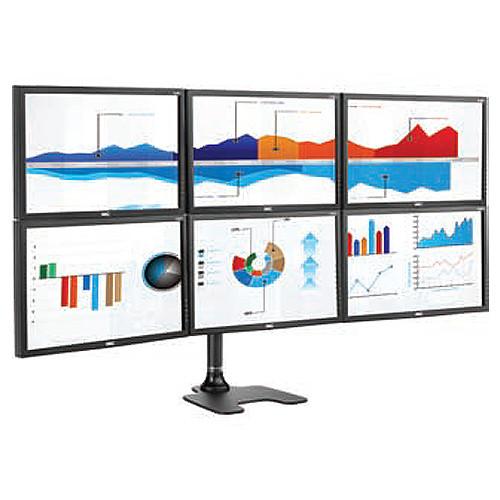

User Manual for Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount Click to enlarge the picture
Contents of the user manual for the Atdec Spacedec SD-FS-H Six Monitor Desk
- Product category: Monitor Table Top Stand Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Table Top Stand Mounts
|
User manual for the Atdec Spacedec SD-FS-H Six Monitor Desk contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|
Product description The black Spacedec SD-FS-H Six Monitor Desk Display Mount from Atdec is designed to hold up to six 24" displays weighing up to 17.6 lb each. It accommodates mounting patterns of 75 x 75 or 100 x 100 mm but can also handle 200 x 100 mm patterns with the purchase of an additional adapter. The steel and aluminum system can be used as either a freestanding or bolt through mount. The Spacedec features a curved cockpit profile making it easy for viewing from multiple angles. This design is also a space saving benefit. The Spacedec features pan and tilt adjustments as well as portrait and landscape format rotation. Built-in cable management helps make for a clean and professional looking display. The unit ships with all required mounting hardware and is backed by Atdec's 10-year limited warranty. - Accommodates six 24" monitors with a maximum width of 25" and 71.72" height per display (each up to 600mm wide in a landscape configuration)
- Curved rail configuration for an improved viewing angle
- Center display quick-release mechanism for easier assembly
- Display horizontal position adjustment
- Strong steel and aluminum construction
- Independent monitor position adjustment allows for a combination of variable screen sizes
- Bolt through and freestanding base mounting options (both included)
- Integrated cable management for housing up to 12 x 8mm (0.3") cables
UPC: 881493005143 In the Box Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount (Black) Mounting Hardware Limited 10-Year Warranty User Manual PDF 585.5kbffcedcqbuyzwdssdbsewrexzdw Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec SD-FS-H Specs | | | Mount Type | Freestanding
Freestanding with optional bolt down
Bolt Through | | Depth From Mounting Source | 6.7" (17.0 cm) | | Max Equipment Size | 24.0" (61.0 cm)
Maximum height and width per display should not exceed 25.0" (63.5 cm) and 71.72" (182.1 cm) | | Adjustments | Tilt: 20°
Pan: 20°
Horizontal: 55.8" (141.7 cm)
Height: Yes
Screen rotation: Yes
Portrait/landscape: 360°
Quick-release head for center display | | Mounting Pattern | 75 x 75 mm
100 x 100 mm
Also supports 200 x 100 mm via additional adapter plate AC-AP-2010 (sold separately) | | | | Construction | Steel, aluminum | | Dimensions | 55.8 x 35.1" (141.7 x 89.2 cm)
Base: 13.4 x 0.3" (34.0 x 0.8 cm) | | Weight Capacity | 17.5 lb (8.0 kg) per display | | Package Size | 36.2 x 18.7 x 5.9" (91.9 x 47.5 x 15.0 cm) | | Shipping Weight | 52.9 lb (24.0 kg) | | | | Package Weight | 52.8 lb | | Box Dimensions (LxWxH) | 36.0 x 16.5 x 5.0" |
