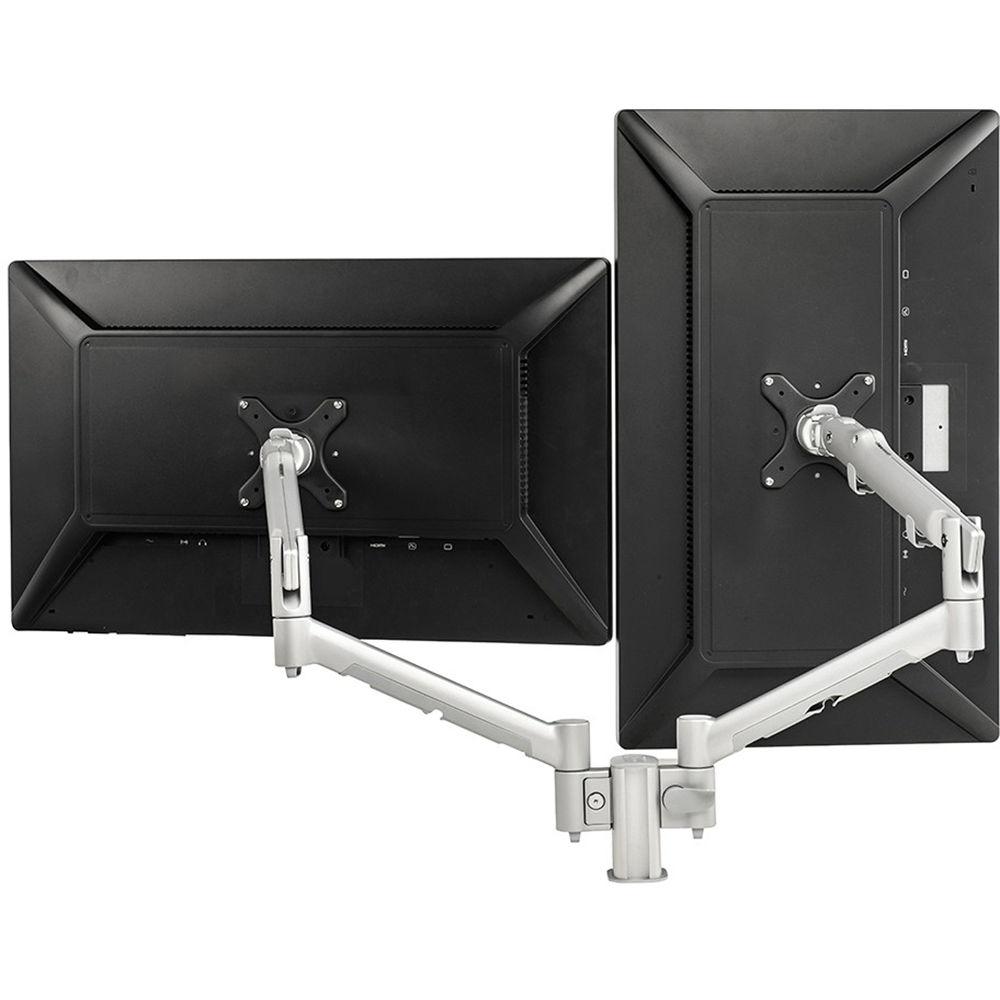

User Manual for Atdec SYSTEMA 26" Dual Monitor Spring Arms with 3.9" Post Desk Mount Click to enlarge the picture
Contents of the user manual for the Atdec SYSTEMA 26" Dual Monitor Spring
- Product category: Monitor Table Top Stand Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Table Top Stand Mounts
 |
User manual for the Atdec SYSTEMA 26" Dual Monitor Spring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|

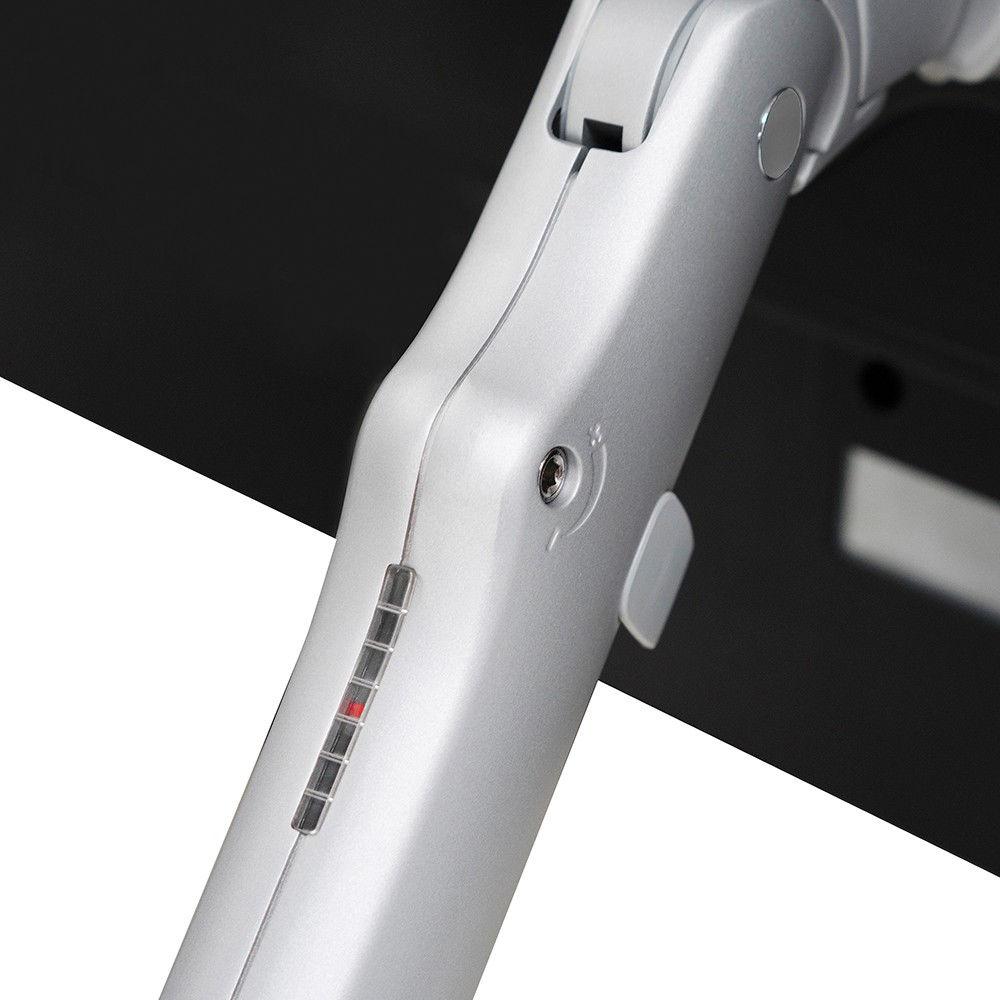

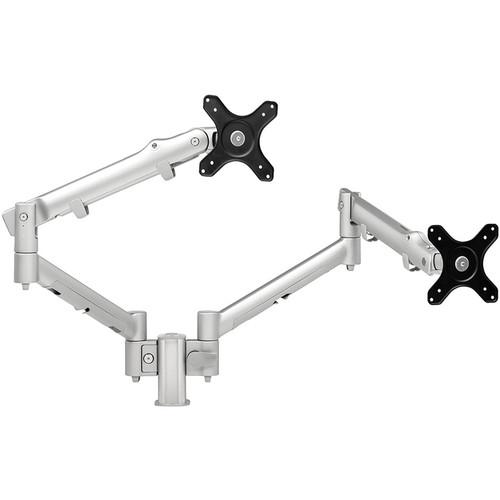

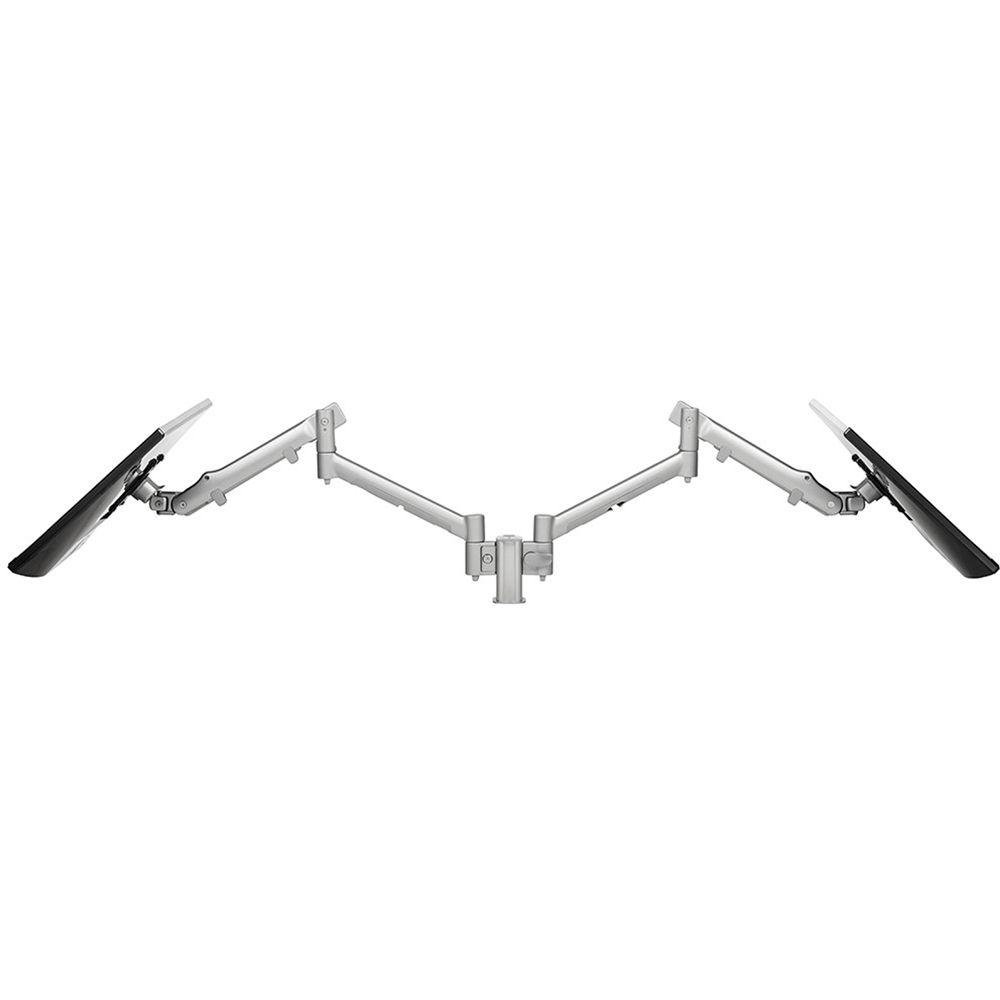

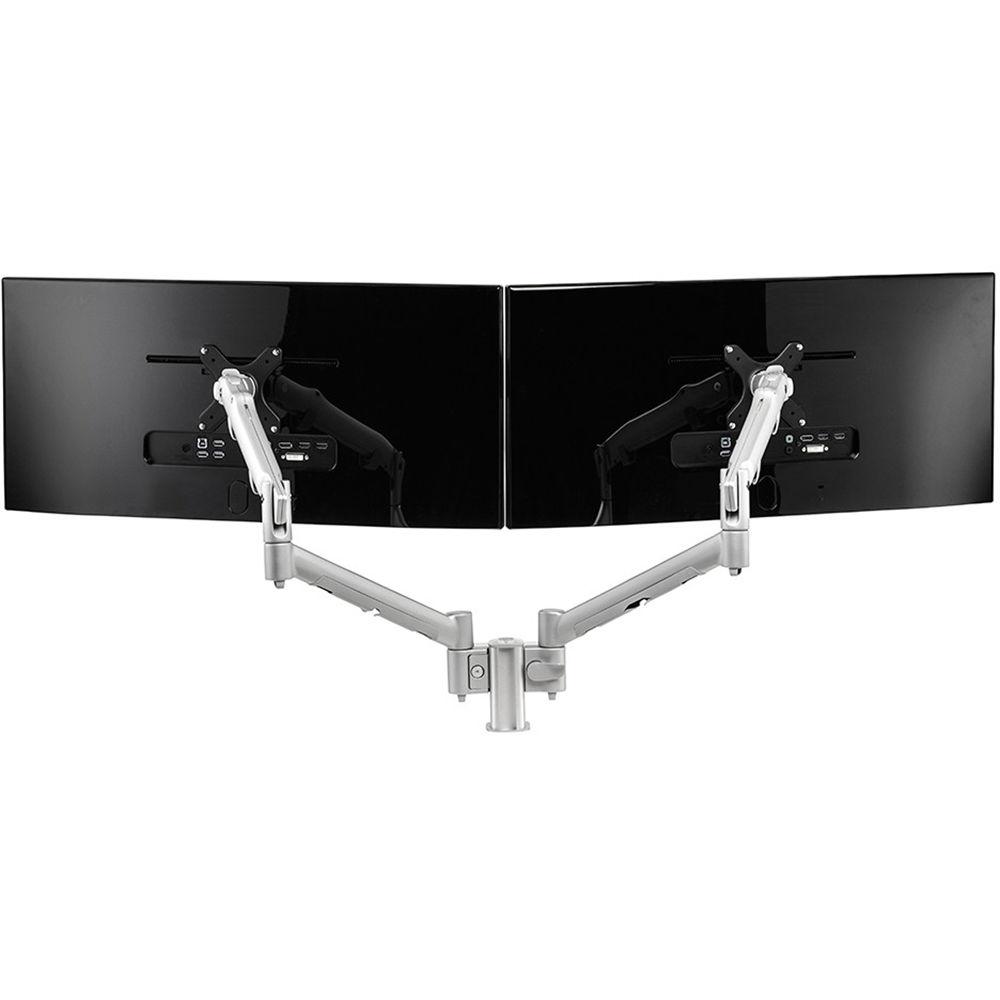

Product description The silver Atdec SYSTEMA 26" Dual Monitor Spring Arm with 3.9" Post Desk Mount enables secure placement of up to 2 VESA 75 x 75 and 100 x 100 compatible displays. The included 26" spring-assisted arms offer viewing flexibility with pan and tilt adjustment options. They also support displays up to 17.6 lb and allow you to view your connected monitors in portrait and landscape viewing orientation, if supported by the monitors. These two arms also feature a spring tension visual gauge and quick release mechanism for easy monitor attachment and removal.

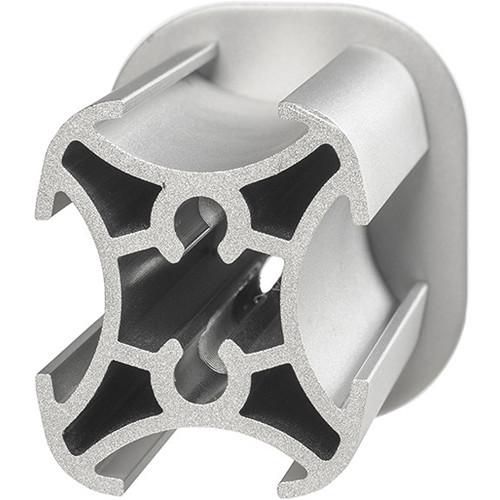

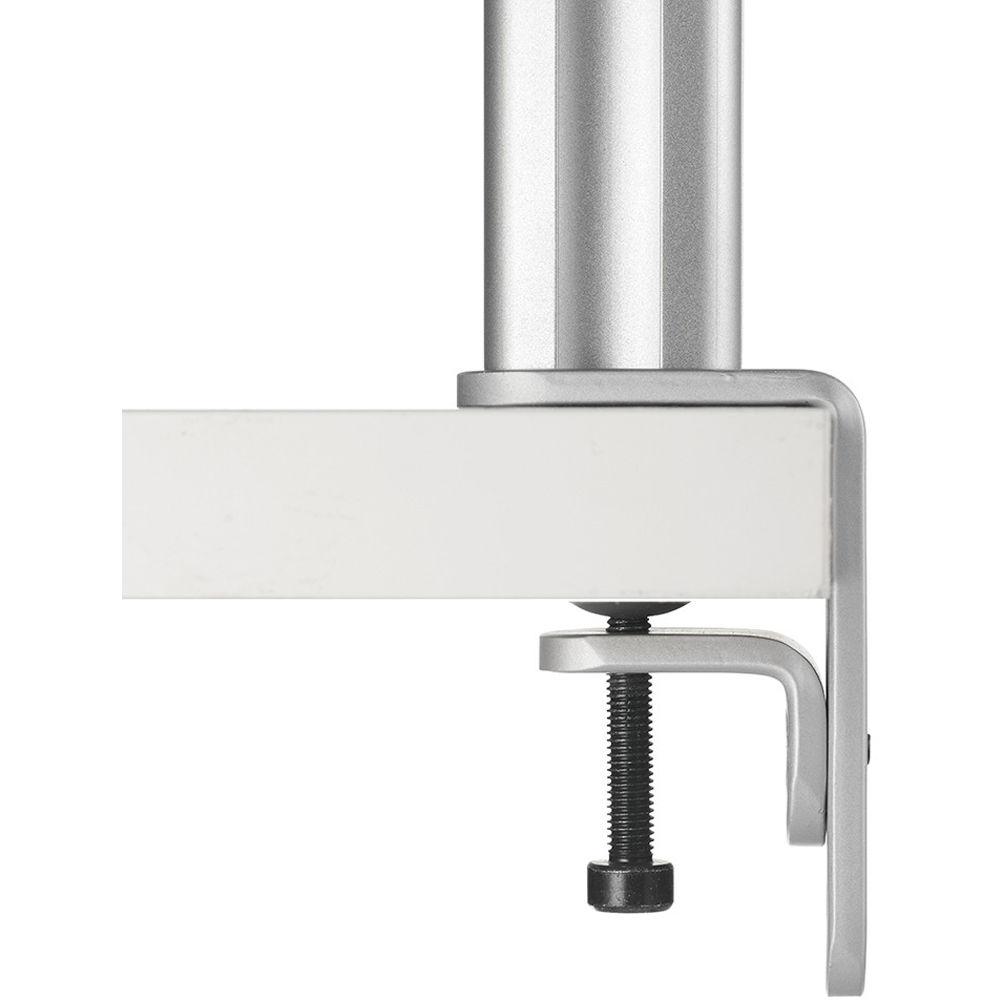

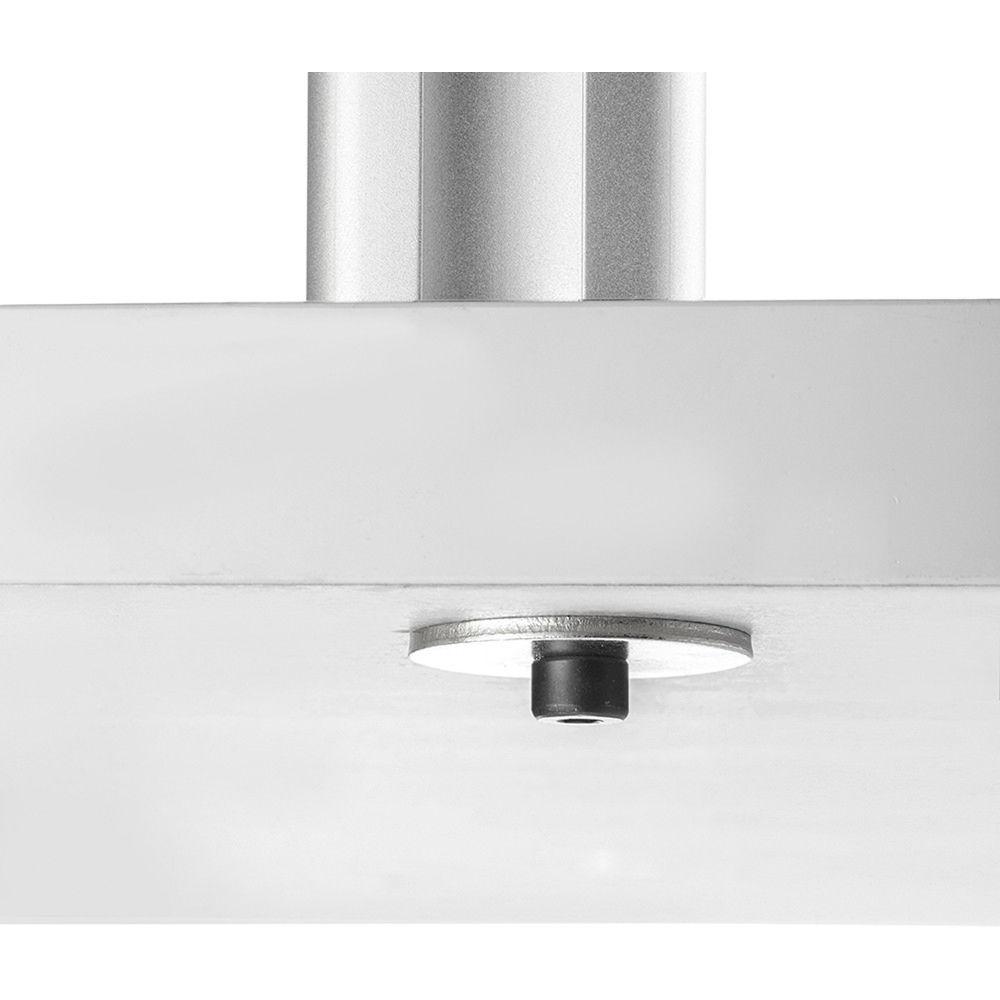

This mounting system supports displays up to 34" in landscape orientation or up to 27" when the displays are mounted in portrait orientation. Furthermore, the spring arms can be installed in a single row configuration in any of the four channels of the post. The bundled 3.9" post can be clamped onto your desk or bolted through using the included mounting hardware. This post features hardened steel construction, providing a strong frame for your mounted display. For larger monitors, this mounting system also supports Atdec's optional 200 x 100 VESA adapter plate. - SYSTEMA 26" Monitor Spring Arm (Silver) Provided by third party: The Atdec SYSTEMA 26" Spring Arm, in silver, is an articulating monitor mount arm that provides up, down, forward, backward, sideways, pan, and tilt adjustability for your monitor, as well as landscape and portrait positioning capability. This arm must be used in conjunction with any SYSTEMA desk mount post or wall mount channel, sold separately. The vertical adjustability of the spring arm enables you to use short, minimalist posts/wall channels without a limit on vertical adjustment. Standard SYSTEMA arms aren't capable of vertical adjustment and must therefore rely on long posts for up/down movement.

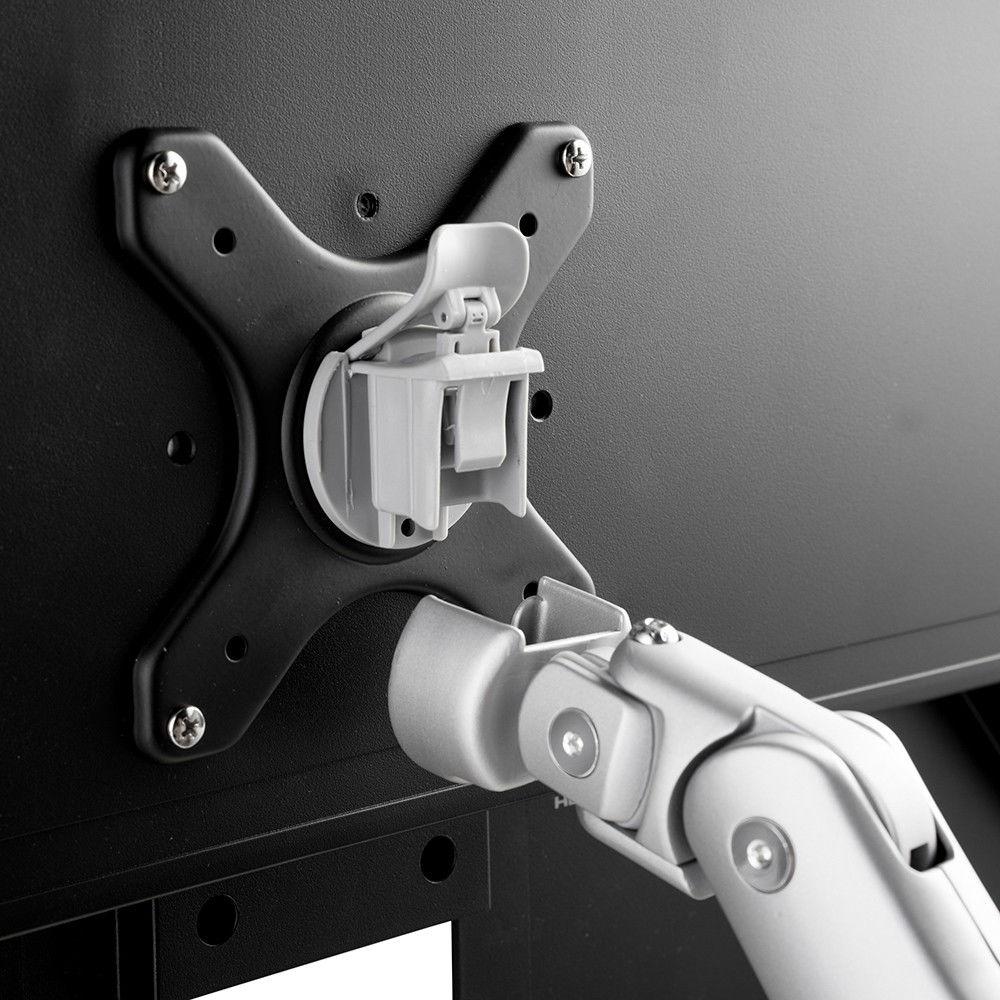

The spring arm is designed with spring tension that can be tightened or loosened to safely support monitors of different weights. This arm supports all monitors from 3.3 lb to 17.6 lb via an included VESA mount head. The VESA mount head features 75 x 75 and 100 x 100 VESA mounting patterns and supports an optional 200 x 100 VESA mount plate for larger monitors. The VESA mount head can also be replaced with an optional SYSTEMA Notebook Tray to alternatively support notebooks and laptops instead of monitors. The VESA mount head easily attaches or removes from the arm via a quick release mechanism.
The spring arm also features circular loops along its entire length for convenient cable management. Note: A SYSTEMA post or wall channel, sold separately, is required to hold this arm. - Key Features
-
- Up, down, forward, backward, sideways, pan, and tilt adjustment
- Landscape and portrait positioning
- Spring tension adjustment supporting 3.3 lb - 17.6 lb monitors
- VESA 75 x 75 and 100 x 100 mounting patterns
- Supports optional VESA 200 x 100 Mount Plate and SYSTEMA Notebook Tray
- Quick release mechanism for monitor attachment/removal
- Cable management loops
UPC: 881493008687 - SYSTEMA 3.9" Post (Silver)
In the Box Bundle Items SYSTEMA 3.9" Post (Silver) zbyerqdfudxwxdydeb 2 x SYSTEMA 26" Monitor Spring Arm (Silver) Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec SYSTEMA 26" Dual Monitor Spring Arms with 3.9" Post Desk Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SYSTEMA 26" Monitor Spring Arm (Silver)
| Weight Capacity | 3.3 - 17.6 lb (1.5 - 8 kg) | | Pan Adjustment | 90° left / 90° right | | Tilt Adjustment | 45° up / 25° down | | Length | Maximum Reach: 26.2" (66.5 cm) | | Quick Release | Yes | | Material | Steel, aluminum, and plastic | | Color | Silver | | Compliance | Green Star Office Interiors program compliant | | Security | Theft resistant design | - SYSTEMA 3.9" Post (Silver)
