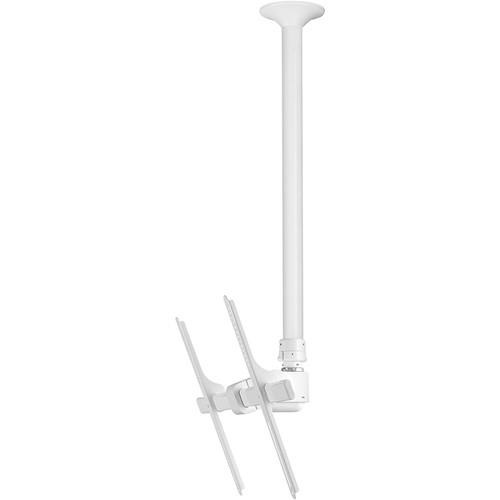

User Manual for Atdec TELEHOOK Flat Screen Ceiling Tilt Mount Long Click to enlarge the picture
Contents of the user manual for the Atdec TELEHOOK Flat Screen Ceiling Tilt
- Product category: Monitor Ceiling Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Monitor Ceiling Mounts
 |
User manual for the Atdec TELEHOOK Flat Screen Ceiling Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|

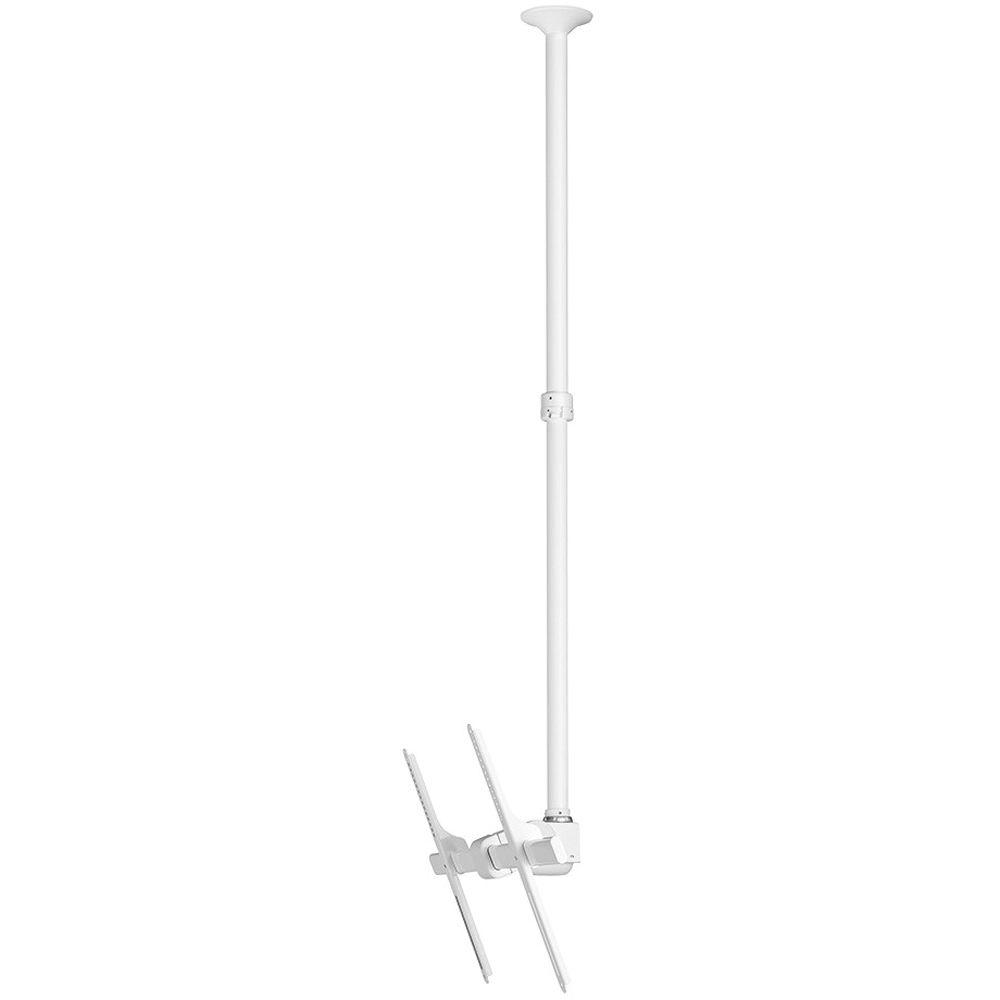

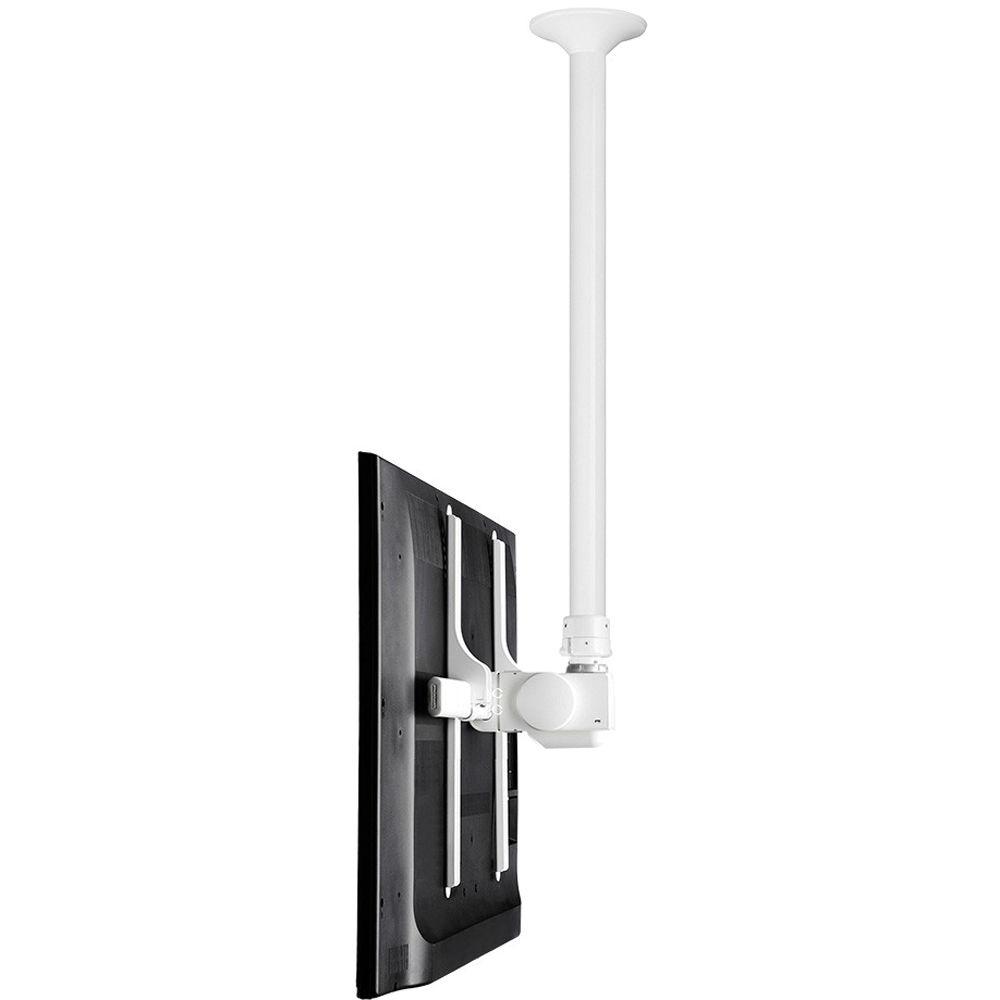

Product description This is the long Atdec Ceiling Tilt Mount, in white, for displays weighing up to 143 lb. Suspend your display from a ceiling, adjust it 41 - 75", tilt it -10 to 20°, and rotate it a full 360°. Attach the display in portrait or landscape orientation to the mount's universal VESA pattern (200 x 200 to 800 x 500mm). Cable management features and a false ceiling cover allow for a clean, elegant look. Additionally, you can integrate the optional Adtec TH-3070-CT-B2B frame to support dual displays in a back-to-back configuration. Note: To achieve a maximum downward tilt of 20°, the display height should be up to 45". For displays with greater height, there will be a reduction in the achievable tilt angle. UPC: 881493009424 In the Box Atdec TELEHOOK Flat Screen Ceiling Tilt Mount Long (White) Pole Assembly Head Clamp Assembly 2 x Mounting Brackets 2 x Bracket Locking Plates 2 x Cable Clips Ceiling Cover Mounting Plate Mounting Cover Clamp Cover (Bottom) Clamp Cover (Middle) 2 x Clamp Covers (Side) Horizontal Rail Mounting Hardware Limited 10-Year Warranty Brochure PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec TELEHOOK Flat Screen Ceiling Tilt Mount Long in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec TH-3070-CTLW Specs | Weight Capacity | 143 lb (63 kg) | | Drop Length | 41 - 75" (1 - 1.9 m) | | VESA Pattern | 200 x 200 to 800 x 500 mm | | Rotation | 360° | | Tilt Range | -10 to 20°
To achieve a maximum downward tilt of 20°, the display height should be up to 45". For displays with greater height, there will be a reduction in the achievable tilt angle. | | Construction | Steel and aluminum | | Dimensions | Fully Extended (without Monitor):
Approximately 34.0 x 74.8 x 6.5" (86.4 x 190.0 x 16.5 cm)
Fully Retracted (without Monitor):
Approximately 34.0 x 41.3 x 6.5" (86.4 x 105.0 x 16.5 cm) | | Weight | 33 lb (15 kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 42.0 x 11.5 x 6.0" |
