User Manual for Atdec Telehook ProAV Ultra-Short Throw & Short Throw Projector Wall Mount Click to enlarge the picture
Contents of the user manual for the Atdec Telehook ProAV Ultra-Short Throw &
- Product category: Projector Mounts Atdec
- Brand: Atdec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atdec Projector Mounts
|
User manual for the Atdec Telehook ProAV Ultra-Short Throw & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atdec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atdec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atdec product will considerably shorten its lifespan!
|

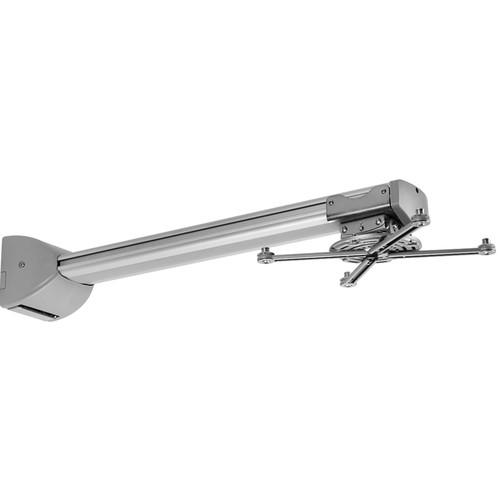

Product description The Telehook ProAV Ultra-Short Throw & Short Throw Projector Wall Mount from Atdec supports virtually all ultra-short throw and short throw projectors weighing up to 55 lb and allows you to adjust the position of the projector from 7.5 to 30" from the wall. This is done by simply sliding the projector along the mounting arm as your needs require. The mount can be fixed to a single timber stud or masonry walls using included mounting hardware. The installation process is simple, consisting of just securing the base components to the wall and then attaching the mounting arm to the base via an easy "hook-in-place" attachment feature. The mounting head provides +/-20° tilt, +/-5° roll, and 360° pan adjustment. Additionally, the arm allows +/-5° of tilt adjustment to account for wall slope or individual projector characteristics.
Security screws at all connection and adjustment points ensure safety in public environments, while an integrated cable management system with entry and exit push outs at the wall plate allows you to keep cables neatly and safely out of the way.
The projector mounting interface has a universal design that adjusts to support most ultra-short throw and short throw projectors. The interface additionally offers 7mm of level adjustment for uneven projector surfaces. The system uses industry standard 1.5" NPT pipe thread, and there's a safety catch that's integrated to prevent accidental removal during installation. - Key Features
-
- Universal mounting interface supports ultra short throw and short throw projectors weighing up to 55 lb
- Position of the projector can be adjusted from 7.5 to 30" from the wall by simply sliding it along the mounting arm
- Can be fixed to a single timber stud or masonry walls
- Simple installation process with easy "hook-in-place" attachment
- Mounting head offers +/-20° tilt, +/-5° roll, and 360° pan adjustment
- Support arm can be adjusted by +/-5° to account for wall slope or individual projector characteristics
- Security screws at connection and adjustment points for safety in public environments
- Integrated cable management system
- 7mm of level adjustment to compensate for uneven projector surfaces
- Industry standard 1.5" NPT pipe thread
- Safety catch that's integrated to prevent accidental removal during installation
UPC: 881493008038 In the Box Atdec Telehook ProAV Ultra-Short Throw & Short Throw Projector Wall Mount Installation Guide Mounting Hardware for Single Timber Stud and Masonry Installation Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Telehook ProAV Ultra-Short Throw & Short Throw Projector Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtdec TH-PS-S Specs | Supported Projector Type | Ultra-Short Throw and Short Throw Projectors Weighing Up to 55 lb / 25 kg | | Distance from Wall | 7.5 to 30" / 19 to 76 cm from Wall | | Tilt Adjustment | Arm: +/-5°
Mount: +/-20° Depending on Where the Projector is Mounted Along the Support Arm and If the Projector Extends from Center of the Mount More than 8" / 20 cm, the Tilt Adjustment on the Mount May be Reduced. | | Pan Adjustment | 360° | | Roll Adjustment | Mount: +/-5° | | Material of Construction | Steel and Aluminum | | Color | Silver | | Dimensions | Depth (from Base to End of Arm): 33.7" / 86 cm
Height (from Bottom to Top of Base): 5.7" / 14 cm |
