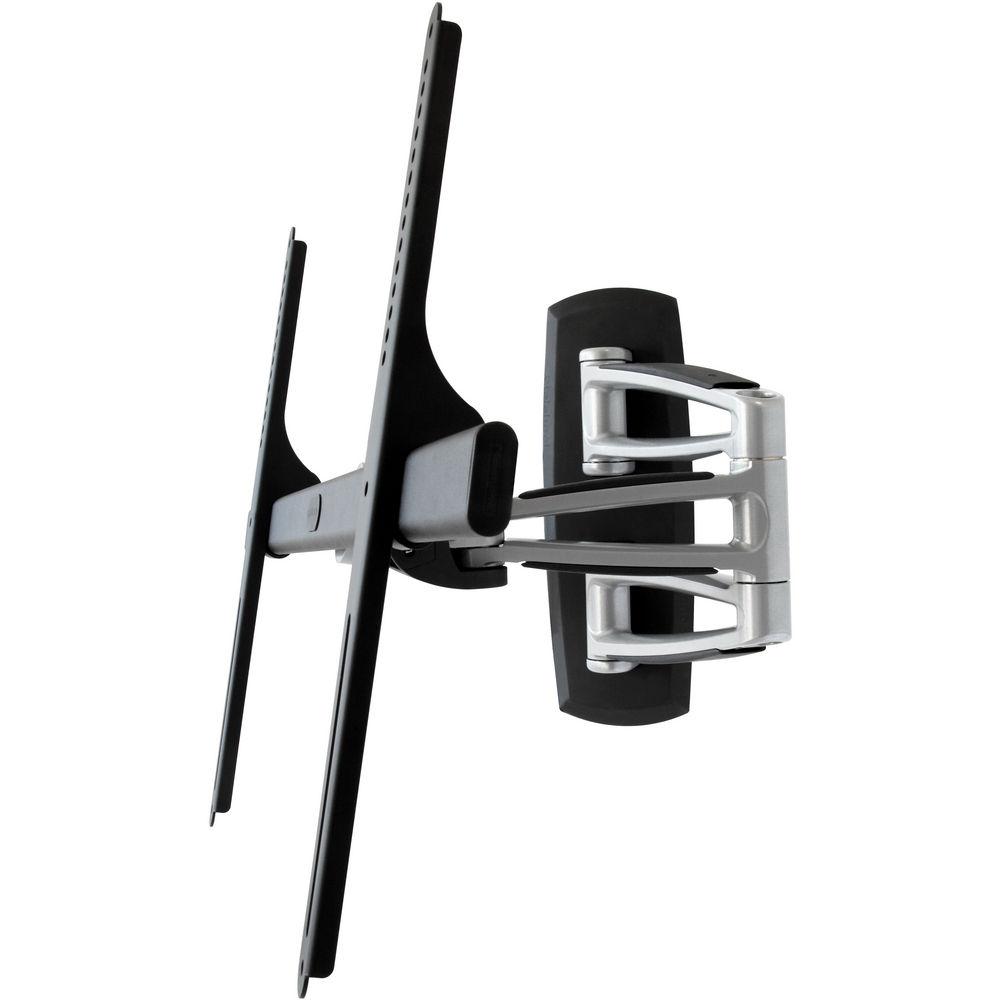

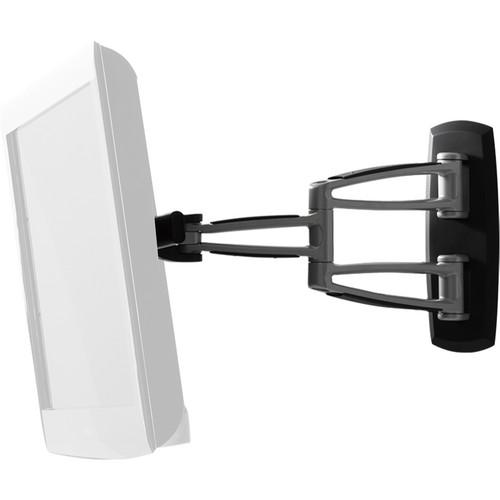

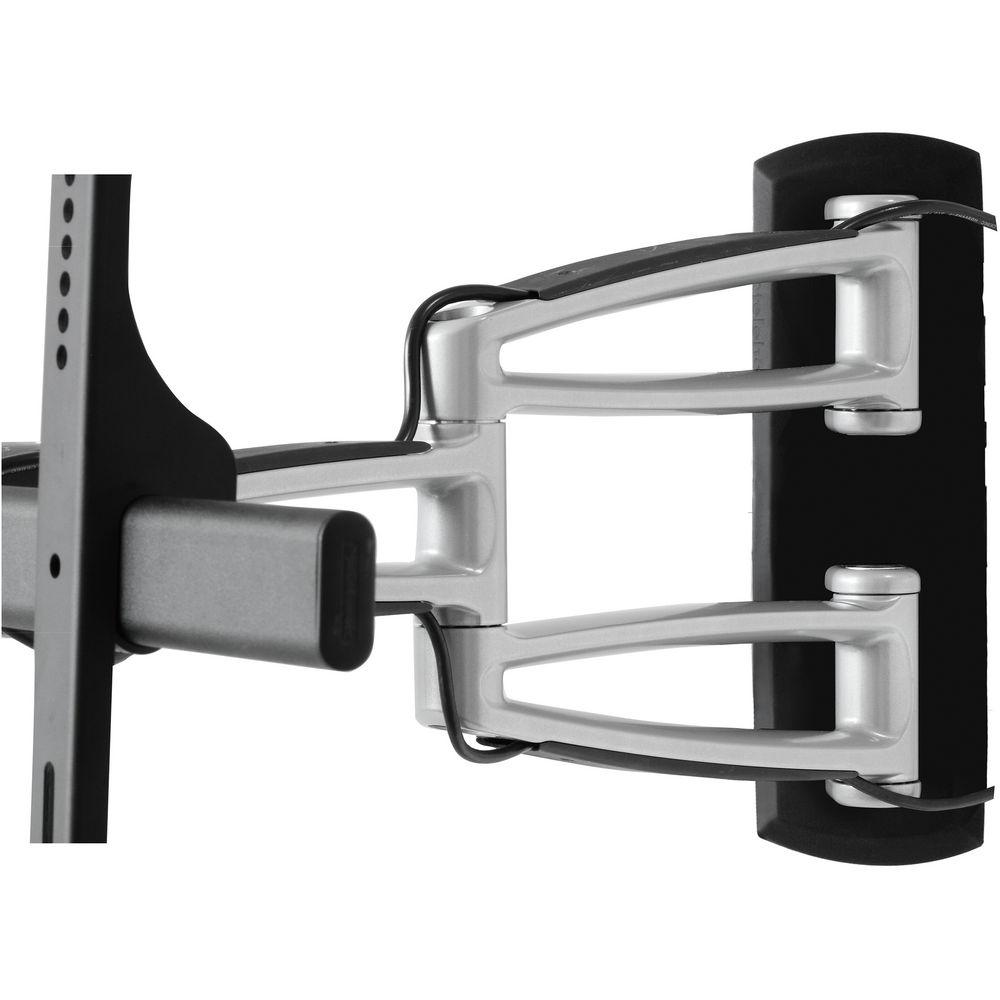

Product description The Atdec Telehook TH-3270-UFM Full Motion Flat Screen Wall Mount provides a flexible solution for attaching a large LED, LCD, or Plasma screen to a wall. The articulated arm allows for a relatively flush seated position with adjustment for arm extension and pan. It features Atdec’s Smooth Glide technology to ensure easy operation with heavy TVs and digital signage units. The display head allows tilt adjustment and features load assistance for smooth and comfortable operation. The high-quality finish, integrated cable management, and hidden mounting points make this product suitable for both home and commercial use.
This wall mount comes with an arm unit and mounting plate, which affixes to the wall along with a bracket, which attaches to the display using the hardware included in the pack. The bracket features universal adjustment to accommodate a wide range of screens with either VESA or non-standard mounting hole patterns. After cabling, the display can be lifted, slotted, and secured into place with a locking screw. For situations where the screen is being used as a display device, the mount allows display installation in either a landscape or portrait orientation. The mount is designed for installation on solid timber or masonry wall structures and comes with all required hardware. Note: Due to the spring loading on the tilt mechanism this mount is most comfortably operated with displays which weigh over 33 lb (14.97kg). The mount is not suitable for installation on a dry wall. - Suits a wide range of installation and usage situations
- Suits displays up to 143 lb (65kg)
- Allows display installation in either a landscape or portrait orientation
- Comes pre-assembled with installation templates to reduce set-up time
- Articulated design enables a centralized seated position with wall extension from 6.1 to 25" (155 to 635mm)
- Universal mounting hole pattern support
- Smooth Glide technology for effortless user adjustment
- Allows 180° rotation at the wall, 360° at the articulation, and 180° at the display head
- Detachable mounting head enables easy installation and maintenance with a security screw (provided) to deter unauthorized removal
- Spring-assisted tilt mechanism
- Allows tilt adjustment from -10 to 20° with spring loading for easy user operation
- Allows ±5° horizontal adjustment for screen leveling
- Integrated cable management
- Strong die cast aluminum arm
- Comes with mounting hardware to enable timber stud wall installation
- Silver finish with black trim
UPC: 881493004658 In the Box Atdec Telehook TH-3270-UFM Full Motion Flat Screen Wall Mount Security Screw Installation Templates Display Mounting Hardware Hardware for Attachment to Timber Stud & Masonry Walls Limited 10-Year Warranty on Parts and Labor Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Atdec Telehook TH-3270-UFM Full Motion Flat Screen Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atdec Telehook TH-3270-UFM Full Motion Flat Screen Wall Mount can be downloaded in PDF format at the link stated below.
Technical parametersAtdec TH-3270-UFM Specs | | | Supported Screen Sizes | Up to 32" / 81.3 cm | | Supported Weight Capacity | 143 lb / 65 kg | | Mounting-Hole Pattern | 200 x 100 to 800 x 400 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -20 to +10
