User Manual for Atech Flash Technology Blackjet VX-2SSD USB 3.1 Gen 2 Type-C RAID Enclosure Click to enlarge the picture
Contents of the user manual for the Atech Flash Technology Blackjet VX-2SSD USB
- Product category: Hard Drive Enclosures & Docks Atech Flash Technology
- Brand: Atech Flash Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atech Flash Technology Hard Drive Enclosures & Docks
 |
User manual for the Atech Flash Technology Blackjet VX-2SSD USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atech Flash Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atech Flash Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atech Flash Technology product will considerably shorten its lifespan!
|

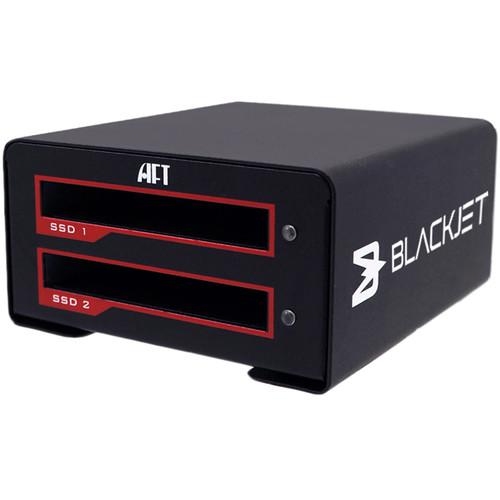

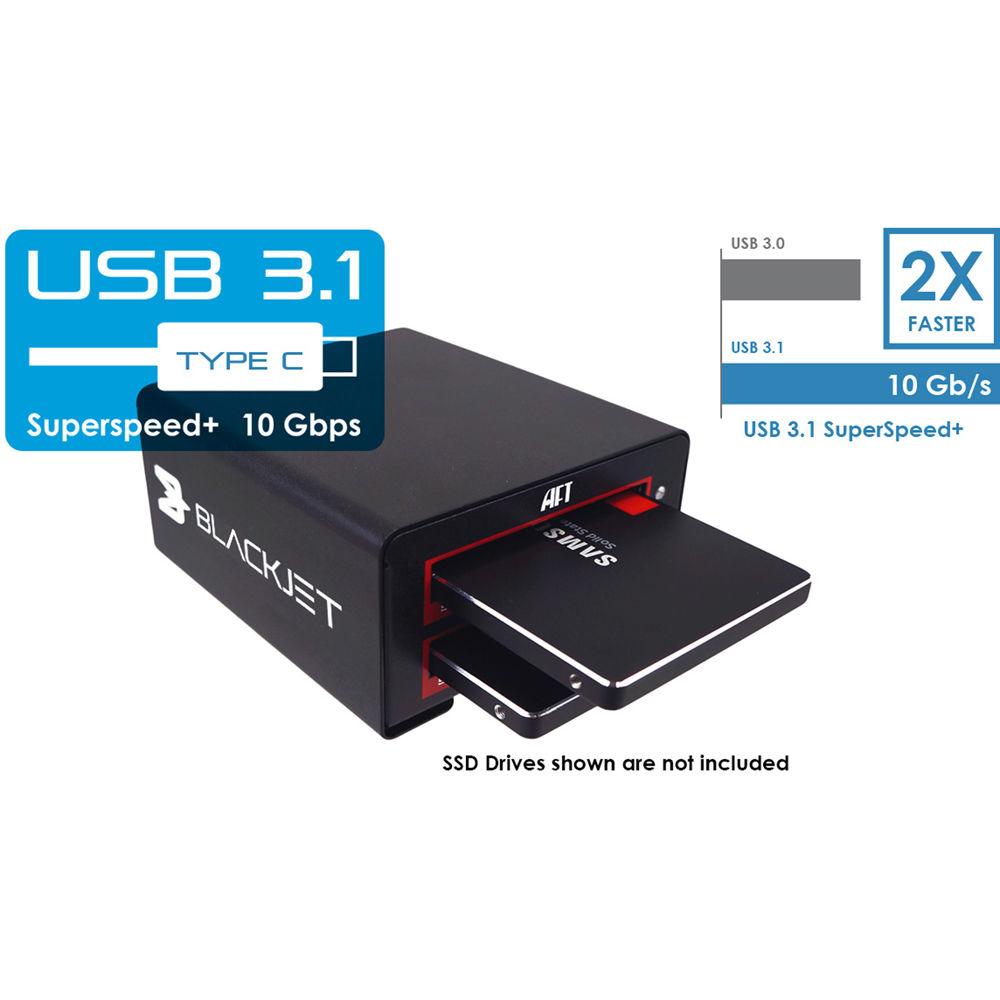

Product description Ingest, edit, or archive your media footage on Windows 10, 8, and 7 systems, as well as Mac OS X 10.5 and later systems that support 10 Gb/s USB 3.1 (USB 3.1 Gen 2) or Thunderbolt 3 using the Blackjet VX-2SSD USB 3.1 Type-C RAID Enclosure from Atech. It is equipped with a USB 3.1 Type-C interface and dual 2.5" SATA III 6 Gb/s drive bays that support 7mm and 9.5mm SSDs. The Blackjet VX-2SSD uses a hardware controller to drive RAID 0, for those who need maximum performance without any data redundancy, or RAID 1, for those who need 1:1 data redundancy and mirroring, at the cost of speed and capacity. For those who do not require a RAID, JBOD is also available and is configured to act as independent disks or volumes. Included are a USB 3.1 Type-C to USB 3.1 Type-C cable, a power adapter, and a RAID selector pin. Protection is provided by a limited 1-year warranty. General Features - USB Type-C interface with 10 Gb/s USB 3.1 data transfer speeds, which is also known as USB 3.1 Gen 2

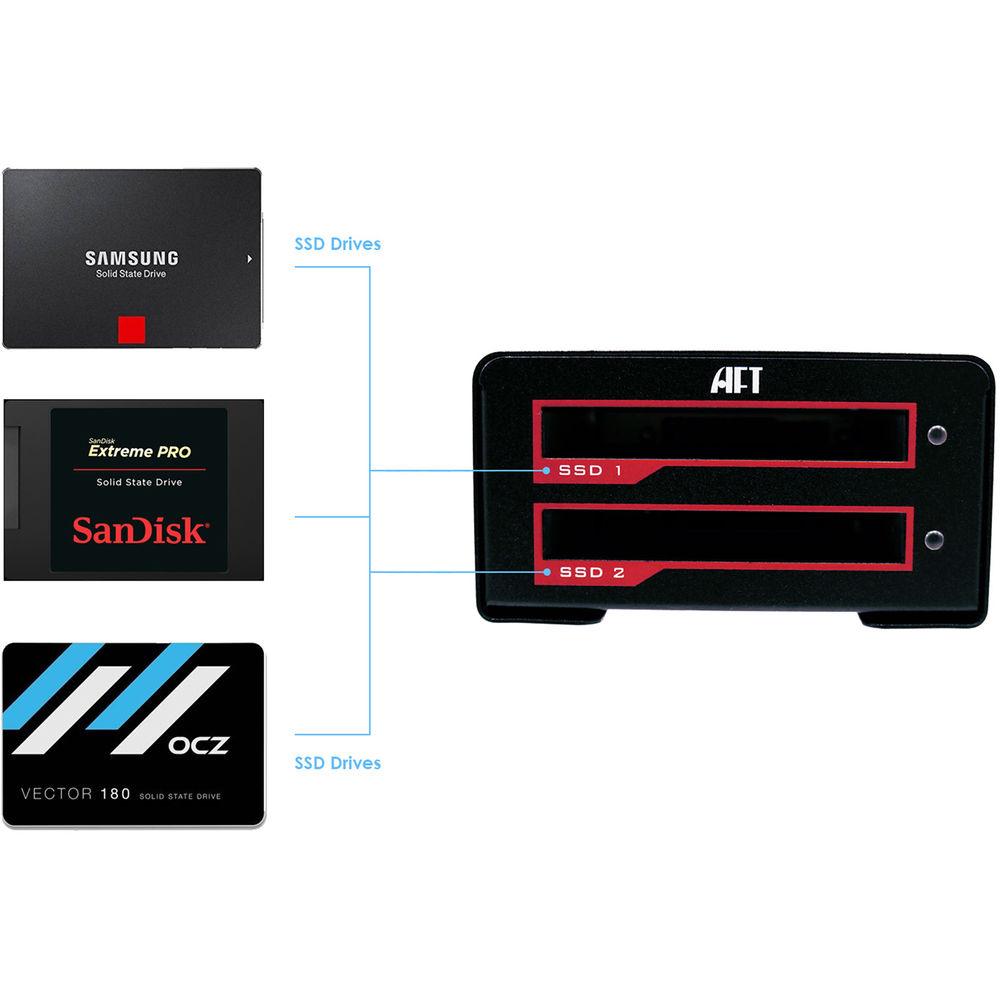

- Dual SSD slots allows you to increase your workflow
- UASP support optimized for SATA III 6 Gb/s SSDs up to 9.5mm in height
- External use with an included USB 3.1 Type-C cable
- Industrial housing for durability
- Compatible with Thunderbolt 3

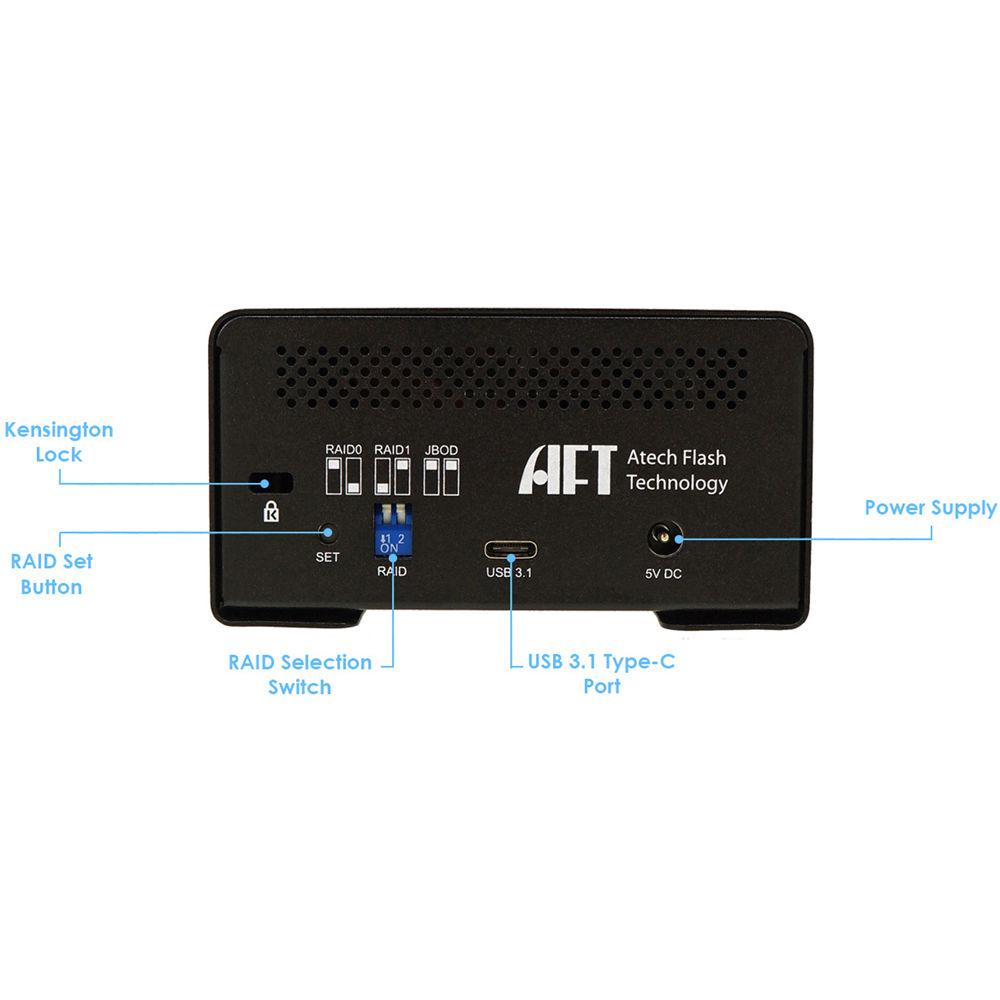

Hardware RAID Settings - RAID 0 (Striped)
- RAID 0 is for users that require maximum performance. It does not offer any protection and backups are highly recommended
- RAID 1 (Mirrored)
- RAID 1 is for users that require a backup solution. It offers disk mirroring for redundancy and backup
- JBOD (Just a Bunch of Disks)
- JBOD is for users that require maximum storage. It can be configured to act as independent disks or volumes
UPC: 655408280150 In the Box Atech Flash Technology Blackjet VX-2SSD USB 3.1 Gen 2 Type-C RAID Enclosure USB 3.1 Type-C to USB 3.1 Type-C Cable Power Adapter RAID Selector Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atech Flash Technology Blackjet VX-2SSD USB 3.1 Gen 2 Type-C RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtech Flash Technology Blackjet VX-2SSD Specs | Number of Bays | 2 x 2.5" | | Maximum 2.5" SATA Drive Height | 9.5 mm | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, JBOD | | UASP Support | Yes | | Operating System Support | Windows, macOS/OS X | | | | Power Source | AC Adapter | | DC Input Power | 5 VDC | | | | Encryption | None | | Security Features | Kensington Security Slot | | | | Status Monitoring | None | | Dimensions (W x H x D) | 4.6 x 2.2 x 4.0" / 116.0 x 56.0 x 102.0 mm | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.0 x 7.5 x 2.5" |
