User Manual for ATEN 16-Port Cat5 Dual Rail LCD KVM over IP Switch with Rackmount Kit Click to enlarge the picture
Contents of the user manual for the ATEN 16-Port Cat5 Dual Rail LCD
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN 16-Port Cat5 Dual Rail LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

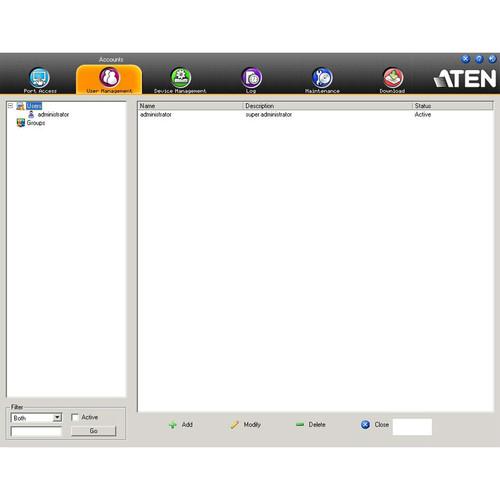

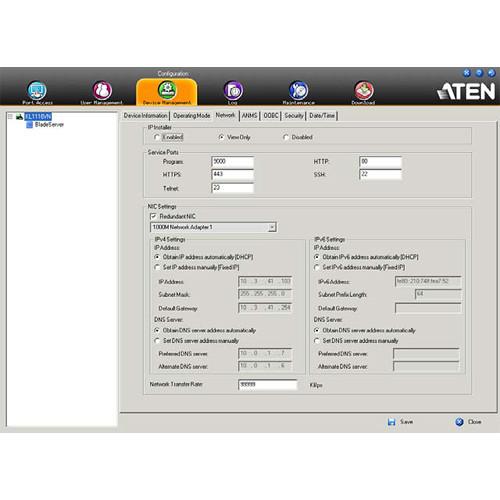

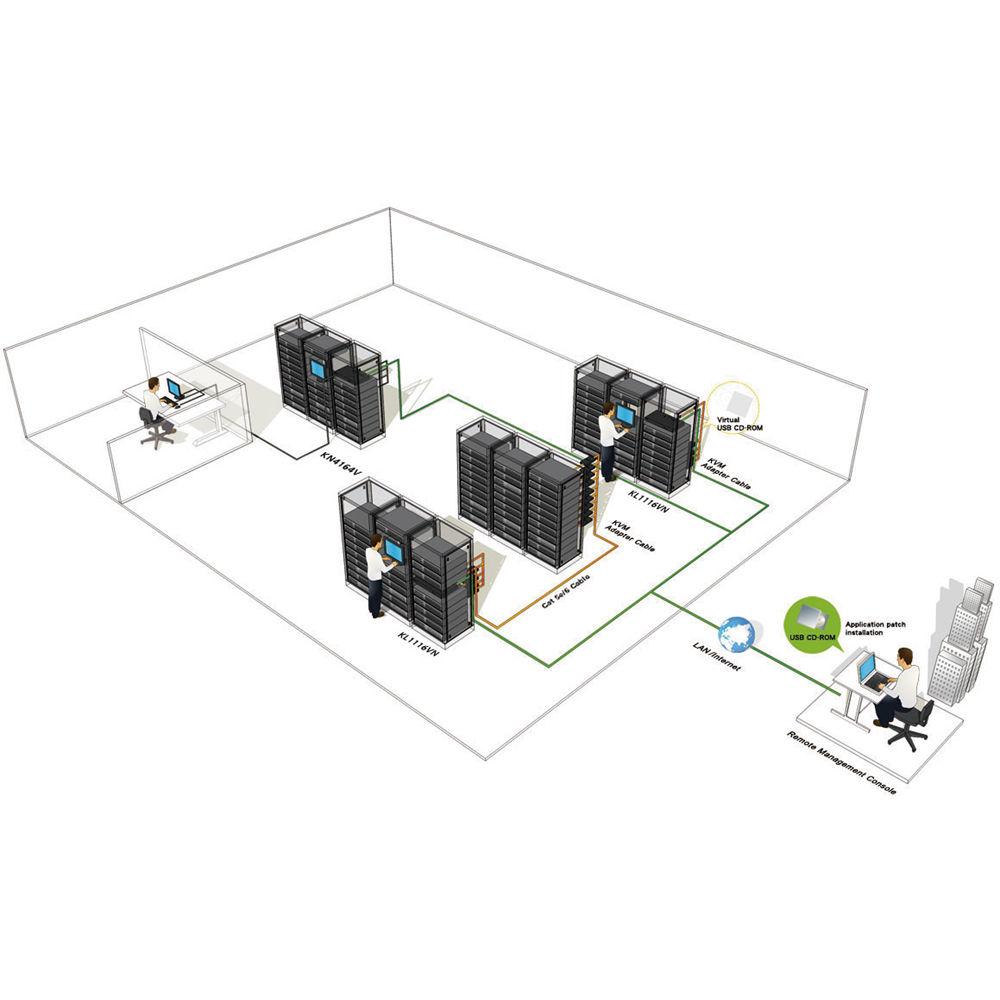

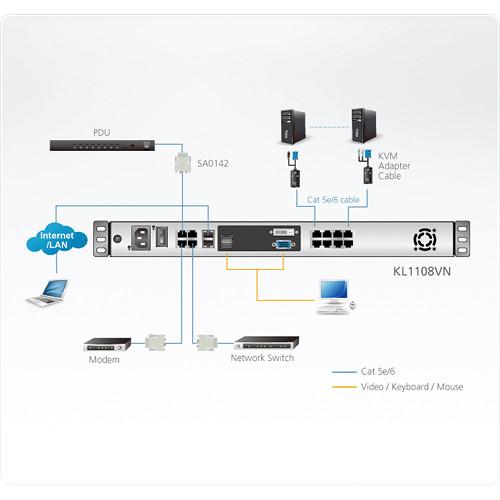

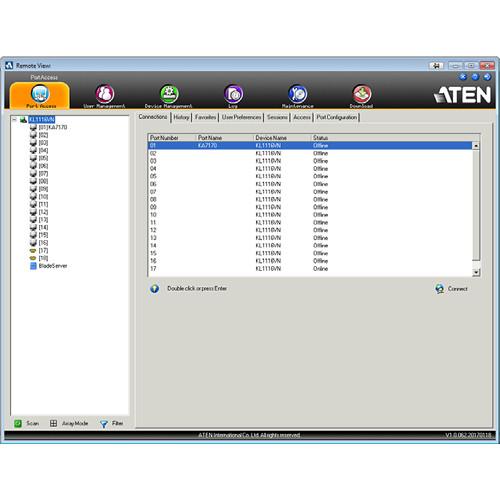

Product description Provided by third party: ATEN's KL1116VN 16-port Cat 5 dual rail LCD KVM over IP switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1116VN switches allow local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. To help manage and control an entire data center, the KL1116VN KVM over IP switches support blade servers and chassis with powerful features such as Power Association which allows KVM ports to be associated with ATEN PDU power outlets for power management of servers from the KVM switches' user interface. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system is recorded and saved to a secure video file as evidence, without exception. The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers - allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
- Key Features
-
- High-grade security - supports FIPS 140-2 level 1 security standards
- Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
- Faster virtual media transmission speeds
- Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

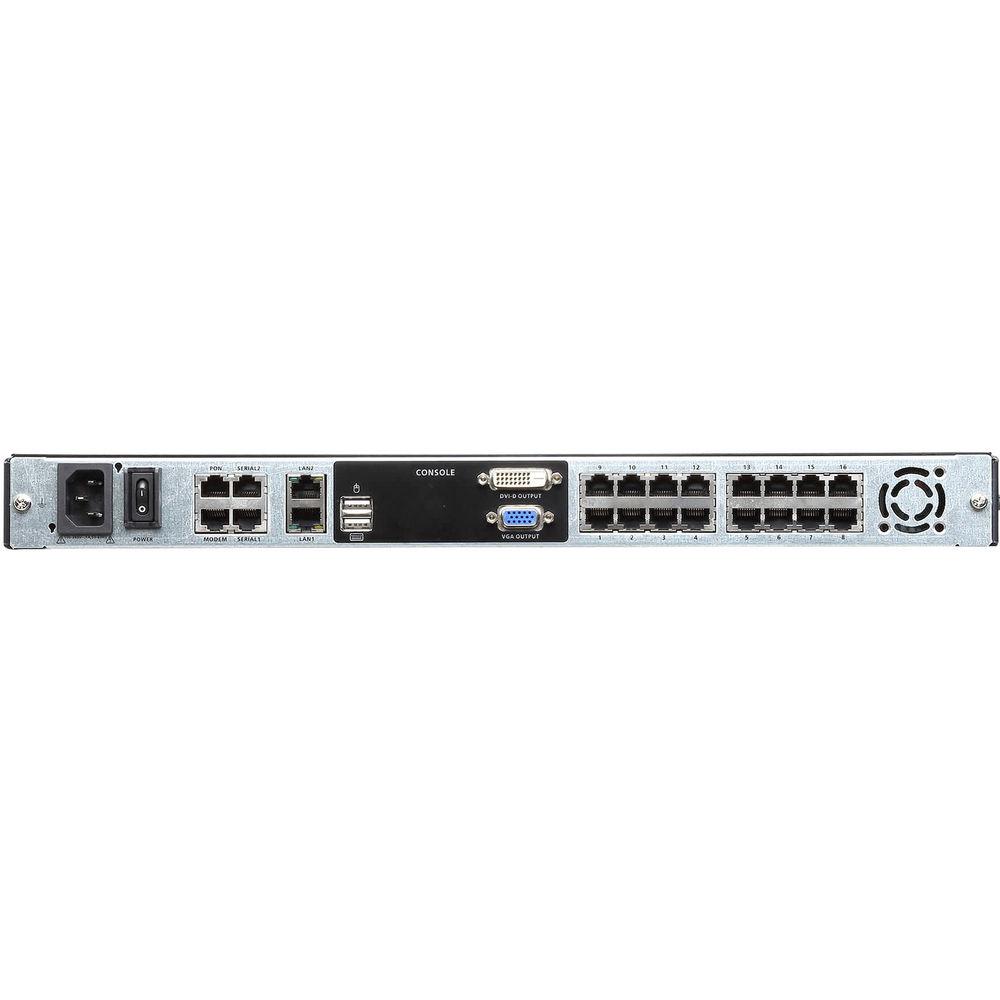

- Space-saving RJ-45 ports for Cat 5e/6 cable connections
- KVM adapter cables with automatic conversion allow flexible interface combinations to control all computer types
- Extra console ports - manage computers from the built-in LCD screen or an external console setup
- Supports external USB mouse
- Dual rail housing - allows the LCD monitor to slide independently of the keyboard and touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock enables the console drawer to remain securely locked away when not in use
UPC: 672792403866 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 16-Port Cat5 Dual Rail LCD KVM over IP Switch with Rackmount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KL1116VN Specs | | | Display Type | KVM console | | Diagonal Size | 19" | | Built-In Devices | 16-port KVM switch | | Aspect Ratio | 5:4 | | Native Resolution | 1280 x 1024 at 75 Hz | | Pixel Pitch | 0.294 mm | | Brightness | 250 cd/m
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
