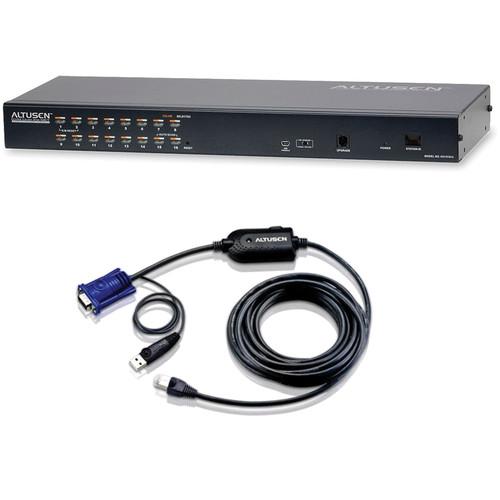

Product description Multi-Monitors: Maximizing Multitasking Read More The 16-Port KVM over IP Switch with Cables from ATEN allows local and remote operators to monitor an access their enterprise date center over the internet. Included with the switch are 12 USB adapter cables for connecting the KVM switch to the video and USB ports of the target computers. - KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) The KA7970 USB KVM Adapter Cable from ATEN is designed to act as a connector between the KVM switch and the video and USB ports of the target computer. The cable features keyboard and mouse emulation and is compatible with most rack-mount and desktop servers.
- Keyboard and mouse emulation
- Lifetime firmware upgrades
UPC: 672792400544 - KH1516Ai 16-port Cat 5 High-Density KVM Switch with Kit (Over IP) The KH1516Ai 16-port Cat 5 High-Density KVM Switch with Kit (Over IP) from ATEN is a control unit which allows administrators and users to access and control multiple computers from a single PS/2 or USB KVM console. The KH1516Ai allows for 16 computer connections and control for up to 256 computers via daisy chaining. The switch's over IP capability allows data to be accessed from the control center or over the internet using a web-based browser. The KVM switch was designed to enable administrators to manage their entire server room and data center devices conveniently and, when needed, remotely.
-
- One KVM console controls up to 16 directly connected computers, or via daisy chaining up to 15 additional units controls up to 256 computers from a single console
- Dedicated USB port directly connects to a laptop for easy console operation
- Local console provides PS/2 and USB keyboard and mouse support
- Allows up to 64 user accounts with up to 32 users simultaneously sharing control
- End session feature controlled by administrator
- Event logging and Windows-based Log Server support, as well as local log event
- Multilanguage interface
- Panel Array Mode
- Keyboard broadcast
- Supports L RADIUS, LDAP, LDAPS, and MS Active Directory
- Flexible encryption design
- Mouse DynaSync™
- Exit Macros supportBIOS-level access
- Adapter ID, Firmware upgradeable, and IPv6 capable
UPC: 672792400384 In the Box Bundle Items 12 x KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module) KH1516Ai 16-port Cat 5 High-Density KVM Switch with Kit (Over IP)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 16-Port KVM over IP Switch with Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - KA7970 USB KVM Adapter Cable with Cat5e Cable (15') (CPU Module)
| Connectors | Link: RJ-45 Female
Mouse/Keyboard to Computer: USB Male
VGA to Computer: HDB-15 Male | | LEDs | On Line: 1 (Orange) | | Video Distance | Not Specified by Manufacturer | | Housing | Plastic | | Dimensions | 3.1 x 1.5 x 0.6" (7.9 x 3.7 x 1.6 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 6.2 x 4.8 x 2.4" | - KH1516Ai 16-port Cat 5 High-Density KVM Switch with Kit (Over IP)
| Max Computer Connections | Direct: 16
Maximum: 256 (via daisy chain) | | Console Port Connectors | Keyboard: 1 x 6-pin mini-DIN Female (Purple); 1 x USB Type A Female (White)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x 6-pin mini-DIN Female (Green); 1 x USB Type A Female (White) | | Connectors | KVM Ports: 16 x RJ-45 Female
Daisy Chain Ports: 1 x DB-25 Male (Black)
Power: 1 x 3-prong AC socket
F/W Upgrade: 1 x RJ-11 Female (Black)
LAN: 1 x RJ-45 Female
PON: 1 x RJ-45 Female
Laptop USB Console Port: 1 x USB Mini Type B Female (Black) | | Switches | Reset: 1 x Semi-recessed push-button
Power: 1 x Rocker
Port Selection: 16 x Push-button | | LEDs | On Line: 16 (Green)
Selected: 16 (Orange)
Power: 1 (Blue)
Station ID: 1 x 7-segment (Orange)
Link: 1 (Orange)
10/100 Mbps: 1 (Orange/Green) | | Emulation | Keyboard/Mouse: PS/2; USB | | Video Resolution | 1600 x 1200 @ 60 Hz(40 m); 1280 x 1024 @ 75 Hz (50 m with KA7xx adapter cable)
Remote: 1600 x 1200 @ 60 Hz | | Scan Interval | 1-255 sec | | Input Rating | 100 to 240 VAC; 50/60 Hz; 1A | | Power Consumption | 120 V 12.5 W; 230 V / 12.7 W | | Port Selection | On Screen Display, Hotkeys, Push-buttons | | Housing | Metal | | Supported Operating Systems | Windows, Mac, Sun, and Linux | | Dimensions (L x W x H) | 17.2 x 6.4 x 1.7" (43.7 x 16.4 x 4.4 cm) | | Weight | 6.2 lb (2.8 kg) | | | | Box Dimensions (LxWxH) | 21.4 x 10.9 x 5.4" |
