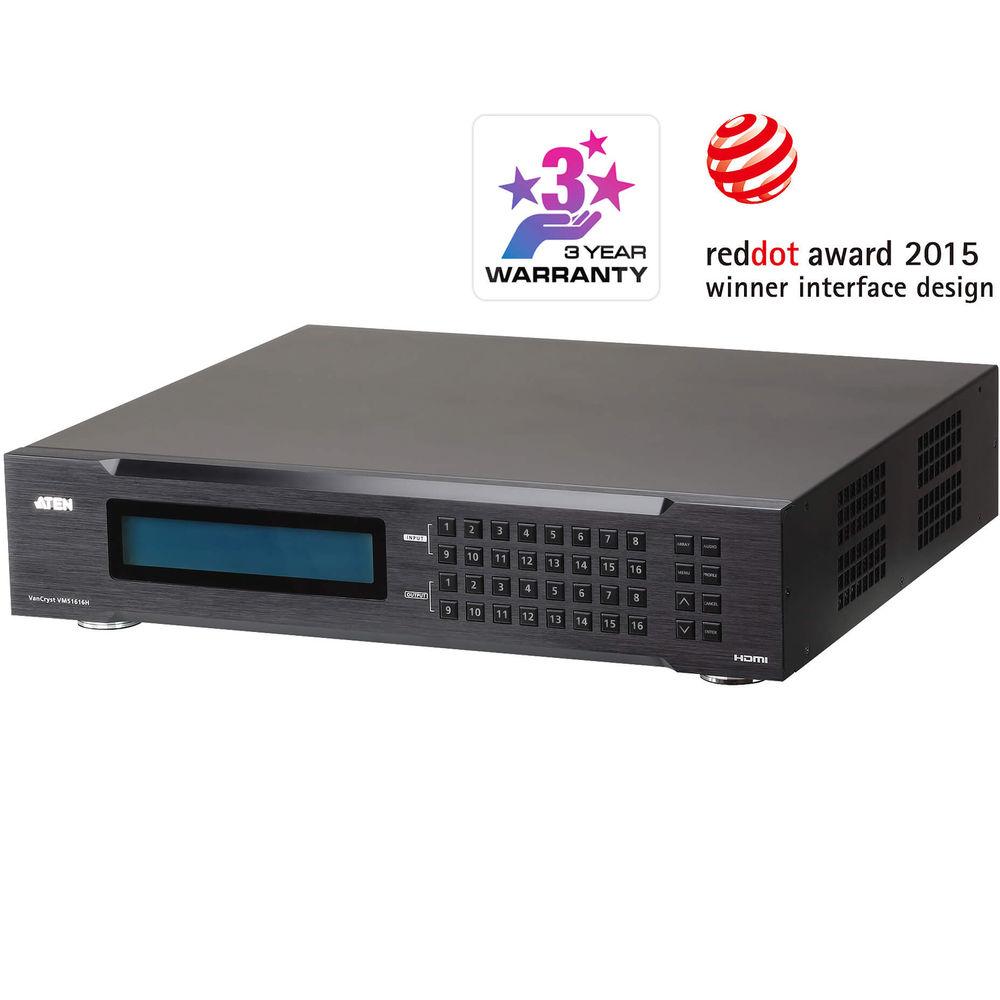

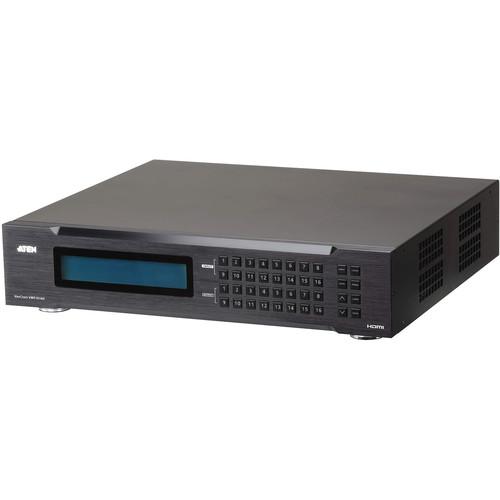

Product description The ATEN 16 x 16 HDMI Matrix Switch with Scaler is an all-in-one professional solution for routing up to 16 HDMI video and audio sources to any 16 HDMI outputs with resolutions up to 1920 x 1080p. It is well-suited to railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, and security management. The 16 x 16 modular matrix allows you to create up to 32 connection profiles for customized video wall layouts.
Control of the unit is done via front panel push buttons, RS-232, or Ethernet using the built-in GUI or Telnet. The switch can scale your input video to match your output video, and the seamless switching mode features a near zero-second switch time for stable signal transmissions. The switch supports EDID, allowing you to send the signal to HDMI devices. It is rack mountable and offers ESD protection. - The signal from one input can be sent to a single output, all 16 outputs, or any number of outputs in between. Multiple inputs can be assigned to multiple outputs.
- A built-in scaling function allows you to scale the input source to match the output device.
- Switching between sources happens extremely fast without disturbing your live stream or causing an unstable broadcast feed.

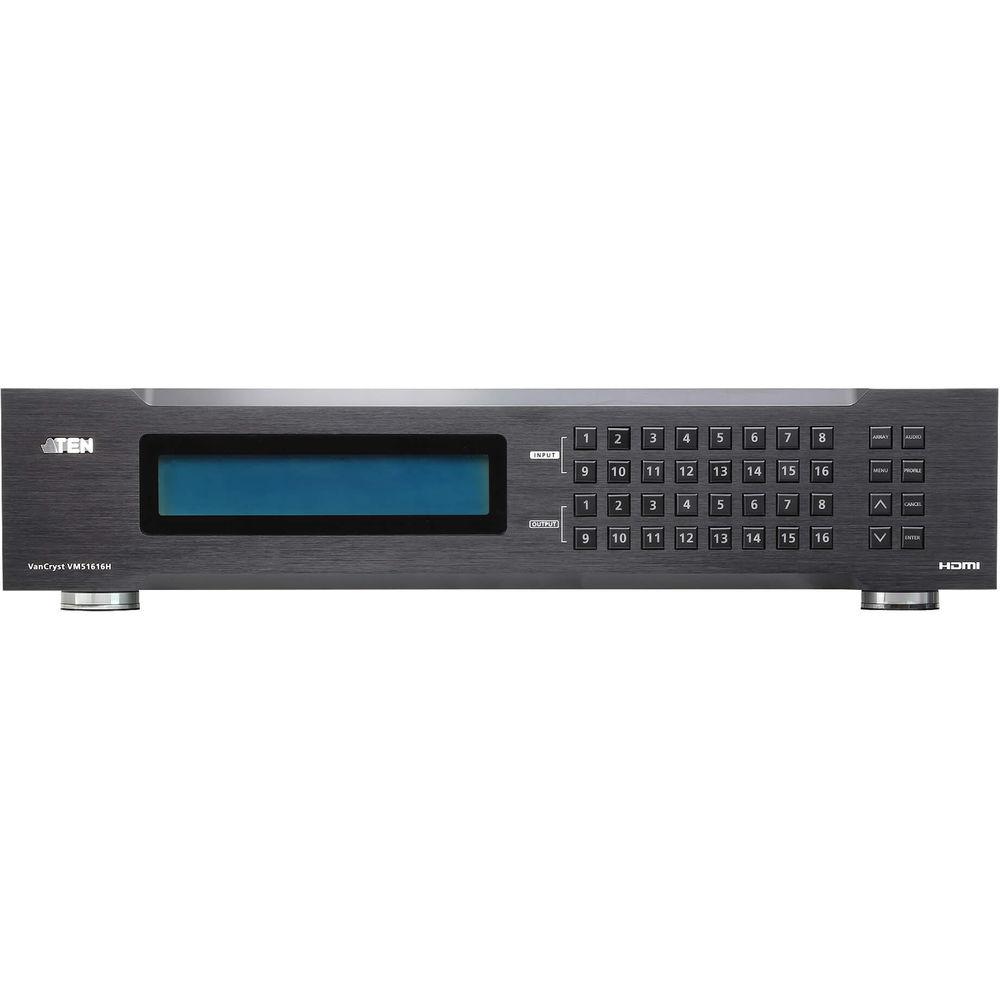

- Control of the unit is done via front-panel push buttons, RS-232 control, or Ethernet connector.
- You can create and store up to 32 different configurations for creating video wall displays.
- The HDMI ESD (Electro Static Discharge) protection keeps the switch working smoothly even when hot plugging and unplugging the HDMI cables.
- A local HDMI output enables multiple previews of up to 16 sources.
- Please Note: When Seamless Switch is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch.
In the Box ATEN 16 x 16 HDMI Matrix Switch with Scaler AC Power Cord Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 16 x 16 HDMI Matrix Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

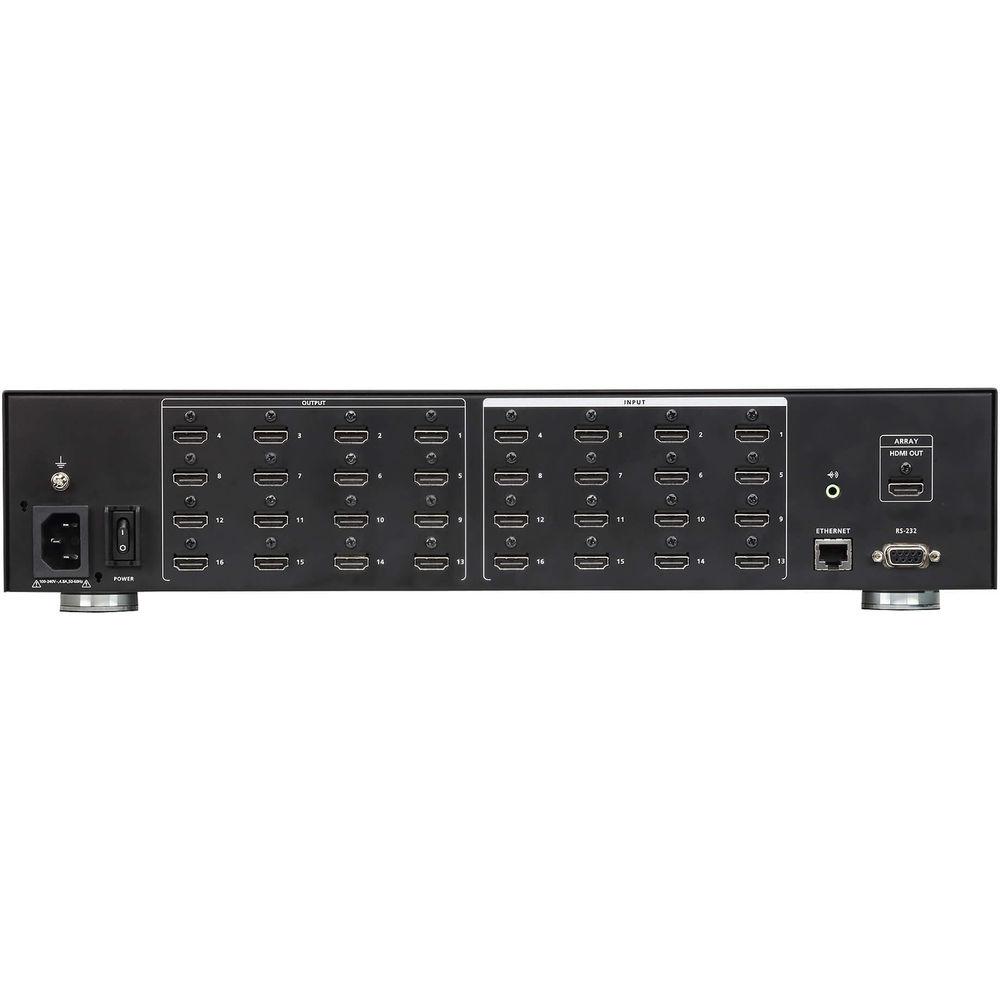

Technical parametersATEN VM51616H Specs | Video Input | Connectors: 16 x HDMI Type A
Impedance: 100 Ohms
Max Distance: 16.40' / 5.00 m | | Video Output | Connectors: 16 x HDMI Type A
Impedance: 100 Ohms
Max Distance: 49.21' / 15.00 m | | Video | Max Data Rate: 6.75 Gb/s (2.25 Gb/s per Lane)
Max Pixel Clock: 225 MHz
Compliance: HDMI (3D, Deep Color), HDCP 1.4 Compatible, Consumer Electronics Control (CEC)
Max Resolution: 1080p | | Audio | Output: 1 x Stereo Mini Jack (Green) | | Control | RS-232
Connector: 1 x DB-9 Female
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No
Ethernet
Connector: 1 x RJ45 (Female) | | EDID | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) | | Power | On/Off Switch: 1 x Rocker
Connector: 1 x 3-Prong (Socket)
Power: 100 to 240 VAC, 50/60 Hz
Draw: 1 A
Consumption 110V: 124.5 W
Consumption 220V: 121.8 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% Relative Humidity, Non-Condensing | | Rack Height | 2U | | Dimensions | 17.02 x 15.03 x 3.46" / 43.23 x 38.18 x 8.79 cm | | Weight | 17.31 lb / 7.85 kg |
