Product description - The ATEN's Seamless Switch™ is the leader in the professional audio/video switching technology

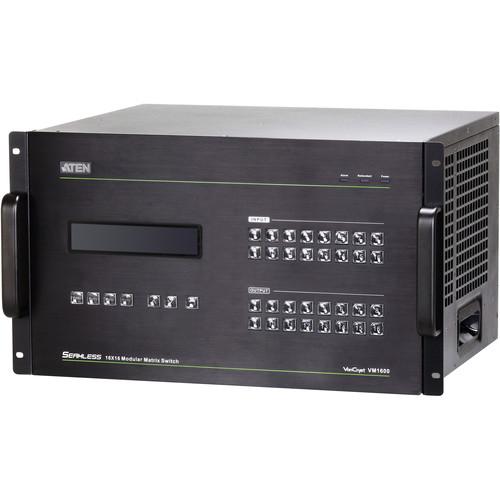

The VM1600 16x16 Modular Matrix Switch from Aten provides advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The switch allows you to independently route video and audio content directly to various monitors, displays, projectors, and speakers. A built-in scaler encodes the video format for seamless real-time switching, and there is an EDID mode for the best resolution across different monitors. The Modular Matrix Switch also features a front panel LCD for a quick view of active port connections. UPC: 672792005343 In the Box ATEN 16x16 Modular Matrix Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 16x16 Modular Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM1600 Specs | Connectors | Ethernet: 1 x RJ-45 female
RS-232: 1 x DB-9 female
RS-485 / RS-422: 1 x captive screw connector, 5 pole
Power: 1 x 3-prong AC socket
LCD: 1 x LCD module | | Buttons or Switches | Input: 16 x pushbuttons
Output: 16 x pushbuttons
Video: 1 x pushbutton
Audio: 1 x pushbutton
Menu: 1 x pushbutton
Profile: 1 x pushbutton
Up: 1 x pushbutton
Down: 1 x pushbutton
Cancel: 1 x pushbutton
Power: 1 x rocker switch | | LED Indicator | 1 x alarm
1 x redundant
1 x power | | I/P Rating | 100 to 240 VAC, 50 to 60 Hz, 1.0 A | | Power Consumption | 120 V, 180 W; 230 V, 172 W | | Operating Temperature | 32 to 104°F / 0 to 40°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Housing | Metal | | Dimensions | 0.7 x 0.6 x 0.4" / 1.9 x 1.6 x 1.0 cm | | Weight | 37.5 lb / 17.0 kg | | | | Package Weight | 42.65 lb | | Box Dimensions (LxWxH) | 24.0 x 20.0 x 15.0" |
