User Manual for ATEN 19" 8-Port LCD USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 19" 8-Port LCD USB KVM
- Product category: LCD KVM Consoles ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN LCD KVM Consoles
 |
User manual for the ATEN 19" 8-Port LCD USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

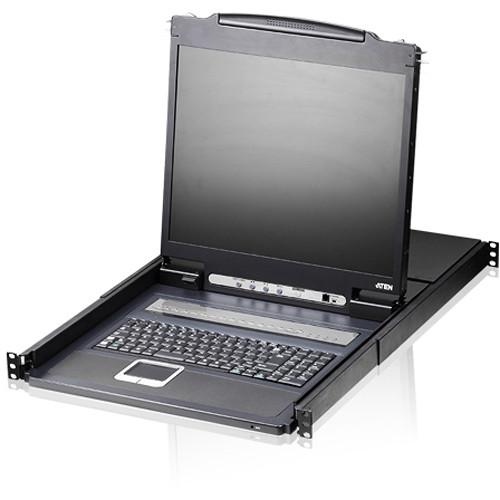

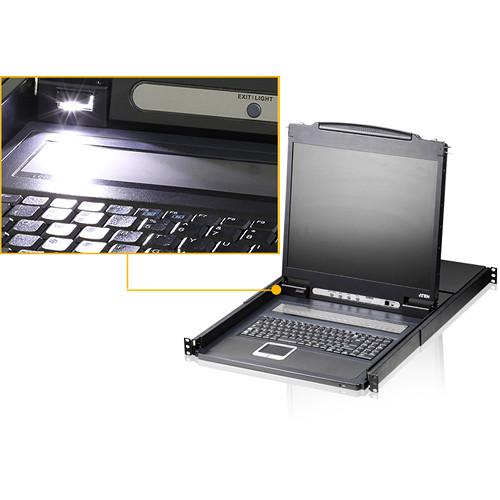

Product description The 19" 8-Port LCD USB KVM Switch from Aten features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. LCD KVM switch offers a space-saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing. Features - LED illumination light illuminates the keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 128 computers by cascading to two levels and connect up to 8 switches.
- Integrated KVM console with 19" LED-backlit LCD panel
- Dual interface supports computers with PS/2 or USB keyboards and mice
- Multi-platform supports Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac, and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation computers boot even when the console focus is elsewhere
- Video quality up to 1280 x 1024 at 75 Hz, (DDC2B)
- Convenient computer switching via front panel push buttons, hotkeys, or multi-lingual On-Screen Display (OSD) menu
- Two-level password security-only authorized user's view and control computers. Up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode operations simultaneously performed on all selected computers
- Hot-pluggable add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
Advantages - Reduce space and cost requirements with streamlined, space-saving design.
- Provides flexibility for expanding servers installation.
- Enhanced security with two-level password access for authorized personnel.
- Improved server maintenance quality and reduced maintenance time
- Supports wide range OS platforms and I/O peripherals.
UPC: 672792402555 In the Box ATEN 19" 8-Port LCD USB KVM Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 19" 8-Port LCD USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CL1308N Specs | Computer Connections | Direct: 8

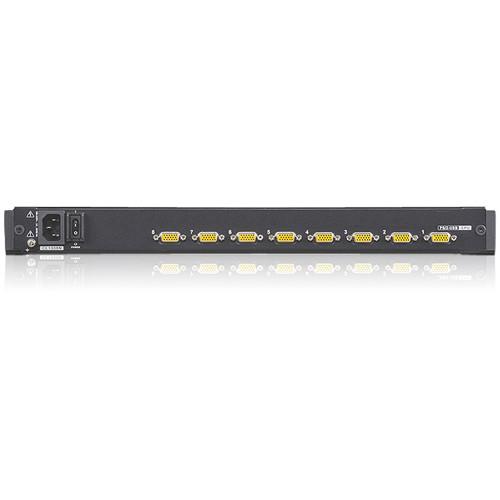

Maximum: 128 (via Cascade) | | Port Selection | OSD, Hotkeys, Push buttons | | Connectors | KVM Ports: 8 x SPHD-17 Female (Yellow)
FW Upgrade: 1 x RJ-11 Female (Black)
Power: 1 x 3-prong AC Socket (IEC60320/C14) | | Switches | Reset: 1 x Semi-recessed Pushbutton
Power: 1 x Rocker
FW Upgrade: 1 x Slide
LCD Control: 4 x Pushbutton
LCD On/Off: 1 x Pushbutton
Port: 8 x Pushbutton | | LEDs | Online: 8 (orange)
Selected: 8 (green)
Power KVM: 1 (dark green)
Power LCD: 1 (orange)
Lock Num: 1 (green)
Lock Caps: 1 (green)
Lock Scroll: 1 (green) | | Emulation | Keyboard/Mouse: PS/2, USB | | Video Resolution | 1280 × 1024 at 75 Hz, (DDC2B) | | Scan Interval | 1 to 255 seconds | | Power | 100 to 240 VAC, 50/60 Hz, 1 A | | Power Consumption | 120 V, 22 W | | Environment | Operating Temperature: 32 to 122°C (0 to 50˚C)
Storage Temperature: -4 to 140°F (-20 to 60˚C)
Humidity: 0 to 80% RH, (non-condensing) | | Housing | Metal + Plastic | | Dimension | 19 x 27.1 x 1.7" (48.3 x 68.9 x 4.4 cm) | | Weight | 27.8 lb (12.59 kg) | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 32.5 x 26.5 x 5.5" |
