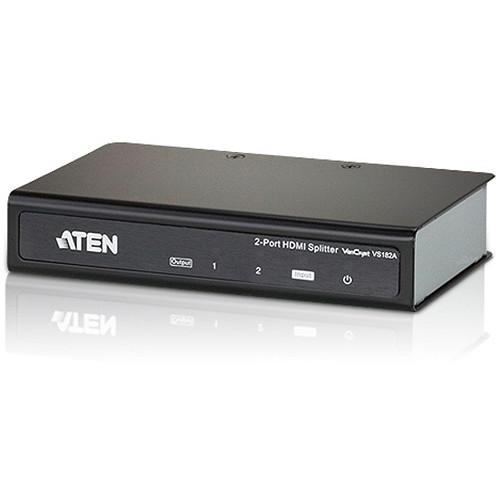

User Manual for ATEN 2-Port HDMI Splitter Click to enlarge the picture
Contents of the user manual for the ATEN 2-Port HDMI Splitter
- Product category: Distribution Amplifiers (DA's) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Distribution Amplifiers (DA's)
 |
User manual for the ATEN 2-Port HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The 2-Port HDMI Splitter from ATEN is the suitable solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theatre applications, as well as in corporate, educational, and commercial settings. - Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, deep, color, 4k x 2k), HDCP Compatible
- Supports resolutions of up to Ultra HD 4k x 2k and 1080p Full HD
- Supports Dolby true HD and DTS HD master audio
- Long distance transmission up to 15m (24 AWG)
- Supports up to 340 MHz bandwidth for high performance video
- Signaling rates up to 3.4 Gb
UPC: 672792004360 In the Box ATEN 2-Port HDMI Splitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2-Port HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

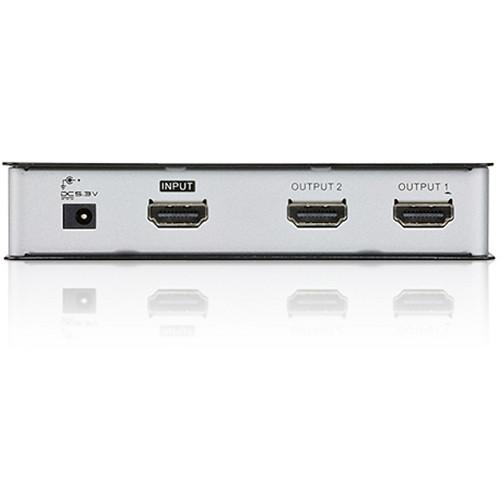

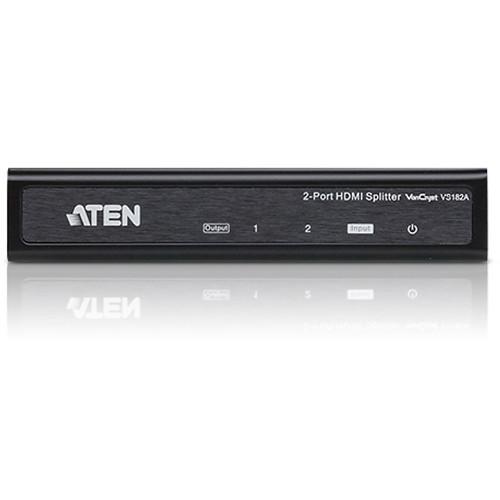

Technical parametersATEN VS182A Specs | | | Device | HDMI In: 1 x HDMI type A female (black) | | Display | HDMI Out: 2 x HDMI type A female (black) | | Power | 1 x DC jack | | LEDs | Power: 1(orange)
Input: 1(green)
Output1:1(green)
Output2:1(green)
Output3/4: | | HDMI Resolution | 4k x 2k, 1080p | | Consumption | 5.3 VDC, 2.0 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 4.9 x 3.1 x 1.0" (12.5 x 8.0 x 2.5 cm) | | Weight | 10.9 oz (309.9 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.4" |
