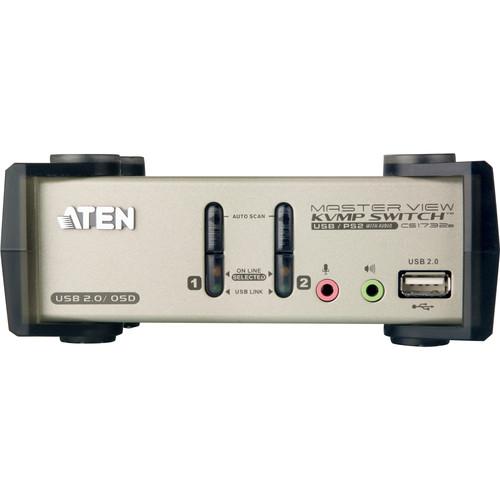

User Manual for ATEN 2-Port USB 2.0 KVMP Switch with OSD Click to enlarge the picture
Contents of the user manual for the ATEN 2-Port USB 2.0 KVMP Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 2-Port USB 2.0 KVMP Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More tevtqceftbwaczfdyuxrbbw The 2-Port USB 2.0 KVMP Switch with OSD from Aten is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. You can obtain instant access to any computer in your installation by Pushbuttons, Hotkeys, OSD, and mouse. - 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls two computers and two additional USB devices
- 2-port built-in USB 2.0 Hub
- Dual interface supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled, full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access, ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality with 2048 x 1536 (DDC2B)
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys, and mouse
- Multiplatform support for Windows, Mac, and Sun
- Console mouse port emulation/bypass feature supports full mouse driver and multifunction mice
- Video DynaSync stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
UPC: 672792112249 In the Box ATEN 2-Port USB 2.0 KVMP Switch with OSD 2 x Custom USB KVM Cable Sets 2 x OSD/Hotkey Stickers Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2-Port USB 2.0 KVMP Switch with OSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1732B Specs | Computer Connections | 2 | | Port Selection | OSD, hotkeys, pushbuttons, mouse | | Connectors | Console Port:
Keyboard: 1 x USB Type A female (black)
Video: 1 x HDB-15 female (blue)
Mouse: 1 x USB Type A female (black)
Speaker: 2 x Mini Stereo Jack female (green)
Microphone: 2 x Mini Stereo Jack female (pink)
KVM Port:
Keyboard/Video/Mouse: 2 x SPHD-15 Female (yellow)
Speaker: 2 x Mini Stereo Jack Female (green)
Microphone: 2 x Mini Stereo Jack Female (pink)
Firmware upgrade: 1 x 4-conductor 3.5mm jack (black)
Power: 1 x DC Jack
USB Hub: 2 x USB Type A female (white) | | Switches | Selected: 2 x Pushbutton | | LEDs | On Line/Selected: 2 (orange)
USB Link: 2 (green) | | Emulation | Keyboard /Mouse: PS/2, USB | | Video Resolution | 2048 x 1536 at 60Hz, DDC2B | | Scan Interval | 1 to 255 seconds (default 5 sec) | | Power Consumption | DC5.3V, 3.1W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 5.5 x 3.5 x 2.2" (13.9 x 8.8 x 5.5 cm) | | Weight | 19.4 oz (550.0 g) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.102 x 6.85 x 2.598" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
