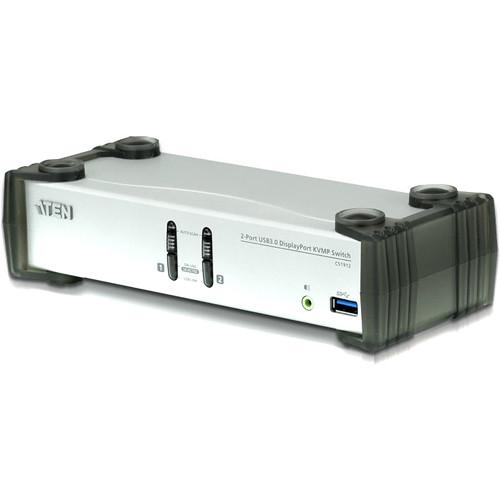

User Manual for ATEN 2-Port USB 3.1 Gen 1 DisplayPort KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN 2-Port USB 3.1 Gen 1
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 2-Port USB 3.1 Gen 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More ywzzbfqzuwabey The 2-Port USB 3.0 DisplayPort KVMP Switch from ATEN provides features resolution support for up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gb/s transfer rates, and enhanced user-friendly operations. As a KVM switch, the CS1912 gives users access to 2 DisplayPort computers from a single USB keyboard, USB mouse, and monitor. To work with ease, the CS1912 provides three convenient switching methods, namely; front panel pushbuttons, mouse, and hotkeys for flexible and quick access to both computers. ATEN's independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer such as a printer server, modem, or splitter. With its rich feature set, the CS1912 is designed to surpass all requirements for video post-production, CAD design, and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer, in HD quality, when transmitted by the DisplayPort, to offer you an exciting sound experience. -
- 2-port DisplayPort KVMP Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
- One USB console controls twi computers and two USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse
- Independent switching of KVM, USB, and audio focus
- DisplayPort 1.1 and HDCP compliant
- Full bass response for high-quality 2.1 channel surround sound systems
- Power-on detection if a computer is powered off, the CS1912 / CS1914 automatically switches to the next powered-on computer
- Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an DisplayPort-to-HDMI/DVI DP++ adapter
- Hot pluggable add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Windows, Mac, and Linux supported
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
- Mac keyboard support and emulation
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
UPC: 672792007088 In the Box ATEN 2-Port USB 3.1 Gen 1 DisplayPort KVMP Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2-Port USB 3.1 Gen 1 DisplayPort KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1912 Specs | Computer Connections | 2 | | Port Selection | Hotkey, pushbutton, mouse | | Console Ports | 2 x USB type A female (black)
1 x DisplayPort female (black)
2 x Mini stereo jack female
(green; 1 x front, 1 x rear) | | KVM Ports | 2 x USB 3.1 Gen
1 x type B female (blue)
2 x DisplayPort female (black)
2 x Mini stereo jack female (green) | | Power | 1 x DC Jack | | USB Hub | 2 x USB 3.1 Gen1 type A female (blue; 1 x front panel; 1 x rear panel) | | | | On Line /Link | 2 x Selected (Orange) | | USB | 2 x Links(Green) | | | | Video | 3840 x 2160 @ 30 Hz | | Scan Interval | 1 to 99 seconds (default: 5 sec.) | | Power Consumption | 5 VDC | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal, plastic | | Dimensions | 8.2 x 3.4 x 2.1" / 21.00 x 8.80 x 5.55 cm | | Weight | 1.6 lb / 0.73 kg |
