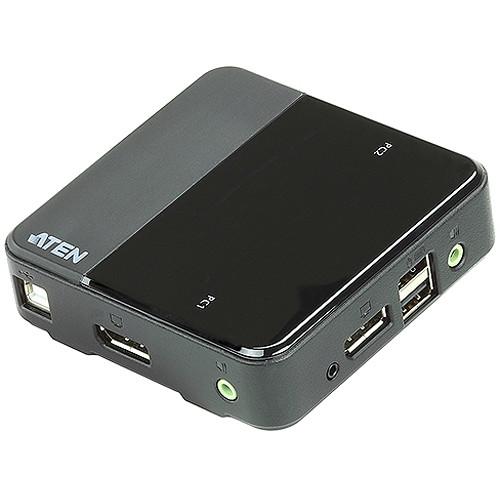

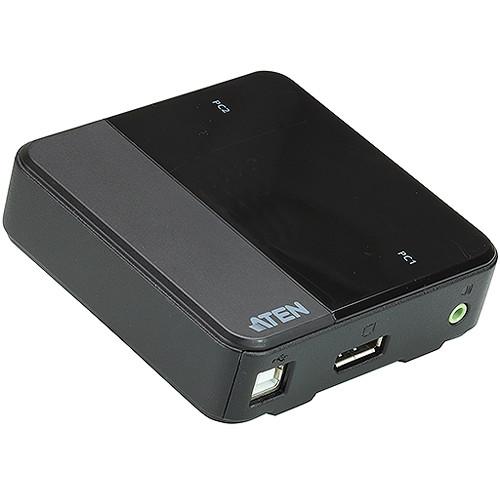

Product description Multi-Monitors: Maximizing Multitasking Read More The 2-Port USB DisplayPort KVM Switch from ATEN lets you control two computer systems using a single console set featuring one DisplayPort-enabled monitor, keyboard, mouse, and pair of speakers. The KVM switch is DisplayPort 1.2 compliant and supports DisplayPort dual-mode (DP++), which enables you to use optional powered adapters that convert the connector into an HDMI or DVI interface. Video, audio, and USB cables are included for connecting the KVM switch to two computer systems. In addition to supporting mice, its USB mouse port is compatible with user-supplied USB hubs and peripherals.
Once connected to the host system, the KVM switch delivers up to 4096 x 2160 visuals and 2.1-channel surround sounds. For switching between the systems, you can use the remote port selector, mouse, or hotkeys. Moreover, the switch is firmware upgradeable and powered by the host system's bus-powered port. - One DisplayPort video console set controls two DisplayPort-capable computers
- DisplayPort 1.2-compliant
- Computer selection via remote port selector, hotkeys, and USB mouse
- Supports 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- Support for Windows, Mac, Sun, and Linux
- Supports MST (Multi-Stream Transport), enabling daisy-chaining of multiple monitors via a single DisplayPort connector
- Supports DisplayPort dual-mode (DP++) for directly outputting single-link DVI or HDMI signals via a user-supplied DisplayPort-to-HDMI/DVI DP++ powered adapter
- Compatible with widescreen LCD monitors
- Power-On Detection: If either of the computers is powered off, this KVM switch will automatically switch to the other computer
- Audio-Enabled: Full bass response provides 2.1-channel surround sound
- Supports HD audio through DisplayPort playback
- Independent switching of the KVM and audio focus allows convenient multitasking
- Supports multimedia keyboards as well as wireless keyboards and mice
- Console mouse-port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
UPC: 672792006722 In the Box ATEN 2-Port USB DisplayPort/Audio KVM Switch 2 x DisplayPort Cables 2 x USB Cables 2 x Audio Cables Remote Port Selector Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2-Port USB DisplayPort Audio KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS782DP Specs | | | # of Systems Supported | 2 | | CPU Connections | 2 x DisplayPort
2 x USB (Unspecified Version) Type-B, Female
2 x 3.5 mm Audio, Female | | Console Connections | 1 x DisplayPort, Female
2 x USB (Unspecified Version) Type-A, Female
1 x 3.5 mm Audio, Male | | Control Connections | 1 x 3.5 mm (Remote) | | Scan Interval Range | 3 to 20 secs (5 secs Default) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | USB Keyboard/Mouse Emulation | Yes | | | | DC Input Power | 5 VDC at 0.8 A | | Power Consumption | 4 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 5.9' / 1.8 m (USB)
5.9' / 1.8 m (Audio)
4.9' / 1.5 m (Video)
5.9' / 1.8 m (Remote) | | Housing Material | Plastic | | Dimensions | 3.7 x 3.7 x 16.0" / 9.4 x 9.3 x 2.7 cm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.55 x 7.05 x 2.5" |
