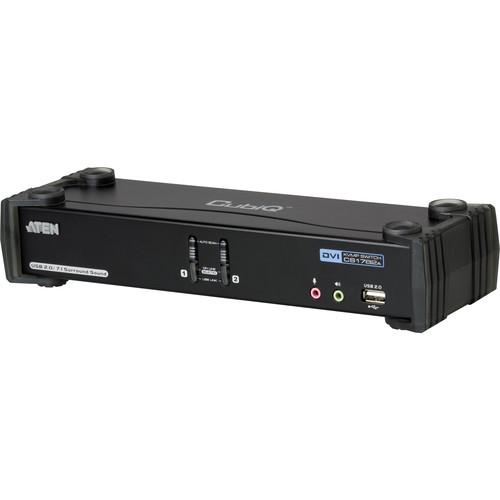

User Manual for ATEN 2-Port USB DVI Dual Link KVMP Switch with 7.1 Surround Sound Audio Click to enlarge the picture
Contents of the user manual for the ATEN 2-Port USB DVI Dual Link
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 2-Port USB DVI Dual Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 2-Port USB DVI Dual Link KVMP Switch with 7.1 Surround Sound Audio from ATEN combines the capabilities of a 2-port KVM switch with a 2-port USB 2.0 hub, while providing a DVI monitor interface and audio support. The KVMP switch allows one USB console to control two computers and two additional USB devices and includes the appropriate cables and adapter for installation. Featuring 3D display support, gaming and multi-function keyboard compatibility, as well as keyboard and mouse emulation, this device is aimed at providing you with a compact and organized set-up. - Full bass response for surround sound system
- Independent switching of KVM, USB, and Audio focus
- DVI digital and monitor support is compliant with DVI specifications
- nVidia 3D Vision Ready works with 120 Hz LCD monitors and active shutter glasses to create a 3D environment
- Video DynaSync™ eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports widescreen resolutions
- Supports most gaming keyboards
- Multilingual keyboard mapping for English, Japanese, and French keyboards
UPC: 672792002397 In the Box ATEN 2-Port USB DVI Dual Link KVMP Switch with 7.1 Surround Sound Audio Power Adapter 2 x Custom DVI-D KVM Cable Sets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2-Port USB DVI Dual Link KVMP Switch with 7.1 Surround Sound Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1782A Specs | Computer Connections | 2 | | Console Ports | Keyboard: 1 x USB Type A Female (Black, rear panel)
Video: 1 x DVI-I Female (White)
Mouse: 1 x USB Type A Female (Black, rear panel)
Audio Line Out: 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)
Audio Line In: 1 x Mini Stereo Jack Female (Blue)
Side Speaker Out: 1 x Mini Stereo Jack Female (Gray)
Rear Speaker Out: 1 x Mini Stereo Jack Female (Black)
Center/Subwoofer: 1 x Mini Stereo Jack Female (Orange)
Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel) | | KVM Ports | Keyboard/Mouse: 2 x USB Type B Female (White)
Video: 2 x DVI-I Female (White)
Audio Line Out: 2 x Mini Stereo Jack Female (Green)
Audio Line In: 2 x Mini Stereo Jack Female (Blue)
Side Speaker Out: 2 x Mini Stereo Jack Female (Gray)
Rear Speaker Out: 2 x Mini Stereo Jack Female (Gray)
Center/Subwoofer: 2 x Mini Stereo Jack Female (Orange)
Microphone: 2 x Mini Stereo Jack Female (Pink) | | Connectors | Power: 1 x DC Jack
USB 2.0 Hub: 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel) | | Port Selection | Front panel push-buttons, hotkeys, mouse | | LEDs | On Line/Selected: 2 (Orange) USB Link: 2 (Green) | | Switches | 2 x Push-buttons | | Video Resolution | DVI Dual Link: 2560 x 1600
DVI Single Link: 1920 x 1200 | | Scan Interval | 1-99 sec (5 sec default) | | Emulation | Keyboard/Mouse: USB | | Power Consumption | DC 5.3 V, 9 W | | Housing | Metal | | Supported Operating Systems | Windows, Mac, Linux, and Sun | | Dimensions (L x W x H) | 10.6 x 3.5 x 2.2" (27.0 x 8.8 x 5.6 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 13.0 x 8.4 x 4.0" |
