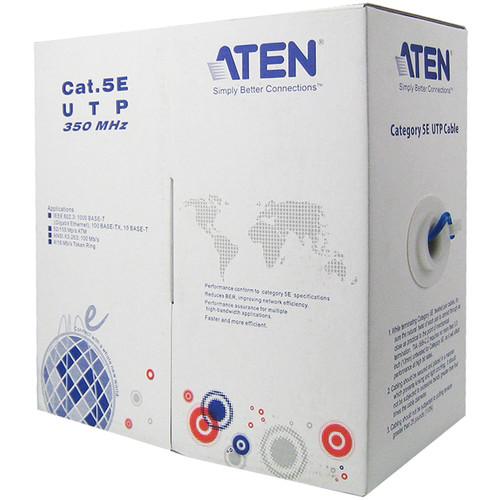

Product description The 2L-2801 Low-Skew Cat 5e Cable from Aten is designed to support clearer video transmissions to longer distances than a traditional twisted-pair Cat 5e cable. It is specifically designed to be used with RGB video applications, such as digital signage, and is 1000 ft for long-range usage. The cable is compatible with the audio and video transmission of most video and KVM extenders. UPC: 672792002977 In the Box ATEN 2L-2801 Low-Skew Cat 5e Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2L-2801 Low-Skew Cat 5e Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN 2L-2801 Specs | | | Connector Size | 24 AWG | | Conductor Diameter | 1/0.019" / 0.490 mm ± 0.001" / 0.02 mm | | Insulation | Average thickness: 0.01" / 0.20 mm
Minimum thickness: 0.01" / 0.19 mm
Diameter: 0.035" / 0.880 mm ± 0.001" / 0.02 mm | | Shielded | Pair stranded: 2 cores stranded
Assembly stranded: 4 pair stranded | | Jacketed | Average thickness: 0.02" / 0.45 mm
Minimum thickness: 0.02" / 0.41 mm
Diameter: 0.19" / 4.80 mm ± 0.01" / 0.20 mm | | | | Maximum Item Size | 24 AWG x 4 p | | Conductor Resistance | 9.38 Ohms / 100 m / maximum: 68°F / 20°C | | Mutual Capacitance | Maximum: 56 Pf/M | | Dielectric Strength | AC 1.5 kv / 2 sec | | Spark Test | 2.5 Kv | | Insulation Tensile Strength | Minimum: 2400 Psi, maximum: 1.69 Kg/M
Unaged minimum: 75% (212°F / 100°C x 48 hr) | | Insulation Elongation | Minimum: 300%
Unaged minimum: 75% (212°F / 100°C x 48 hr) | | Jacketed Tensile Strength | Minimum: 2000 Psi, maximum: 1.41 Kg/M
Unaged minimum: 85% (212°F / 100°C x 240 hr) | | Jacketed Elongation | Minimum: 100%
Unaged minimum: 50% (212°F / 100°C x 240 hr) | | Insulation Shrinkback | 150 m/M, 121°C±1°C x 1 hr≦9.5 m/M | | Cold Bend Test | -40°F / -40°C x 4 hr No.Crack | | Flame Retardant Test | CMR | | Leakage Current | Through overall jacket: 1500 VAC ≦ 10 mA | | DC Resistance | Unbalanced: 5% maximum | | Maximum Capacitance Unbalance | 330 Pf, 100 m | | Impedance | 1 to 350 MHz, 100±15 Ohms | | Structural Return Loss | 350 MHz, 10.6 dB per minute | | Propogation Delay | 350 MHz, 536 ns, maximum: 100 m | | Delay Skew | 1 to 350 MHz, 20 ns, maximum: 100 m | | Material | Connector: solid bare copper
Insulation: HDPE
Jacket: FR PVC | | Cable Length | 1,000.7' / 305.0 m | | Weight | 21.6 lb / 9.8 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 14.8 x 14.4 x 7.2" |
