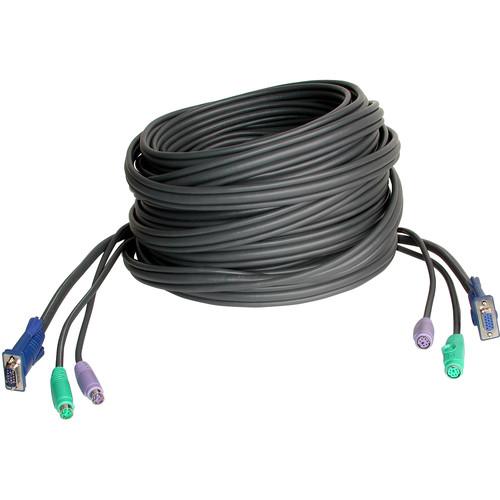

User Manual for ATEN 2L1020P HDB, PS 2 Console Extender Cable Click to enlarge the picture
Contents of the user manual for the ATEN 2L1020P HDB, PS 2 Console
- Product category: KVM Cables & Accessories ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Cables & Accessories
|
User manual for the ATEN 2L1020P HDB, PS 2 Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The 65.6' 2L1020P HDB, PS/2 Console Extender Cable from Aten is designed to connect two KVM systems to each other while providing the highest signal capacity with the lowest signal loss. The extender cable is double shielded to prevent RF interference; below the outer PVC insulator there is a copper braid RF shield, and beneath the RF shield there is a mylar foil shield. There is an HDB male/female connector for VGA connection, and two male/female 6-pin mini-DIN connectors for your mouse and keyboard. The cable contains low resistance and low capacitance 24 AWG wires for maximum video performance. The red, green, and blue video signals are carried through coaxial wires to reduce interference, and the signal carrying wires are enclosed in a one-piece envelope. The video cable is constructed in compliance with standard UL 2919, and the mouse and keyboard cable is constructed in compliance with standard UL 2464. - The cable is double shielded to prevent RF interference
- Uses low resistance and low capacitance 24 gauge wire for maximum performance
- Video cable complies with UL 2919 specifications
- Mouse and keyboard cable complies with UL 2464 standard
UPC: 672792105210 In the Box ATEN 2L1020P HDB, PS/2 Console Extender Cable (65.6') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2L1020P HDB, PS 2 Console Extender Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN 2L1020P Specs | Connection Type | HDB, PS/2 | | Connections | 2 x 6-pin mini-DIN male
2 x 6-pin mini-DIN female
1 x HDB-15 male
1 x HDB-15 female | | Length | 65.6' (20 m) | | Weight | Not specified by manufacturer |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
