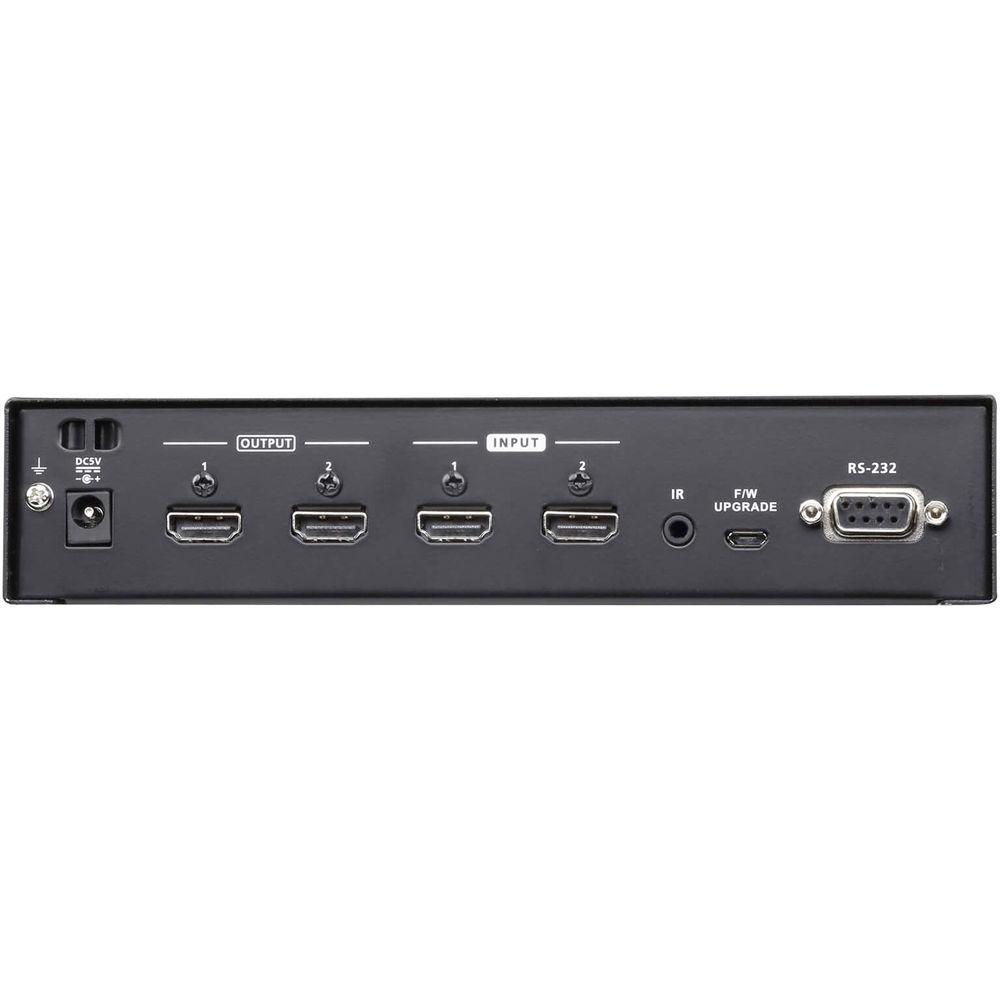

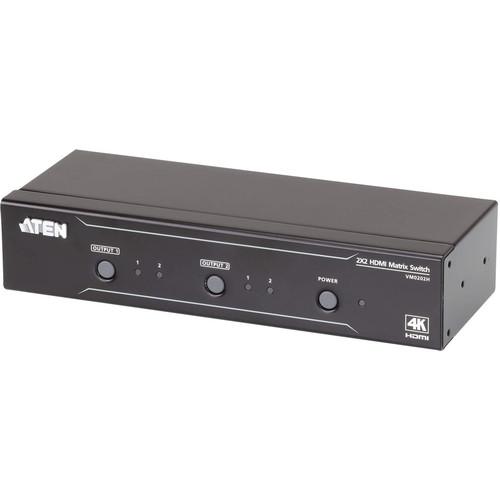

User Manual for ATEN 2x2 HDMI Matrix Switch Click to enlarge the picture
Contents of the user manual for the ATEN 2x2 HDMI Matrix Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN 2x2 HDMI Matrix Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

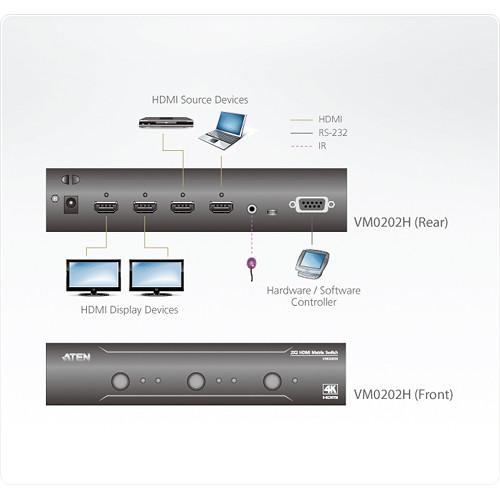

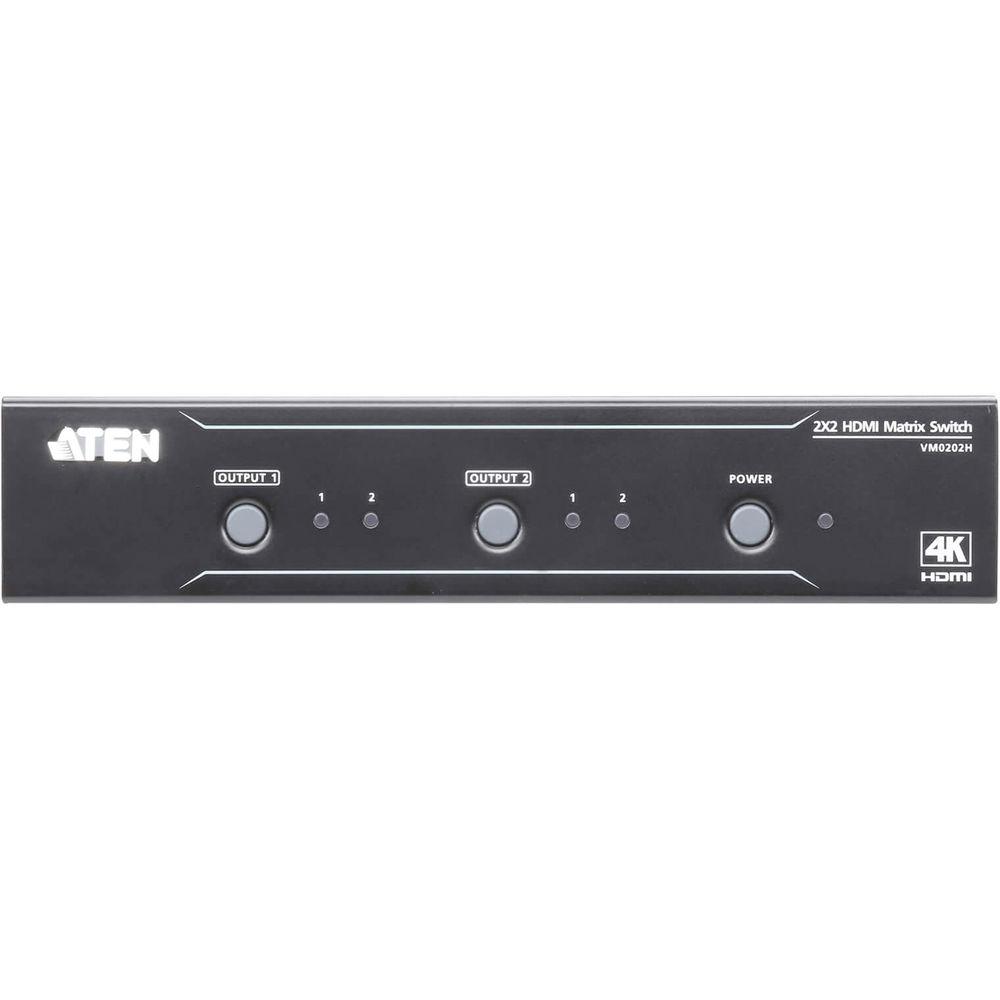

Product description The 2x2 4K HDMI Matrix Switch from ATEN provides high-performance routing of two HDMI video sources, such as HD camcorders, satellite boxes, HD-DVD players, Blu-ray players, home theater PCs, and stand-alone streaming media players to any two HDMI displays. It meets HDMI specification features including 3D, deep color up to 12-bit, and data rates up to 10.2 Gb/s. The matrix switch supports computer and video signals at resolutions up to 4096 x 2160. The remote control and convenient front-panel push buttons allow you to cycle through the HDMI source devices and displays, while the LEDs indicate the source device for each display. - Connects two HDMI sources to any two HDMI displays
- Meets HDMI specification features including 3D, deep color, and 4K support
- Supports computer and video resolutions up to 4096 x 2160
- Offers maximum data rate of 10.2 Gb/s (3.4 Gb/s per lane)
- Supports Dolby True HD and DTS HD Master audio
- Supports long distance transmission up to 49'
- System management via front-panel push buttons, IR remote, and RS- 232 control
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert–select optimum EDID settings for smooth power-up, high-quality display, and use of the ideal video resolution across different screens
- ESD protection for HDMI ports
- Supports ATEN's Lock Pro HDMI cable lock for secured HDMI cable connections
- 1 RU rack-mountable metal casing
UPC: 672792007378 In the Box ATEN 2x2 HDMI Matrix Switch Rackmount Kit Power Adapter IR Control IR Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 2x2 HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM0202H Specs | | | Interfaces | 2 x HDMI Type A female (black) | | Impedance | 100 Ohms | | Maximum Distance | 5.9' (1.8 m) | | | | Interfaces | 2 x HDMI Type A female (black) | | Impedance | 100 Ohms | | Maximum Distance | 49' (15 m) | | | | Maximum Data Rate | 10.2 Gb/s (3.4 Gb/s per lane) | | Maximum Pixel Clock | 340 MHz | | Maximum Resolution | Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0)
4096 x 2160 / 3840 x 2160 at 30 Hz (4:4:4) | | Maximum Distance | Up to 49' (15 m) | | Compliance | HDMI (3D, 4K, deep color)
HDCP 1.4 compatible
Consumer Electronics Control (CEC) | | | | USB | 1 x micro-USB for firmware upgrade | | RS-232 | Connector: 1 x DB-9 female (black)
Baud Rate: 19200
Data Bits: 8
Stop Bits:1
Parity: No
Flow Control: No | | IR Control | 1 x mini stereo jack female (black) | | EDID | EDID Mode: Default / Port1 / Remix | | | | Connector | 1 x DC jack (black) | | Supply | 5 VDC | | Consumption | 4.3 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | | | Material | Metal housing | | Dimensions | 7.87 x 2.99 x 1.65" (20 x 7.6 x 4.2 cm) | | Weight | 1.28 lb (0.58 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.4" |
