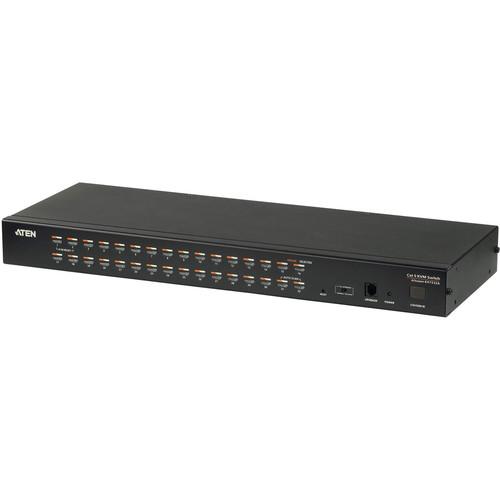

User Manual for ATEN 32-Port Cat 5 KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 32-Port Cat 5 KVM Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 32-Port Cat 5 KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 32-Port Cat 5 KVM Switch from ATEN is a control unit that allows IT administrators to access and control up to 32 computers from a single PS/2 or USB KVM console. By daisy-chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console. The KVM Switch is designed to facilitate the management of server room and data center devices. - Easy Operation
- Three port-selection methods: Manual (via front panel push buttons), hotkey, and multi-language on screen display.
Multi-language keyboard support includes US English, UK English, French, German, Swiss German, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and traditional Chinese. - Auto-Scanning and Broadcast Mode
- Auto Scan provides hands-free monitoring of selected devices at changeable speeds. Broadcast Mode sends commands from the console to all computers, allowing users to perform operations such as software installations, upgrades, and shutdowns on all computers simultaneously.
- Console Conversion
- Any KVM console can control any type of computer. Mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides.
- Superior Video Quality
- Supports video resolutions up to 1920 x 1200 at 60 Hz up to 98.4', 1600 x 1200 at 60 Hz up to 131.2', and 1280 x 1024 at 75 Hz up to 164'.
- Multiple User Accounts
- Supports up to one administrator and 10 user accounts.
- Access Rights
- Port access rights for users are configured on a port-by-port basis.
- Multiplatform Support
- The switch supports Windows, Mac, Sun, and serial platforms.
- Two-Level Password Security
- Password protection prevents unauthorized access to the installation.
- RJ45 Connectors and Cat-5e/6 Cabling
- The switch can be installed in a 1 RU system rack, and the installation can take advantage of the internal network wiring built into most modern commercial buildings.
- Adapter Cables with ID Function
- The KVM switch supports automatic ID recognition of the ATEN KVM Cable Adapter KA7000 series (available separately). Using these adapters with an ID means cables do not need to be reconfigured when moved from port to port. Device ID and attributes are stored in the adapter cables, allowing you to hot-swap port connections without having to change the settings.
In the Box ATEN 32-Port Cat 5 KVM Switch Firmware Upgrade Cable Power Cord Rack-Mount Kit Foot Pad Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 32-Port Cat 5 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KH1532A Specs | Computer Connections | Direct: 32
Maximum: 1024 (via daisy-chain) | | Port Selection | OSD, hotkey, push button | | Console Ports | 2 x USB Type-A (female)
1 x 6-pin mini-DIN (female)
1 x 6-pin mini-DIN (female)
1 x HDB-15 (female) | | KVM Ports | 32 x RJ45 (female) | | Daisy Chain | Ports: 1 x DB-25 (female)
1 x DB-25 (male) | | Firmware Upgrade | 1 x RJ11 (female) | | Power Connectors | 1 x IEC 60320-C14 | | Switches | Port Selection: 32 x push buttons
Reset: 1 x semi-recessed push button
Firmware Upgrade: 1 x slide
Power: 1 x rocker | | LEDs | Online: 32 (green)
Selected: 32 (orange)
Power: 1 (blue)
Station ID: 1 x 2 digit 7-segment (orange) | | Emulation | Keyboard/Mouse: PS/2 / USB | | Scan Interval | 1 to 255 seconds | | Video Resolution | 1920 x 1200 at 60 Hz at 98.4' / 30 m
1600 x 1200 at 60 Hz at 131.2' / 40 m
1280 x 1024 at 75 Hz at 164' / 50 m | | Maximum Input Power | 100-240 VAC,
50/60 Hz,
1 A | | Power Consumption | 110 V / 4.6 W
220 V / 4.8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0-80% RH (non-condensing) | | Housing | Metal | | Dimensions | 17.21 x 6.44 x 1.73" / 43.72 x 16.37 x 4.40 cm | | Weight | 6.19 lb / 2.81 kg |
