Product description

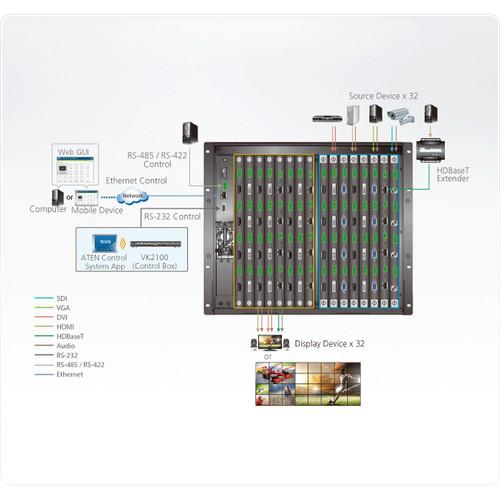

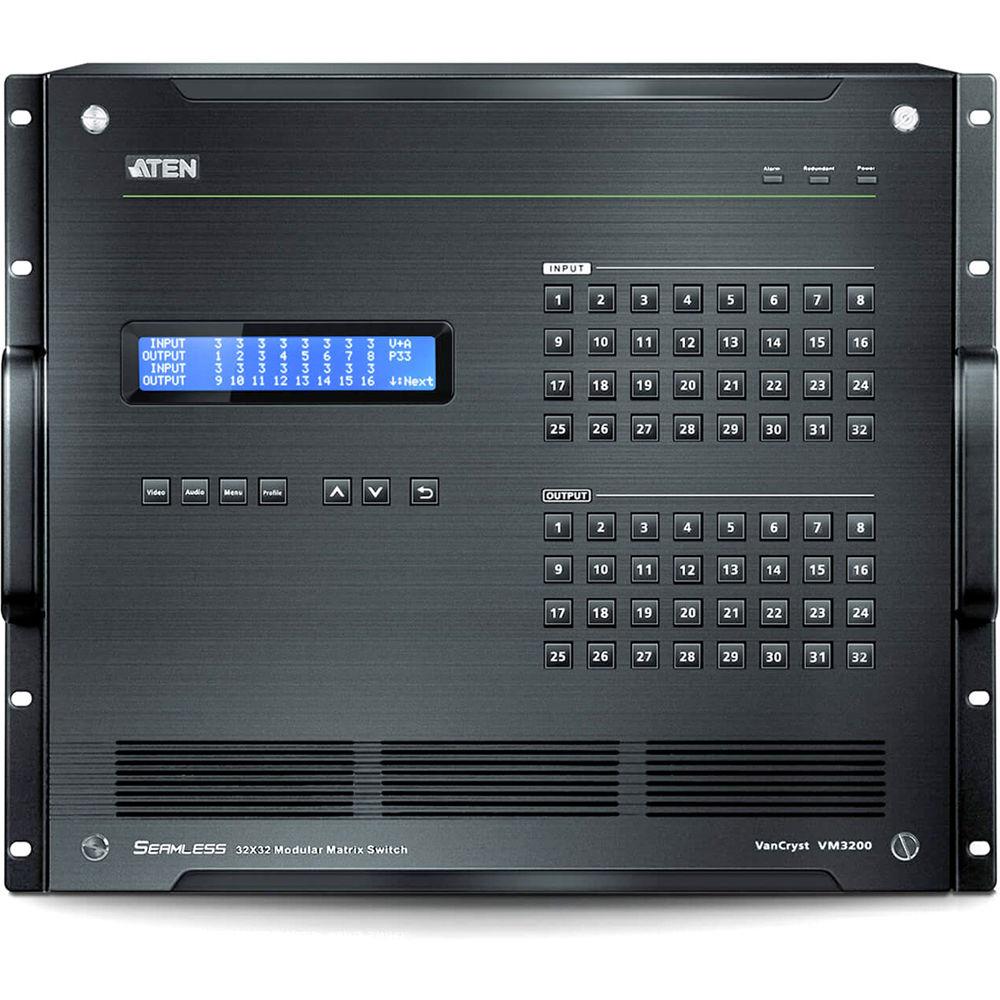

The ATEN 32 x 32 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. It allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers via front-panel push-button control. The switcher can also be controlled via Ethernet, as well as RS-232/422/485 protocols. A front-panel LCD display provides a quick view of active port connections. The switch also includes an option to select an EDID mode.

The switch incorporates a speed-progressive video switching function and a scaler that integrates seamlessly with video wall systems and accommodates hot-swappable ATEN input/output boards. Optional boards allow various combinations of digital video interfaces, including HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404), and VGA (VM7104). This makes it suitable for large-scale A/V applications such as broadcasting stations, traffic, and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
    • Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix I/O Boards
    • Multiple means for system configuration including front-panel push buttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
    • 4K Resolutions: up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) [depends on I/O board]
    • Scaler: features a (4K) video scaling function to convert input resolutions to the display's native resolutions
    • Seamless Switch: features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions (depends on I/O board)

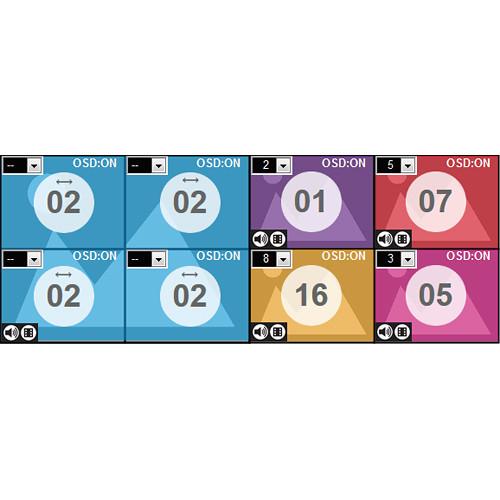

    • Video Wall: allows you to create custom video wall layouts via intuitive web GUI (depends on I/O board)
    • Calendar-Based Scheduling: plays connection profiles that synchronized with real-time clock
    • EDID Expert: selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
    • Audio-Enabled: HDMI audio can be extracted and stereo audio can be embedded (depends on I/O board)
    • Bi-Directional RS-232 Channel: allows you to control the connected serial devices simultaneously through the web GUI
    • Supports redundant power module for higher reliability

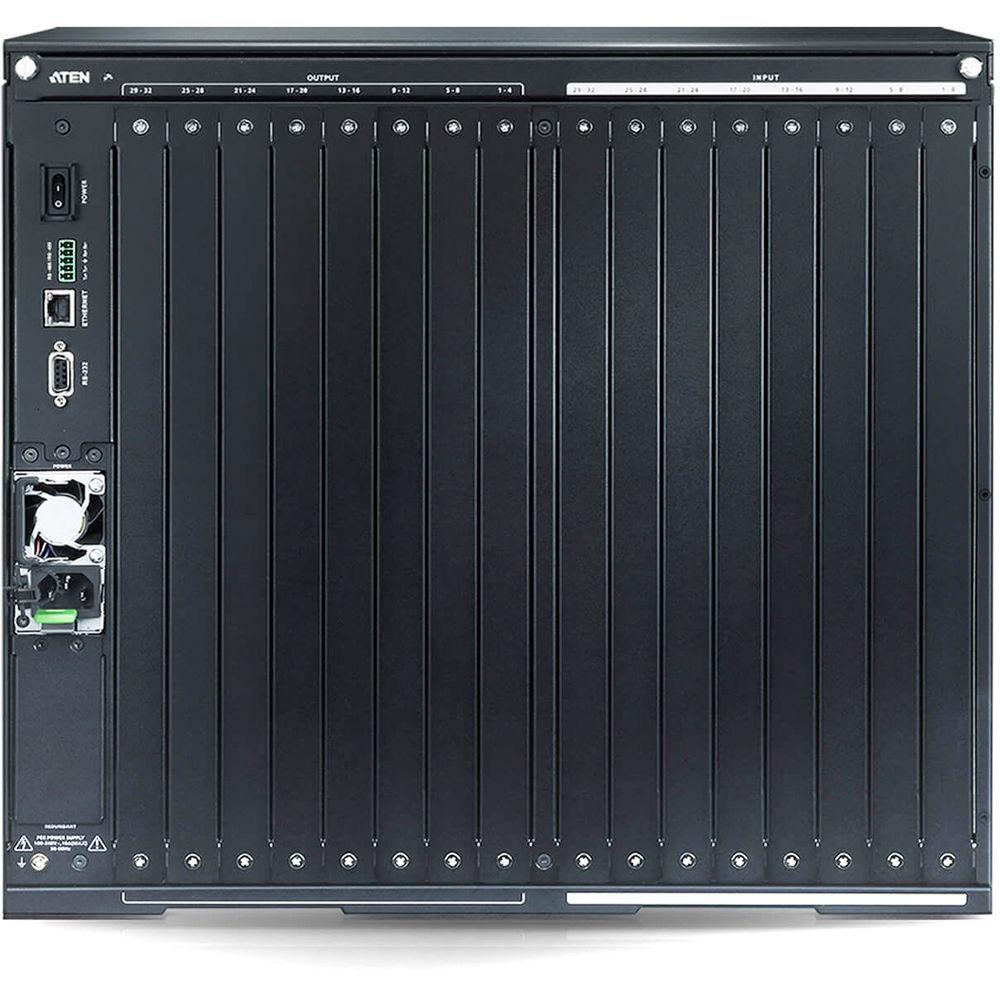

    • Hot-Swappable Design: easy integration of I/O boards, fan module, and power supplies
    • HDCP 2.2 Compatible (depends on I/O board)
    • HDMI: 3D, Deep Color, Interlace (must disable seamless switch with either of these modes)
    • Consumer Electronics Control (CEC) supported
    • Rack mountable (9U design)
UPC: 672792006975 In the Box ATEN 32 x 32 Modular Matrix Switch
  • Power Cord
  • Terminal Block Connector
  • Fan Module
  • Power Module
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ATEN 32 x 32 Modular Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ATEN VM3200 Specs

    Input / Output Board: 8/8
    Video Input Interfaces: Depends on Which I/O Board Is Inserted
    Maximum Data Rate: 15.2 Gb/s (3.8 Gb/s per Lane)
    Audio Input: Depends on Which Input Board Is Inserted
    Output: Depends on Which Output Board Is Inserted
    Control RS-232
    Connector: 1 x DB-9 Female (Black)
    Serial Control Pin Configurations: Pin 2 = Tx, Pin 3 = Rx, Pin 5 = Gnd
    Baud Rate: 19200
    Data Bits: 8
    Stop Bits: 1
    Parity: No
    Flow Control: No

    RS-485/RS-422
    Connector: 1 x 5-Pole Captive Screw Connector

    Ethernet
    Connector: 1 x RJ45 Female
    EDID EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard Support)
    Power Connectors: 1 x 3-Prong AC Socket
    Maximum Input Power Rating: 100 to 240 VAC; 50/60 Hz; 1.0 A
    Consumption: 800 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Humidity 0 to 80% RH, Non-Condensing
    Housing Metal
    Rack Mount Unit Dimensions 9U
    Dimensions (L x W x H) 18.98 x 18.58 x 15.71" / 48.21 x 47.19 x 39.9 cm
    Weight 40.1 lb / 18.2 kg
