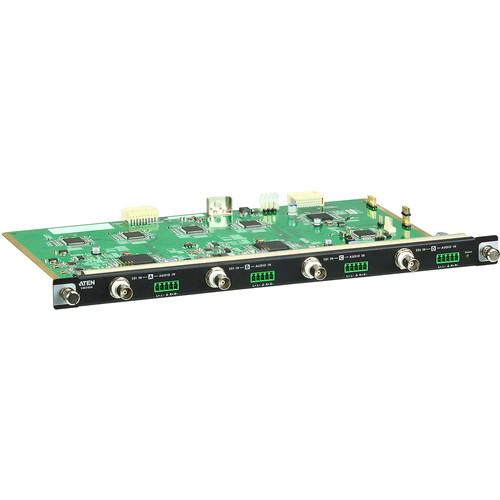

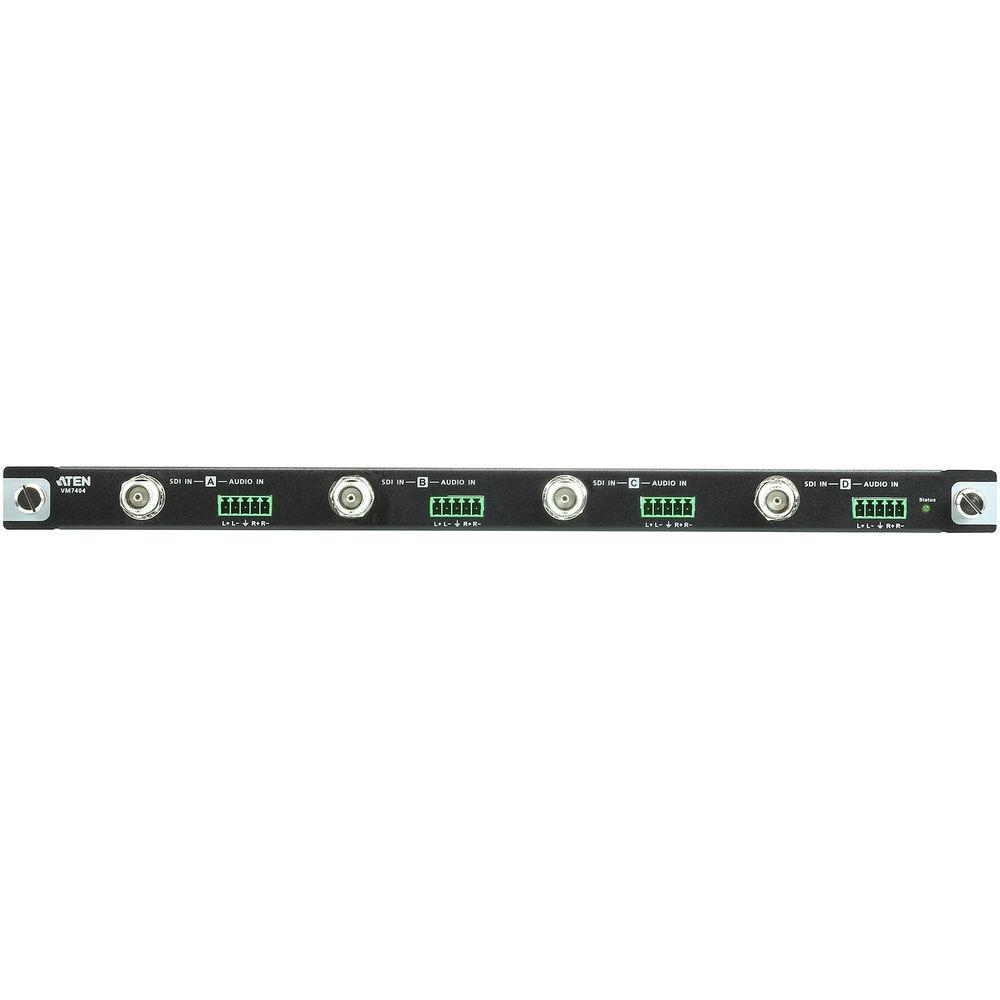

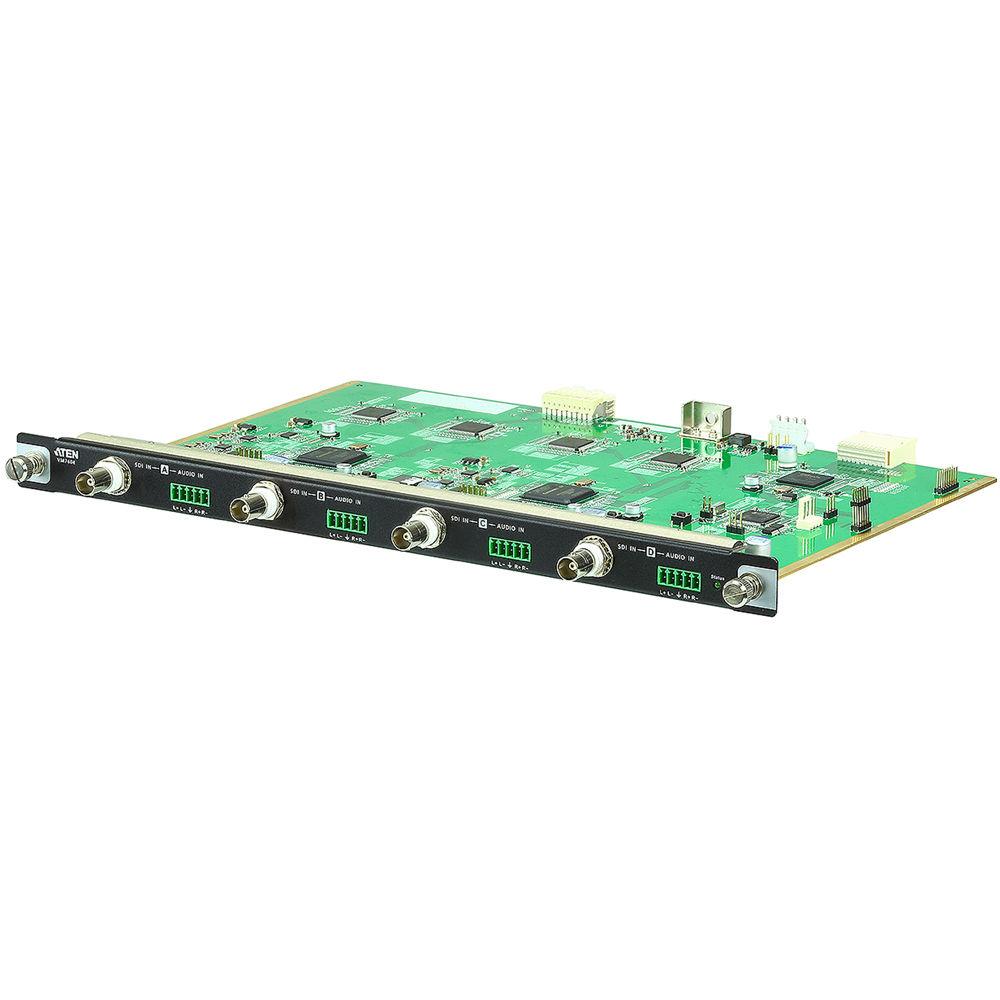

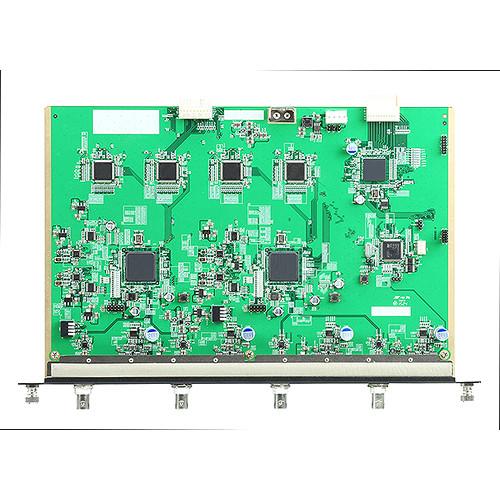

Product description Provided by third party: The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN modular matrix switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high-quality video resolutions. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN modular matrix switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.
- Key Features
-
- Connects up to 4 SDI inputs
- Supports SD-SDI, HD-SDI and 3G-SDI formats
- Hot-swappable design for easy integration of I/O boards
UPC: 672792006814 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port 3G-SDI Input Board for VM1600 Modular Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM7404 Specs | | | Device Type | Expansion module | | Form Factor | Plug-in module | | | | Ports | 3G-SDI x 4 | | Connectivity Technology | Wired | | Performance | Maximum data rate: 2.97 Gbps | | Features | HDCP compliant | | | | Interfaces | 4 x 3G-SDI input - BNC x 5
4 x audio line-in - 5 pin terminal block | | | | Power Consumption Operational | 16 Watt | | | | Width | 13.9 in | | Depth | 9.4 in | | Height | 0.9 in | | Weight | 21.16 oz | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
