User Manual for ATEN 4-Port Cat 5 USB 2.0 Extender Click to enlarge the picture
Contents of the user manual for the ATEN 4-Port Cat 5 USB 2.0
- Product category: USB Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN USB Extenders
 |
User manual for the ATEN 4-Port Cat 5 USB 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

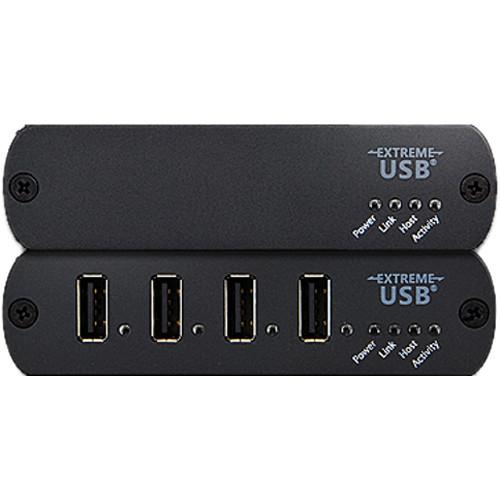

Product description The 4-Port Cat 5 USB 2.0 Extender from ATEN enables users to extend the standard 16' (5m) cable limit for USB peripheral devices. It comes with a transmitter/local unit and receiver/remote unit. Up to four USB devices can be connected to the remote unit up to 328' from the computer (local unit location), or up to 11 devices across three connected USB hubs. The extender provides a durable, high-quality connection that harnesses the full capability of the USB 2.0 standard to ensure reliable data communication. - Extends the transmission distance USB devices up to 328'
- ExtremeUSB supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Fully compliant with USB electrical and timing specifications
- LED indicators display port focus
- Multiplatform support - Windows, OS X, and Linux
UPC: 881317514738 In the Box ATEN 4-Port Cat 5 USB 2.0 Extender (328') UEH4002L Local Unit/Transmitter UEH4002R Remote Unit/Receiver AC Power Adapter 6' USB 2.0 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port Cat 5 USB 2.0 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

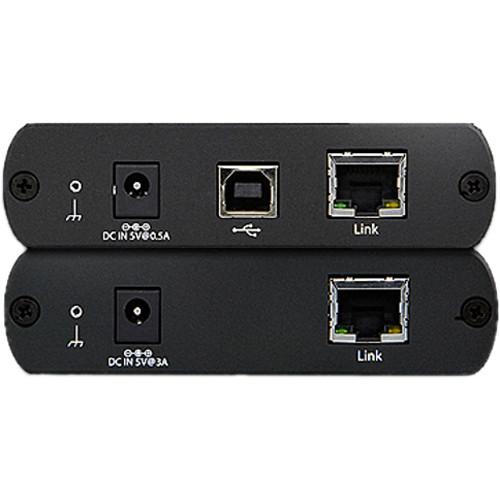

Technical parametersATEN UEH4002A Specs | | | Range | 328' (100 m) over Cat 5e (or better) cable | | Port | Upstream: 1 x USB Type-B female (white)
Downstream: 1 x RJ45 female
Power: 1 x DC jack | | USB | Specification:
USB 2.0 high-speed devices (480 Mb/s)
USB 2.0 & 1.1 full speed devices (12 Mb/s)
USB 2.0 & 1.1 low speed devices (1.5 Mb/s) | | Power Consumption | 5 VDC, 2.5 W | | Temperature | Operating:
32 to 122°F (0 to 50°C)
Storage:
-4 to 158°C (-20 to 70°C) | | Humidity | 0 to 80%, non-condensing | | Housing Material | Metal | | Dimensions (L x W x H) | 3.93 x 2.99 x 1.02" (10.0 x 7.6 x 2.6 cm) | | Weight | 0.79 lb (0.36 kg) | | | | Range | 328' (100 m) over Cat 5e (or better) cable | | Port | Upstream: 1 x RJ45 female
Downstream: 4 x USB Type-A female (white)
Power: 1 x DC jack | | USB | Specification:
USB 2.0 high-speed devices (480 Mb/s)
USB 2.0 & 1.1 full speed devices (12 Mb/s)
USB 2.0 & 1.1 low speed devices (1.5 Mb/s)
Maximum Devices:
14 USB devices or 3 USB hubs with 11 USB devices | | Power Consumption | 5 VDC, 2.5 W | | Temperature | Operating:
32 to 122°F (0 to 50°C)
Storage:
-4 to 158°C (-20 to 70°C) | | Humidity | 0 to 80%, non-condensing | | Housing Material | Metal | | Dimensions (L x W x H) | 3.93 x 2.99 x 1.02" (10.0 x 7.6 x 2.6 cm) | | Weight | 0.79 lb (0.36 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.5 x 7.6 x 3.1" |
