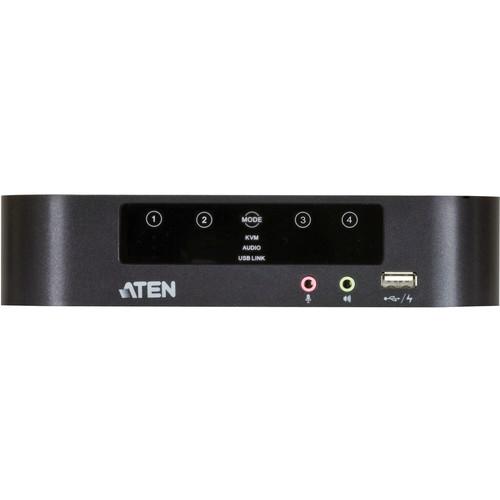

User Manual for ATEN 4-port USB 2.0 Dual View Mini DisplayPort KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN 4-port USB 2.0 Dual View
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN 4-port USB 2.0 Dual View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More xbxzfvcdvwe The 4-port USB 2.0 Dual View Mini DisplayPort KVMP Switch from ATEN allows access to four computers from a single USB keyboard and USB mouse with dual displays. It combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices. The CS1944 has latest Mini-DisplayPort and Mini-TOSLINK connectors.
The switch provides digital video and audio with reliable Ultra high resolution, vivid picture quality, and surround sound with SPDIF connections. It is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop. - One dual-view USB console that independently and simultaneously controls four mini DisplayPort computers and two USB devices
- USB quick charge mode (front panel USB port)
- Mini DisplayPort 1.1a and HDCP compatible
- Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK
- Superior video quality enables up to 2560 x 1600 resolution and 3D displays up to 1920 x 1080 resolution at 120 Hz
- 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications
- Computer selection via front touch panel/hotkeys/mouse
- Independent switching for USB peripherals, audio, and KVM focus
- Keyboard and Mouse support emulation and bypass
- Mac keyboard support and emulation
- Supports English, Japanese, and French keyboards and Windows, Linux, and Mac OS
UPC: 672792003448 In the Box ATEN 4-port USB 2.0 Dual View Mini DisplayPort KVMP Switch 4 x Mini DisplayPort 1.1a 1 m Cable 4 x Mini DisplayPort 1.1a 2 m Cable 4 x USB 2.0 1.8 m Cable 4 x Audio Jack 1.8 m Cable Sets Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-port USB 2.0 Dual View Mini DisplayPort KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

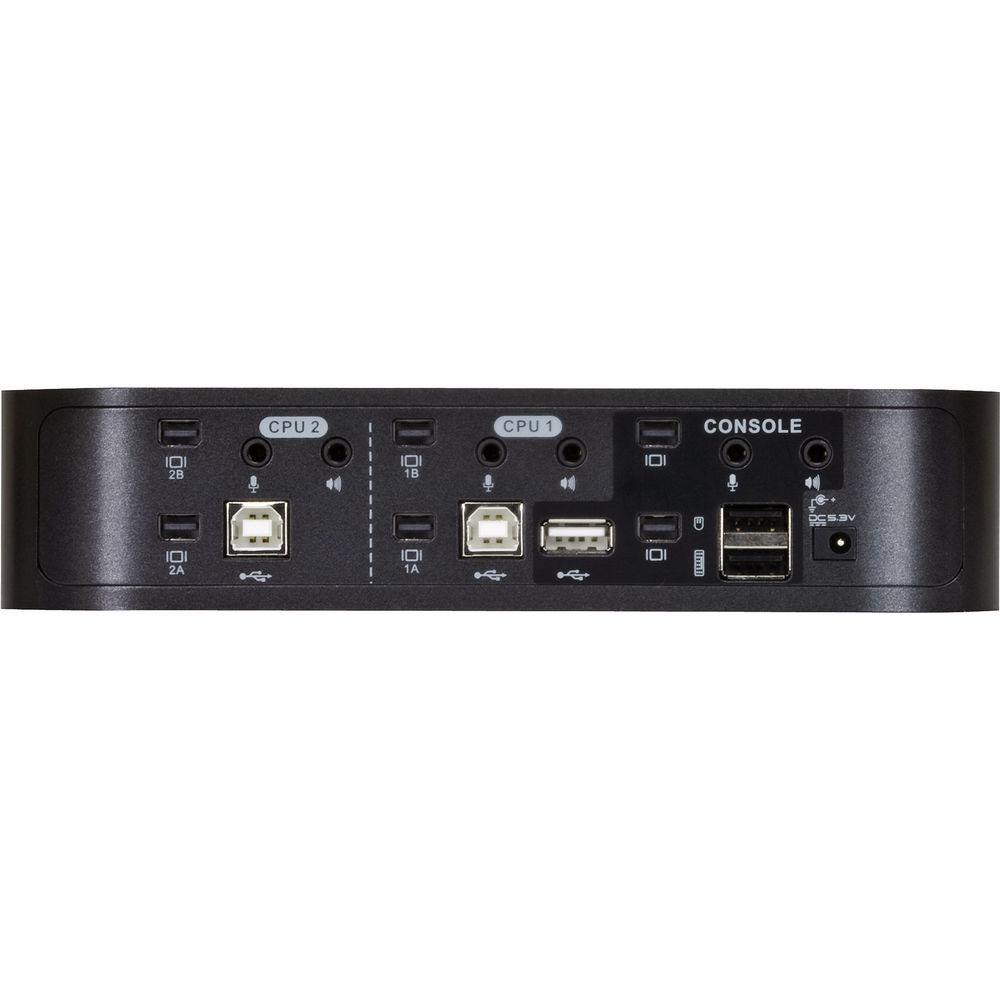

Technical parametersATEN CS1944 Specs | Connections | 4 | | Port Selection | Touch panel switches, hotkey, and mouse | | Connectors | Console Ports:
Keyboard: 1 x USB Type A F (black, rear panel)
Video: 1 x Mini DisplayPort F (black)
Mouse: 1 x USB Type A F (black, rear panel)
Speaker:
1 x Mini TOSLINK Jack F (black)
1 x 3.5mm Audio Jack F (green)

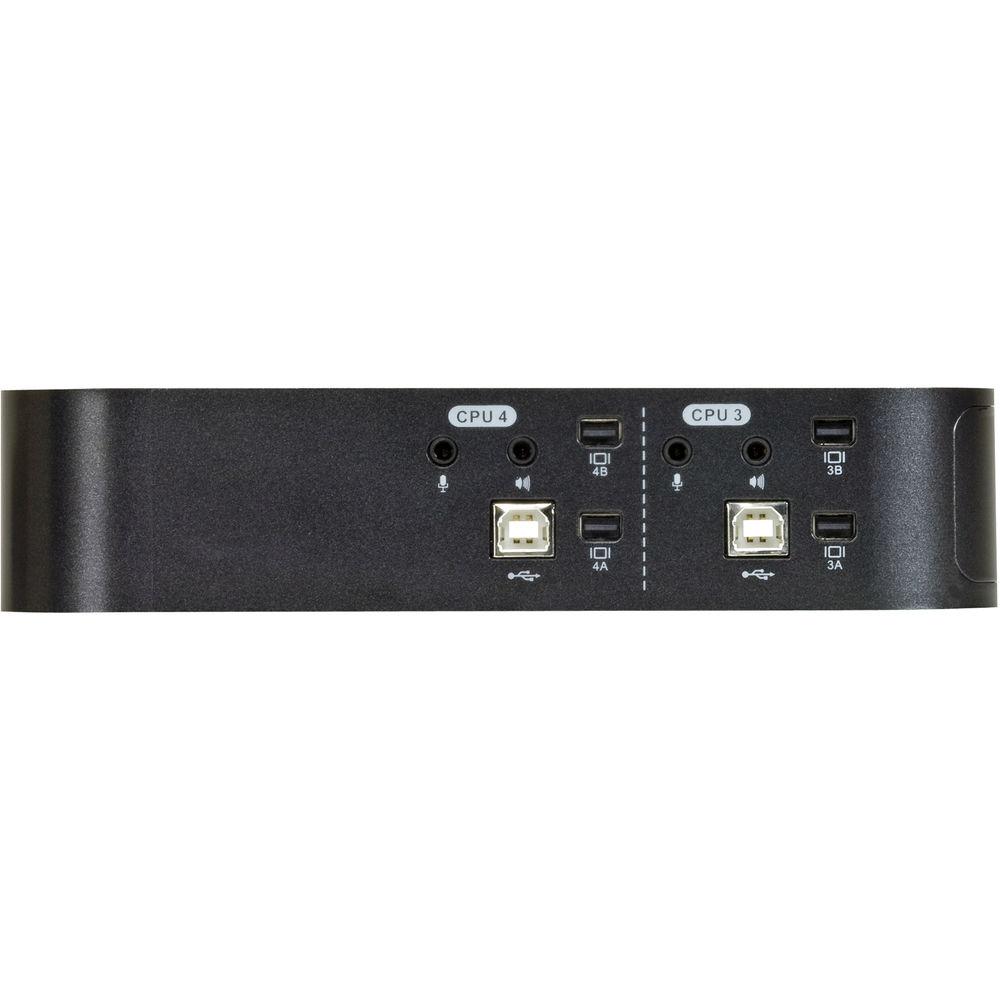

KVM Ports:
Keyboard/Mouse: 4 x USB Type B Female (white)
Video: 8 x Mini DisplayPort F (black)
Speaker: 4 x Mini TOSLINK Jack F (black)
Microphone: 4 x Mini TOSLINK Jack Female (black)
USB 2.0 Hub: 2 x USB Type A F (white, 1 x front panel, 1 x Rear panel)
Power: 1 x DC Jack | | Switches | Selected: 4 x Point touch panel | | LEDs | KVM: 4 (orange)
Audio: 4 (green)
USB: 4 (green) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | DP: 2560 x 1600 at 60 Hz, or 3D display 1920 x 1080 at 120 Hz | | Scan Interval | 1 to 99 seconds (default: 5 sec) | | Power Consumption | 5.3 VDC, 8.63 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Housing | Plastic | | Dimensions (L x W x H) | 19.7 x 19.7 x 4.5" (50.0 x 50.0 x 11.4 cm) | | Weight | 21.5 oz (610.0 g) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 10.9 x 10.9 x 5.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
