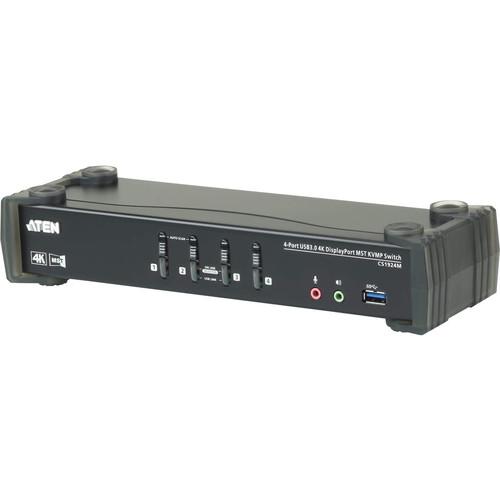

User Manual for ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort Multi-Stream-Transport KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN 4-Port USB 3.1 Gen 1
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 4-Port USB 3.1 Gen 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More vrzsdvyyfasccsvyussteyuxcy The 4-Port DisplayPort Multi-Stream Transport KVMP Switch from ATEN is a DisplayPort KVM switch with a built-in MST hub. It enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K DCI. The integrated USB 3.1 Gen 1 hub delivers data transfer speeds of up to 5 Gb/s for maximizing multitasking operations.
The switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need for a separate USB hub or standalone peripheral sharer, such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and allows HD audio transmitted through a DisplayPort source. - DisplayPort KVM Switch with Built-in MST Hub
-
- Control four computers and two USB peripherals with one USB keyboard or mouse and one DisplayPort or HDMI monitor
- Built-in Multi-Stream Transport hub allows dual displays (DisplayPort/HDMI) from one DisplayPort source
- Supports MST Mode, Splitter Mode, and Single-Port Mode
- Four-port USB 3.1 Gen 1 hub with 5 Gb/s data transfer speed
- DisplayPort Dual-Mode technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable—add or remove computers without powering down the switch
- Audio/Video
-
- Video resolution of 4K UHD (3840 x 2160 at 60 Hz) and 4K DCI (4096 x 2160 at 60 Hz)
- DisplayPort 1.2 and HDCP compliant
- Supports high-definition audio through DisplayPort
- Full bass response for 2.1 channel surround sound system
- Operation
-
- Computer selection via front panel push buttons, hotkeys, mouse, and RS-232 commands
- Independent switching of KVM, USB hub, and Audio focus
- Power-on detection—if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers
- Compatibility
-
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multi-function mice
- Multi-platform support—Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
UPC: 672792007750 In the Box ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort Multi-Stream-Transport KVMP Switch 4 x DisplayPort 1.2 Cables (5') 4 x USB 3.0 Type A to Type B Cables (6') 8 x Audio Cables (6') Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort Multi-Stream-Transport KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1924M Specs | Computer Connections | 4 | | Port Selection | Hotkey, push button, mouse, RS-232 commands | | Console Ports | 2 x USB Type A female
1 x DisplayPort female (black)
1 x HDMI female (black)
2 x 3.5 mm audio jacks, female (green)
2 x 3.5 mm audio jacks, female (pink)
1 x RJ-11 female | | KVM Ports | 4 x USB 3.1 Gen 1 Type B female (blue)
4 x DisplayPort female (black)
4 x 3.5 mm audio jacks, female (green)
4 x 3.5 mm audio jacks, female (pink) | | Power Connector | 1 x DC jack | | USB Hub | 2 x USB 3.1 Gen 1 Type A female (blue) | | Switches | 4 x push buttons | | LEDs | Online/Selected: 4 (orange)
USB Link: 4 (green) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | Up to 4096 x 2160 at 60 Hz | | Scan Interval | 1 to 99 seconds
Default: 5 seconds | | Power Consumption | 5.0 VDC / 4.89 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0-80% RH (non-condensing) | | Housing | Metal, plastic | | Dimensions | 10.63 x 3.46 x 2.18" / 27.00 x 8.80 x 5.55 cm | | Weight | 2.03 lb (0.92 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 12.9 x 8.6 x 4.0" |
