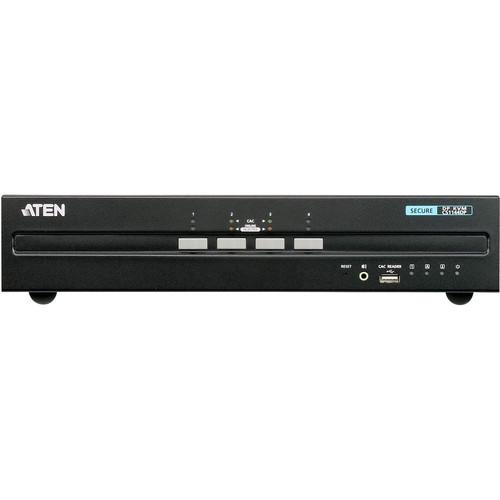

User Manual for ATEN 4-Port USB DisplayPort Dual-Display Secure KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 4-Port USB DisplayPort Dual-Display Secure
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 4-Port USB DisplayPort Dual-Display Secure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More fctscceawccdcfxzzsddss The 4-Port USB DisplayPort Dual-Display Secure KVM Switch from ATEN is designed to meet the stringent security requirements of defense and intelligence installations. It is compliant with the PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP), ensuring high-level desktop security and data safekeeping. This four-port model uses a DisplayPort dual-display video interface and supports video resolutions of up to 4K UHD (3840 x 2160) at 30 Hz.
The CS1144DP provides isolation between up to four computer sources and their peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader. Compliance with PSS PP v3.0 ensures high user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, providing advanced security and a user-friendly design for instant deployment. - Up to 4K video output resolution at 30 Hz
- Port selection only via pushbuttons to enhance security
- Video DynaSync technology eliminates boot-up display problems and optimizes resolutions when switching between ports
- Supports enable/disable CAC function by port
- LED indicators for peripheral filtering and KVM security status
- Supports analog audio (speaker only)
- NIAP Common Criteria Compliant
- The CS1144DP is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements.
- Multi-Layered Security
-
- Restricted USB connectivity: Non-authorized HIDs (Human Interface Devices) and non-predefined CAC devices are rejected/ignored.
- Always-on chassis intrusion protection renders the CS1144DP inoperable when physical tampering is detected.
- Tamper-evident seal provides visual indication of any attempt to access the CS1144DP's internal components.
- Non-reprogrammable firmware prevents reprogramming of the CS1144DP.
- Data Channel Isolation and Unidirectional Data Flow
-
- Data channel isolation prevents data leakage between connected computers via isolated channel per port.
- The data flow between the console devices and the selected computer is unidirectional.
- The CS1144DP controls and isolates data flow between the console devices and the connected computers.
- To ensure user data protection, the keyboard/mouse data buffer is automatically purged when switching KVM port focus.
- Security Management
-
- KVM log data provides administrative functions for an authorized administrator to audit KVM log data.
- The USB CAC Port can be configured to allow/reject whitelisted/blacklisted devices via the Admin logon function or Windows-based application.
In the Box ATEN 4-Port USB DisplayPort Dual-Display Secure KVM Switch Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port USB DisplayPort Dual-Display Secure KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1144DP Specs | Computer Ports | 4 | | Port Selection | Via pushbutton | | Console Ports | 2 x USB Type-A, female
2 x 6-pin mini-DIN, female
2 x HDMI, female
1 x stereo mini jack, female (front panel) | | KVM Ports | 8 x USB Type-B, female
8 x DisplayPort, female
4 x stereo mini jack, female | | Power Port | 1 x 3-prong AC socket | | CAC Port | 1 x USB Type-A, female (front panel) | | Switches | 4 x pushbuttons, port selection
1 x semi-recessed pushbutton, reset
1 x rocker, power | | LEDs | 4 x orange, on line / selected KVM port
4 x green, on line / selected CAC port
2 x green, video
3 x green, key lock
1 x blue, power | | Keyboard / Mouse Emulation | USB | | Maximum Video Resolution | 3840 x 2160 at 30 Hz | | Maximum Input Power | 100 to 240 V, 50/60 Hz, 1 A | | Power Consumption | 110 VAC: 8.2 W
220 VAC: 8 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity, Non-Condensing | 0 to 80% | | Housing Material | Metal | | Dimensions | 13.2 x 6.5 x 2.6" / 33.5 x 16.4 x 6.6 cm | | Weight | 4.7 lb / 2.1 kg |
