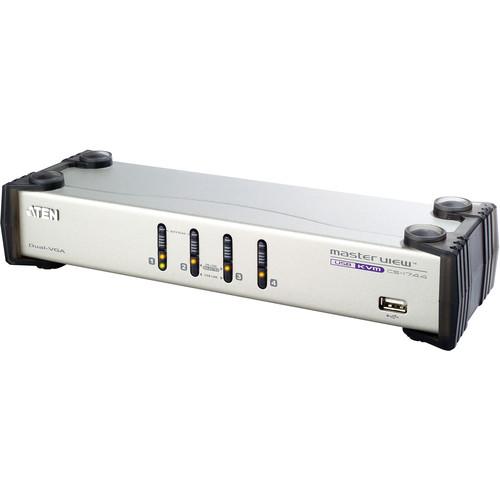

User Manual for ATEN 4-Port USB Dual-View KVMP Switch Click to enlarge the picture
Contents of the user manual for the ATEN 4-Port USB Dual-View KVMP Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 4-Port USB Dual-View KVMP Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port USB Dual-View KVMP Switch from ATEN integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. The switch also provides one USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB. - Allows one USB keyboard, USB mouse, speakers, microphone, and two displays to control four dual display computers
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux, and Mac, Sun)
- Speaker and microphone support
- Bi-directional switching and flexible interoperability, switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality: Up to 2048 x 1536, DDC2B
- OS Support: Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun, and FreeBSD
- SUN/Mac keyboard support and emulation
UPC: 672792151668 In the Box ATEN 4-Port USB Dual-View KVMP Switch 4 x KVM Cables (Audio/Video) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port USB Dual-View KVMP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1744 Specs | Computer Connections | 4 | | Port Selection | Hotkeys, pushbutton
USB Port/Audio Port Selection: Hotkey | | Connectors | Console Ports:
Keyboard: 1 x USB Type A female (white)
Video: 2 x HDB-15 female (blue)
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini Stereo Jack Female (green)
Microphone: 1 x Mini Stereo Jack Female (Pink)
KVM Ports:
Speaker/Microphone/ Video1: 4 x SPHD-15 male (yellow)
Keyboard/Mouse/ Video2: 4 x SPHD-15 female (green)
USB Hub: 2 x USB Type A female (white)
F/W upgrade: 1 x RJ11 female (black)
Power: 1 x DC jack (black) | | Switches | Port: 4 x Pushbutton | | LEDs | On Line/Selected: 4 (orange)
USB Link: 4 (green) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | 2048 x 1536, DDC2B | | Scan Interval | 1 to 99 sec | | Power Consumption | 5 VDC, 1.35 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 10.6 x 3.5 x 2.2" (27.0 x 8.8 x 5.5 cm) | | Weight | 2.3 lb (1.0 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 12.9 x 8.5 x 4.2" |
