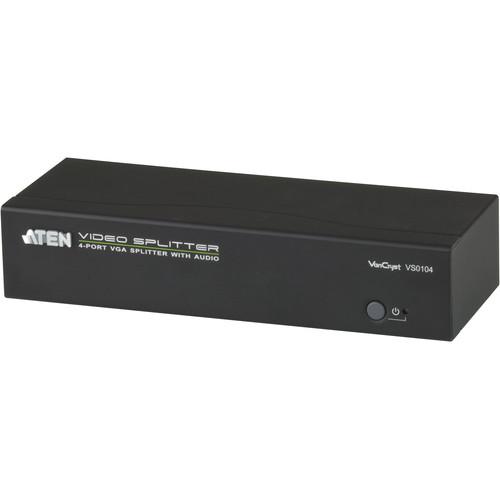

Product description The 4-Port VGA Splitter with Audio from ATEN is a VGA splitter that allows a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The splitter supports up to 450 MHz of video bandwidth providing video quality with supported resolutions up to 1920x1440. The splitter features serial control through the built-in RS-232 port which allows the splitter to be controlled through a high-end controller or PC. Designed for us in conference rooms, training facilities, and multi-display broadcasting the splitter can be cascaded up to three levels allowing the single video signal to be sent across numerous video displays while still sustaining high quality resolutions. - 1 video input to 4 video outputs
- Video quality up to 1920 x 1440 at 60 Hz
- Supports up to 450 MHz bandwidth
- Supports VGA, SVGA, UXGA, WUXGA, and multisync
- Selects the optimum EDID settings for smooth power-up and highest quality display
- Provides up to 64 video displays
- RS-232 serial port for command controls
- Plug-and-play, no software installation required
UPC: 672792003899 In the Box ATEN 4-Port VGA Splitter with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4-Port VGA Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS0104 Specs | | | Interface | 1 x HDB-15 male (blue) | | Impedance | 75 ohms | | Max Distance | 5.9' / 1.8 m | | | | Interface | 4 x HDB-15 female (blue) | | Impedance | 75 ohms | | | | Bandwidth | 450 MHz (maximum) | | Resolution | Up to 1920 x 1440 | | Max Distance | 98.4' / 30.0 m | | | | Input | 1 x Mini stereo jack female (green) | | Output | 4 x Mini stereo jack female (green) | | | | RS-232 | 1 x DB-9 female (black) | | | | EDID | EDID Mode: Port 1 / audio / default | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 1.2 W | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity (Non-condensing) | 0-80% RH | | Dimensions (LxWxH) | 7.9 x 3.0 x 1.7" / 20.0 x 7.6 x 4.4 cm | | Weight | 1.50 lb / 0.68 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 2.6" |
