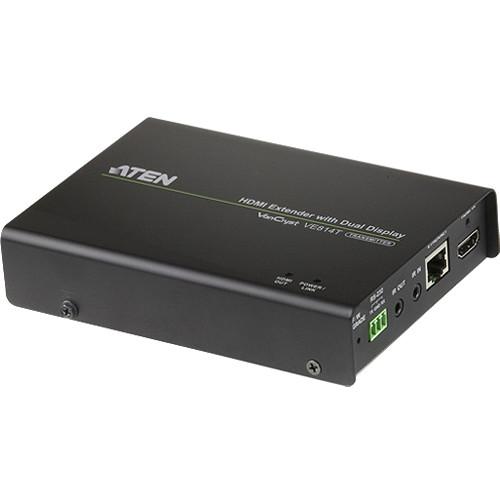

Product description Provided by third party: Place your HDMI displays away from your HDMI source devices with the VE814T HDMI transmitter over single CAT 5 with dual display. Connecting to the VE814R receiver via affordable and easily available CAT 5e/6 cable, your media can be streamed to up to three HDMI displays - dual displays connected to the receiver and another to the transmitter. The VE814T also carries an Ethernet pass-through port for Internet connectivity, as well as RS-232 and IR signaling pass-through, which allows you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814T is HDMI and HDCP compatible, ensuring superior video quality and peak performance from your HDMI displays.
- Key Features
-
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology, using only one CAT 5 cable to connect the transmitter and receiver
- Anti-jamming ? resists signal interference during high-quality video transmissions using HDBaseT technology
- Supports one local and two remote displays
- Supports two IR channels for bi-directional IR signal transmission
- Extends Ethernet communication with pass-through port
- HDMI, HDCP compatible
- Long distance transmission
- Supports wide screen
- Supports high resolutions
- Supports fast bandwidth for high-performance video
- RS-232 serial port for serial device peripherals, such as touchscreens, bar coders scanners, and so on
- Easy to install ? no software required
- Rack mountable
UPC: 672792006791 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4K HDMI HDBaseT Class A Transmitter with Dual Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE814T Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 4096 x 2160 @ 60 Hz | | Max Video Bandwidth | 340 MHz | | Max Transfer Distance | 328 ft | | Features | HDCP compliant, 3D support, 4K resolution support, HDBaseT technology, 2K resolution support, 8KV/15KV ESD Protector | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female
1 x HDMI (input) - 19 pin HDMI Type A female
1 x RS-232 - terminal block
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack
1 x HDBaseT (input) - RJ-45
1 x management - RJ-45 | | | | Included Accessories | IR receiver | | Mounting Kit | Included | | Compliant Standards | RoHS, WEEE | | | | Power Device | External power adapter | | Power Consumption Operational | 8.5 Watt | | | | Width | 4.1 in | | Depth | 5.8 in | | Height | 1.2 in | | Weight | 16.22 oz | | | | Min Operating Temperature | 32
