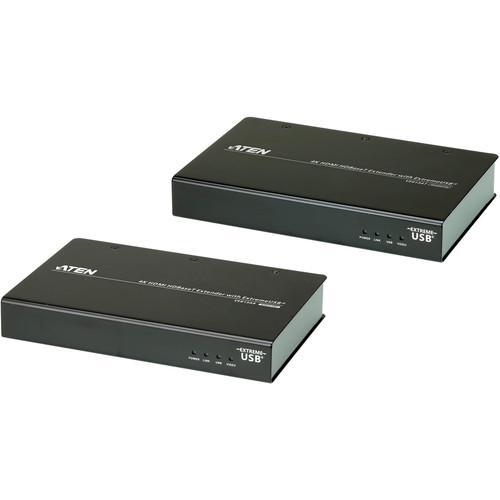

User Manual for ATEN 4K HDMI HDBaseT Extender Set with ExtremeUSB Click to enlarge the picture
Contents of the user manual for the ATEN 4K HDMI HDBaseT Extender Set
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN 4K HDMI HDBaseT Extender Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
- Key Features
-
- Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
- Anti-jamming - high quality video transmissions via HDBaseT technology that resists signal interference
- Supports Dolby True HD and DTS HD Master Audio
- ExtremeUSB - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- USB 2.0 Support - connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows, OS X, and Linux
- Rack-mountable
Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4K HDMI HDBaseT Extender Set with ExtremeUSB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE813A Specs | | | Device Type | Video/audio/USB extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Data Transfer Rate | 10.2 Gbps | | Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz | | Max Video Bandwidth | 340 MHz | | Max Transfer Distance | 328 ft | | Features | 3D support, 4K resolution support, 8KV ESD Protector, metal housing, Dolby TrueHD support, DTS-HD Master Audio support, ExtremeUSB technology | | Compliant Standards | USB 2.0 | | | | Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female
1 x HDMI (output) - 19 pin HDMI Type A female
3 x USB 2.0 (output) - Type A female
1 x USB 2.0 (input) - Type B | | | | Cables Included | 1 x USB cable - 6 ft
1 x HDMI cable - 6 ft | | | | Power Device | External power adapter | | Installed Qty | 2 | | | | Width | 4.6 in | | Depth | 7.2 in | | Height | 1.1 in | | | | Min Operating Temperature | 32
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
