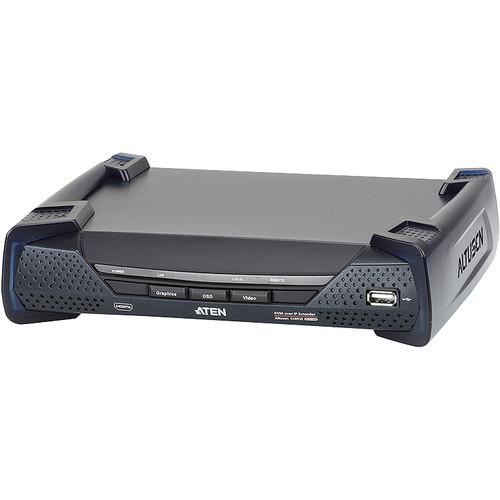

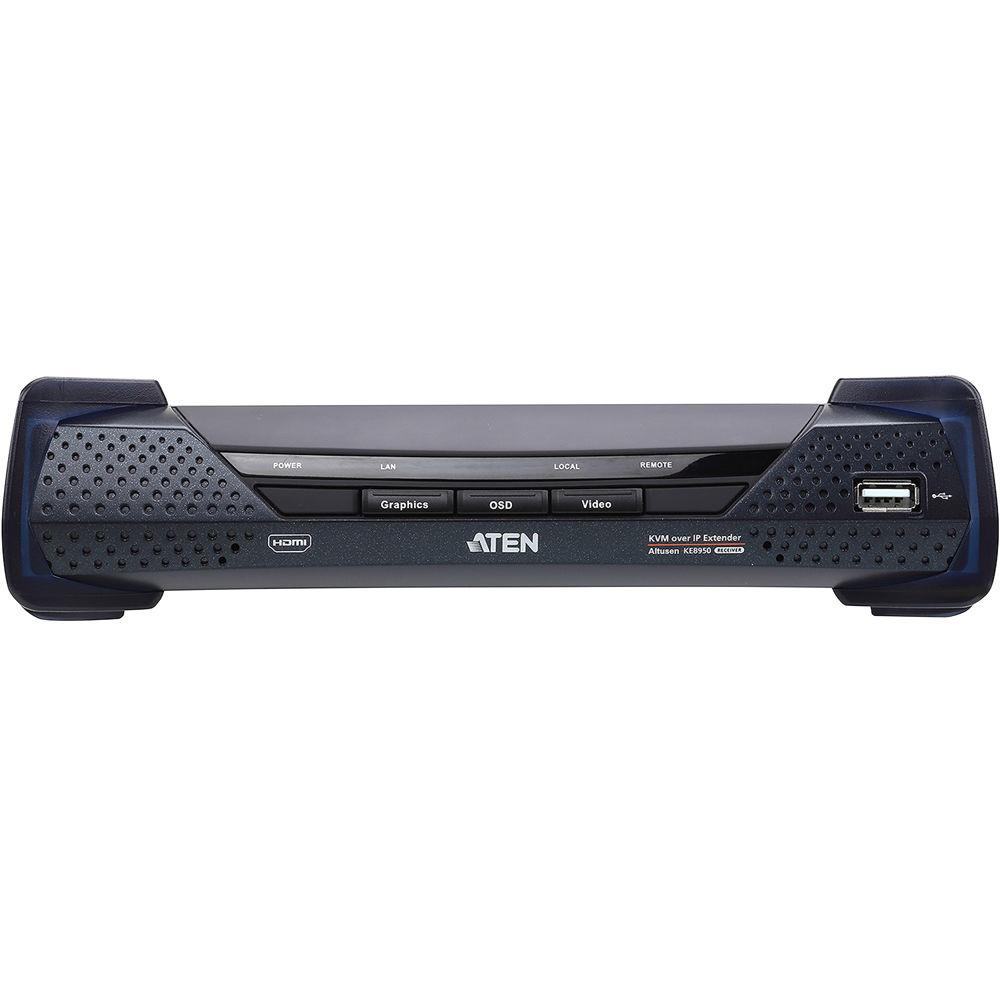

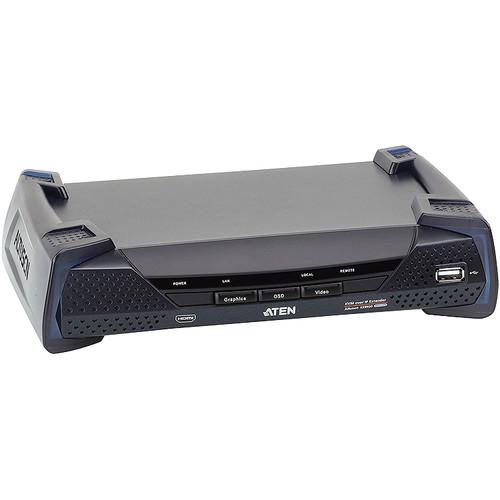

User Manual for ATEN 4K HDMI KVM over IP Extender Receiver Click to enlarge the picture
Contents of the user manual for the ATEN 4K HDMI KVM over IP
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
 |
User manual for the ATEN 4K HDMI KVM over IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: Utilizing expertise in over IP KVM solutions, KE8950 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8950 also support 1 Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission.
The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-topoint, and multipoint-to-multipoint administration. KE8950 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.
Implementing the KE Matrix Management Software (CCKM) with KE8950, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE series Extenders with the CCKM management software, such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.
- Key Features
-
- Ultra High Definition (UHD) video quality - up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
- Support interlaced video (1080i)
- Support standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30 Hz
- Support stereo speakers and stereo microphone
- USB virtual media support
- Auto-MDIX - automatically detects cable type
- Built-in 8 kV/15 kV ESD protection and 1 kV surge protection
- Fanless design for silent operations that are energy efficient
- Hot pluggable
- Upgradeable firmware
UPC: 672792007439 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4K HDMI KVM over IP Extender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

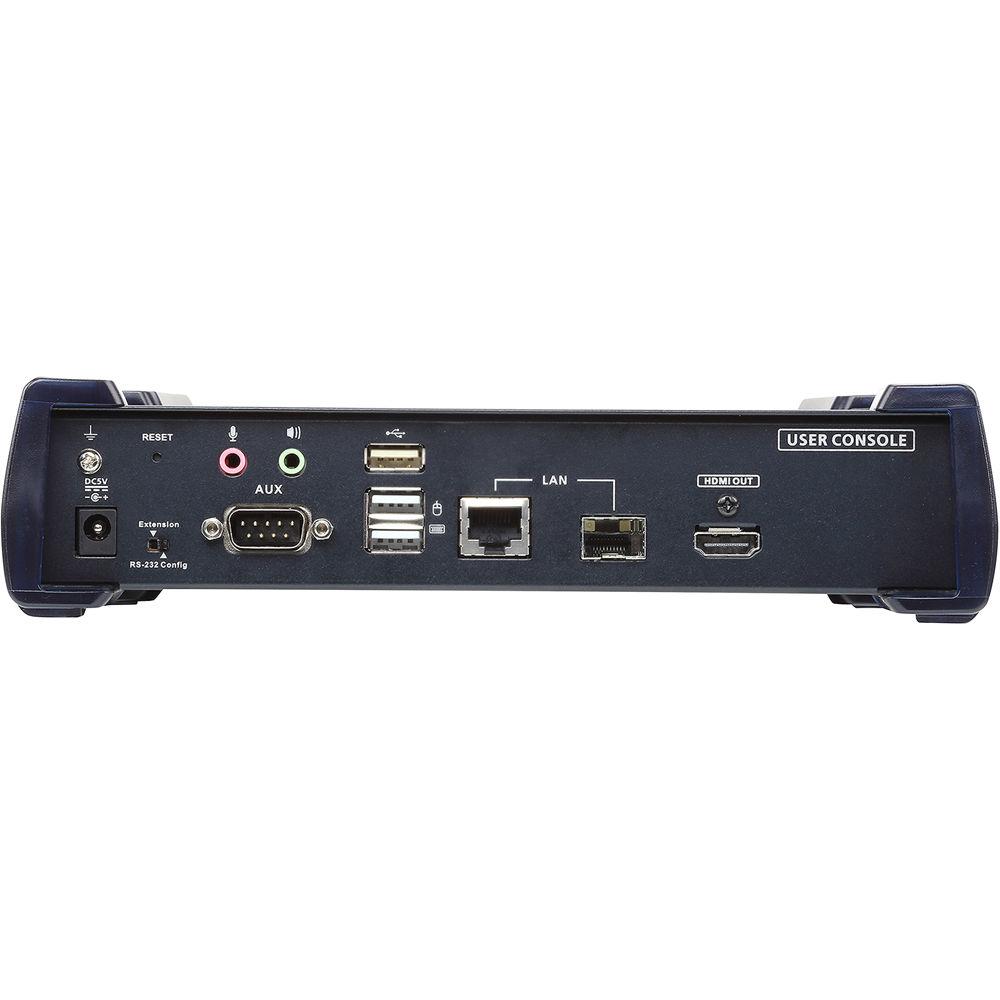

Technical parametersATEN KE8950R Specs | | | Device Type | KVM / audio / serial / USB extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Remote Management Protocol | HTTP, CLI | | Keyboard / Mouse Interface | USB | | Max Resolution | 3840 x 2160 @ 30 Hz | | Status Indicators | Power, status, LAN | | Features | On-Screen Display, LDAP support, auto-uplink (auto MDI/MDI-X), manageable, firmware upgradable, Virtual Media support, RADIUS support, reset button, fanless, 4K resolution support, 8KV ESD Protector, 15KV ESD Protector, 2K resolution support, 36-bit Deep Color support, AES encryption, EDID Expert, 1080i resolution support, 1KV surge protection | | Compliant Standards | HDCP 1.4 | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A female
2 x USB - Type A female
2 x USB keyboard / USB mouse - Type A female
1 x headphones / speakers - mini jack female
1 x microphone - mini jack female
1 x RS-232 - DB-9 male
1 x Ethernet 1000 - SFP female
1 x network - RJ-45 female | | | | Included Accessories | HDMI LockPro | | Rack Mounting Kit | Optional | | Compliant Standards | AES, HDCP 1.4 | | | | Power Device | External power adapter | | Power Consumption Operational | 5.65 Watt | | | | Width | 9 in | | Depth | 6.8 in | | Height | 2.2 in | | Weight | 2.71 lbs | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
