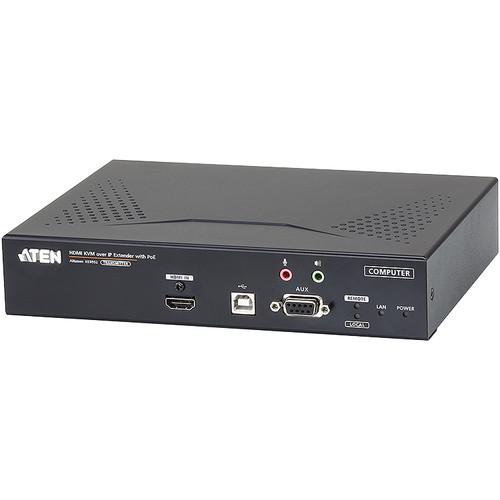

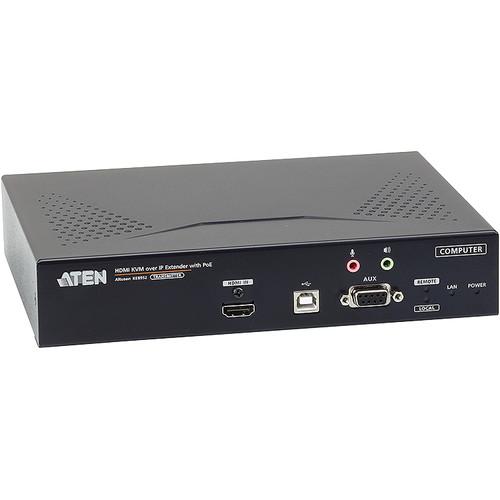

User Manual for ATEN 4K HDMI KVM over IP Extender Transmitter with PoE Click to enlarge the picture
Contents of the user manual for the ATEN 4K HDMI KVM over IP
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN 4K HDMI KVM over IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: Utilizing expertise in over IP KVM solutions, KE8952 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8952 KVM over IP extenders support one HDMI monitor at each end, providing a greatly improved video display image with high video resolution. KE8952 also supports 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission. Furthermore, the KE8952 features Power over Ethernet (PoE) function, the power can be supplied through a PoE network switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.
- Key Features
-
- Supports interlaced video
- Supports standard HDMI resolutions
- Supports stereo speakers and stereo microphone
- Auto-MDIX - automatically detects cable type
- Built-in ESD protection and surge protection
- Fanless design for silent operations that are energy efficient
- Hot pluggable
- Upgradeable firmware
- Rack mountable
- Supports connection via Gigabit Ethernet port
- Supports SFP module
- Supports Power over Ethernet (PoE) function
UPC: 672792007453 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4K HDMI KVM over IP Extender Transmitter with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

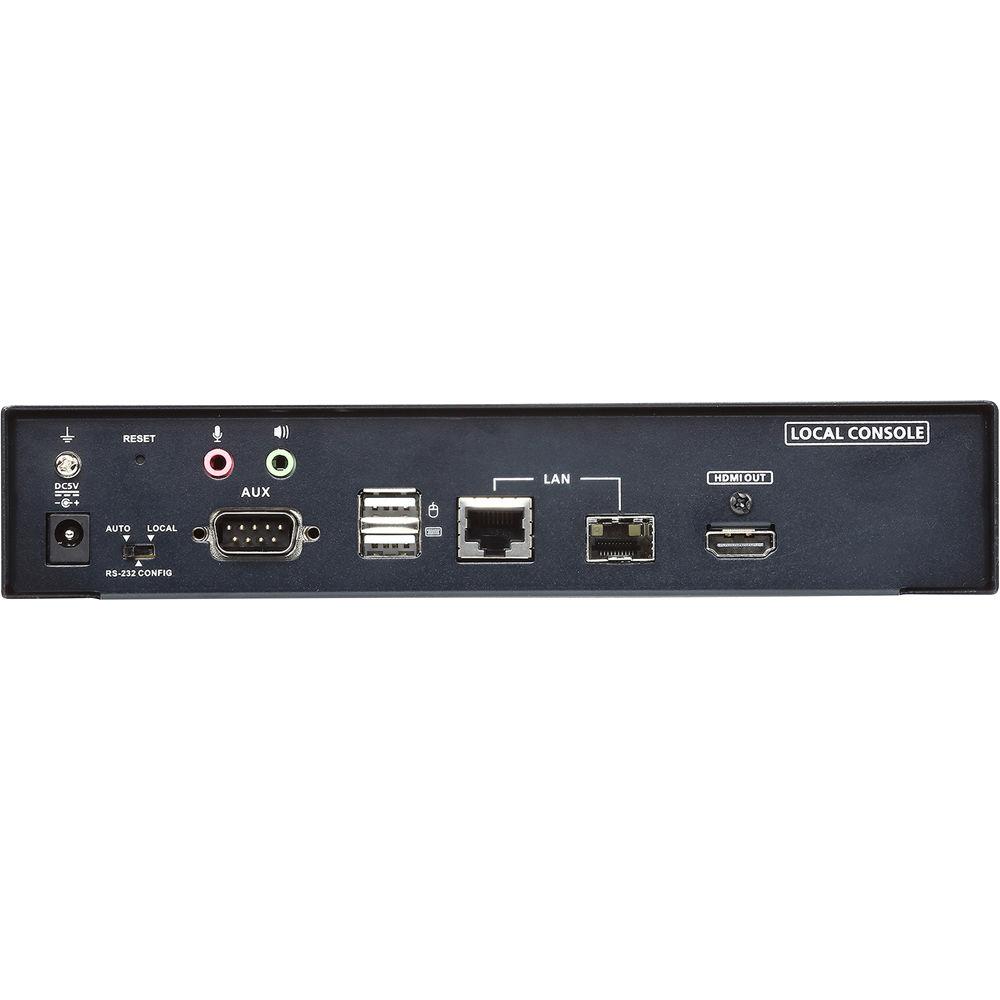

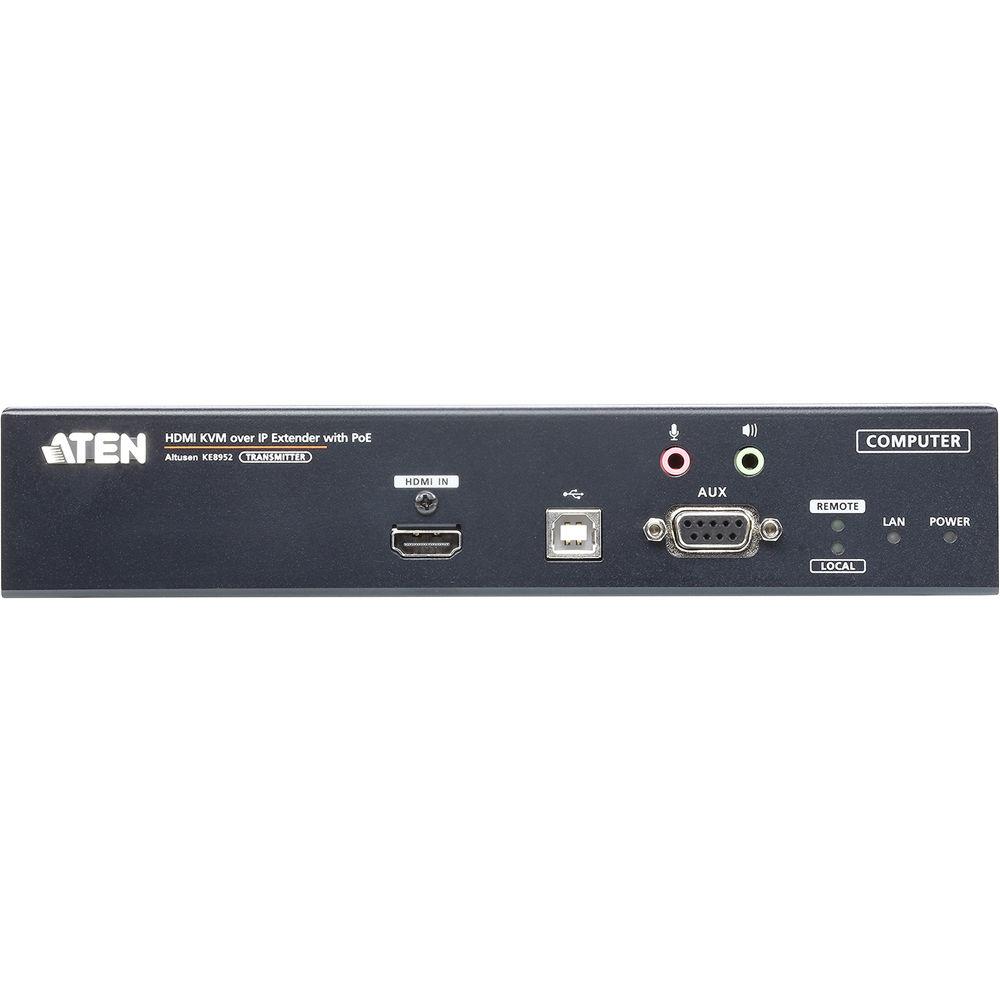

Technical parametersATEN KE8952T Specs | | | Device Type | KVM extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Remote Management Protocol | CLI | | Max Resolution | 3840 x 2160 @ 30 Hz | | Status Indicators | Power, status, LAN | | Features | On-Screen Display, power over Ethernet (PoE), LDAP support, auto-uplink (auto MDI/MDI-X), manageable, firmware upgradable, Virtual Media support, RADIUS support, fanless, 4K resolution support, 8KV ESD Protector, 15KV ESD Protector, EDID Expert, 1KV surge protection | | Compliant Standards | IEEE 802.3af, IEEE 802.3at | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female
2 x USB keyboard / USB mouse - Type A female
1 x network - RJ-45 female
1 x network - SFP female
1 x RS-232 - DB-9 male
2 x audio - mini jack
2 x microphone - mini jack
1 x HDMI (input) - Type A female
1 x USB - Type B female
1 x RS-232 - DB-9 female | | | | Compliant Standards | AES, HDCP 1.4 | | | | Width | 8.5 in | | Depth | 6.4 in | | Height | 1.6 in | | Weight | 2.87 lbs | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
