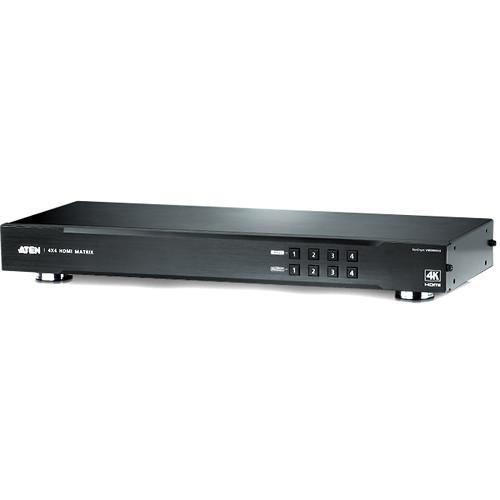

Product description The 4x4 HDMI Matrix Switch from ATEN supports 4K UHD resolution (3840 x 2160) and DCI resolution (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) respectively. It offers an easy way to route any of four HDMI video sources to any of four HDMI displays and can be operated through front-panel pushbuttons, IR remote, and RS-232 control. The switch is suitable for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores, and more. -
- Connect any of four HDMI sources to any of four HDMI displays
- EDID Expert selects optimum EDID settings for smooth power-up, high-quality display, and use of the best video resolution across different screens
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 3.4 Gbits for flawless 4K output
- HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- Supports ATEN's LockPro HDMI cable lock for secure HDMI cable connections
- ESD protection for HDMI
- Firmware upgradeable
- 1U rack mountable design
UPC: 672792403644 In the Box ATEN 4x4 4K UHD HDMI Matrix Switch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 4x4 4K UHD HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM0404HA Specs | | | Interfaces | 4 x HDMI type-A female | | Impedance | 100 Ohms | | Maximum Distance | 5.9' (1.8 m) | | | | Interfaces | 4 x HDMI type-A female | | Impedance | 100 Ohms | | Maximum Distance | 49' (15 m) | | | | Maximum Data Rate | 10.2 Gbps (3.4 Gbps per lane) | | Maximum Pixel Clock | 340 MHz | | Compliance | HDMI (3D, 4K, Deep Color)
HDCP 1.4 compatible
Consumer Electronics Control (CEC) | | Maximum Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) | | Maximum Distance | Up to 49' (15 m) | | | | RS-232 | Connector: 1 x DB-9 female
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1 | | USB | 1 x Micro-USB for firmware upgrade | | IR | 1 x 1/8" (3.5 mm) stereo jack | | EDID | EDID Mode: Default / Port1 / Remix | | | | Connectors | 1 x DC jack | | Consumption | 5 VDC, 10.58 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity (Non-Condensing) | 0 to 80% RH | | | | Housing | Metal | | Dimensions | 17.21 x 6.41 x 1.73" (43.72 x 16.29 x 4.40 cm) | | Weight | 4.45 lb (2.02 kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 21.1 x 9.1 x 4.8" |
