User Manual for ATEN 8-Port PS 2 KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 8-Port PS 2 KVM Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 8-Port PS 2 KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 8-Port PS/2 KVM Switch from ATEN allows for eight computers to be controlled from a single PS/2 console, or up to 512 computers via a 3-level cascade. The switch is designed to help manage the needs of server networks and the computers can be accessed through the on-screen display or by using the front panel push-buttons, or hotkeys. The keyboard and mouse have emulation to provide error-free booting and no installation software is required for this switch. The necessary cables and adapters are included. - One console controls up to eight directly connected computers, or via cascading up to 512 computers
- Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
- Plug-n-Play monitor support
- LEDs allow for monitoring

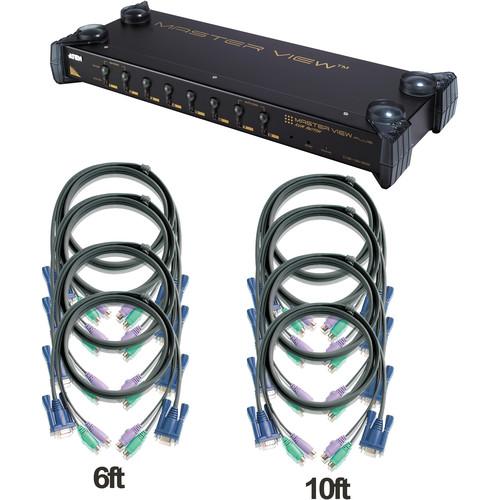

UPC: 672792420139 In the Box ATEN 8-Port PS/2 KVM Switch (with PS/2 Cables) Power Adapter Rack Mount Kit 4 x KVM Cables 6.0' (1.8 m) 4 x KVM Cables 10.0' (3.0 m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port PS 2 KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS9138KIT Specs | Computer Connections | Direct: 8
Max: 512 via cascade | | Console Port Connectors | Keyboard: 1 x 6-pin Mini-DIN Female (Purple)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x 6-pin Mini-DIN Female (Green) | | KVM Port Connectors | Keyboard: 8 x 6-pin Mini-DIN Female (Purple)
Video: 8 x HDB-15 Male (Blue)
Mouse: 8 x 6-pin Mini-DIN Female (Green) | | Power Connector | 1 x DC Jack (Black) | | Port Selection | Hotkey, Push-button, OSD | | Switches | 8 x Push-button | | LEDs | On Line: 8 x (Green)
Selected: 8 x (Orange)
Power: 1 x (Blue) | | Emulation | Keyboard/Mouse: PS/2 | | Video Resolution | 1920 x 1440; DDC2B | | Scan Interval | 3,5,10,15,20,30,40,60 sec | | Enclosure | Metal | | Power Consumption | 9 VDC, 1.08 W | | System Requirements | Computers with PS/2 or serial mouse connections
PS/2 or AT keyboard connections
HDDB15 VGA connection | | Compatible Operating Systems | Windows, Linux, and FreeBSD | | Dimensions (L x W x H) | Switch: 17.7 x 6.7 x 2.6" (45.0 x 17.0 x 6.7 cm) | | Weight | 6.3 lb (2.9 kg) | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 22.1 x 10.4 x 9.4" |
