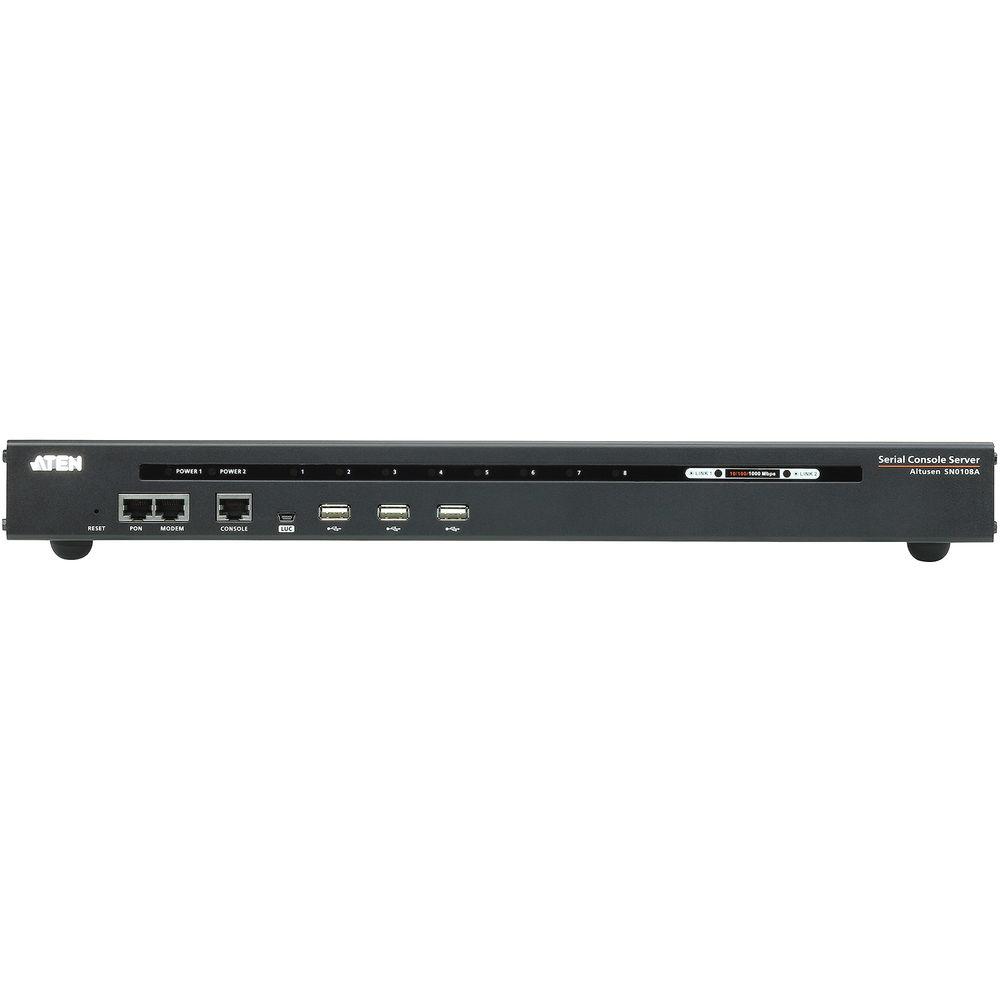

User Manual for ATEN 8-Port Serial Console Server with Dual Power LAN Click to enlarge the picture
Contents of the user manual for the ATEN 8-Port Serial Console Server with
- Product category: Serial RS-422/RS-232 Cards ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Serial RS-422/RS-232 Cards
 |
User manual for the ATEN 8-Port Serial Console Server with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: This serial console server integrates advanced technology with secure enterprise communications. It offers both in-band and out-of-band remote serial console access to servers and network devices. With its comprehensive features, this device helps to maximize IT productivity, provide scalability and reduce operational costs. It is used to connect serial devices to the Ethernet network to meet the needs of demanding applications in industrial control, data acquisition, environment monitoring, and remote facility and equipment management. It offers versatile operation modes including real COM port, TCP server / client, UDP server / client, serial tunnel and virtual modem. It helps transform the capabilities of legacy serial devices to take advantage of the TCP / IP network to allow remote access, configuration, and management of the serial devices from anywhere in the world over the Internet. Access rights and privilege control can be applied to individual ports. Consolidated authentication simplifies password management. Data encryption is provided. Logging and alerting help fast resolution of issues and mitigate risk. Enhanced security functions ensure the compliance of internal security mandates. The ease of use, accessibility and manageability of this console server enables a quick response to changing demands and helps meet your business goals.
- Key Features
-
- Secure in-band and out-of-band network access to serial consoles
- In-band access of Ethernet
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Out-of-band access of dial-up modem
- Modem dial-in / dial-back / dial-out
- Front access USB ports for USB storage or for USB-based PC cards
- LUC port for extra local console access via laptop computer
- Dual Ethernet ports for failover or for dual IP addresses access
- Dual power supply
- Convenient and simple access
- Comprehensive viewer function
- Command filter - administrators can define what commands cannot be executed by users
- Data buffering
- Allows multiple users simultaneously access to the same port
- Selectable mode for multiple simultaneous access
- Configurable user permissions for port access and control
- Configurable group permission for port access and control
- Local and remote authentication and logging
- System log and event logging
- Comprehensive logging and event notification
- Event notification
- Backup / restore system configuration
- Customizable global time zone
- NTP for time server synchronization
- Versatile serial operating modes
UPC: 672792403354 In the Box ATEN 8-Port Serial Console Server with Dual Power/LAN ATEN SN0108A 2 x serial adapter USB cable 4 rubber feet Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port Serial Console Server with Dual Power LAN in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

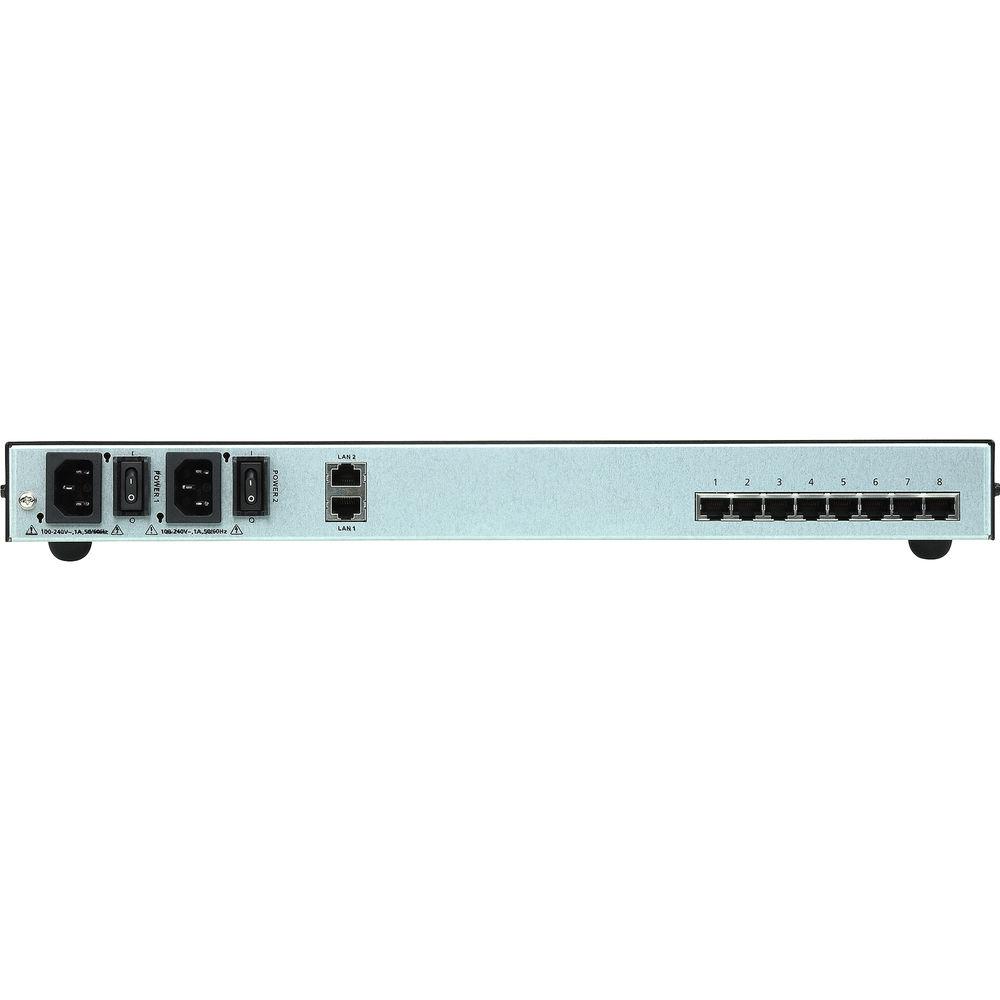

Technical parametersATEN SN0108A Specs | | | Device Type | Console server | | Width | 17.2 in | | Depth | 13 in | | Height | 1.7 in | | Weight | 9.59 lbs | | | | Form Factor | External | | Ports Qty | 8 | | Connectivity Technology | Wired | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 | | Network / Transport Protocol | TCP/IP, UDP/IP, NTP, SMTP, DHCP | | Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH | | Capacity | Simultaneous users: 8 | | Status Indicators | Power, LAN, serial | | Features | Syslog support, MAC address filtering, IPv6 support, IP address filtering, firmware upgradable, modem emulation, event log, SMS alert, SNMP trap, e-mail notification | | Encryption Algorithm | 128-bit SSL, 256-bit SSL | | Authentication Method | Kerberos, RADIUS, TACACS+, LDAP, Active Directory | | | | Interfaces | 8 x RS-232 - RJ-45
2 x 1000Base-T - RJ-45
1 x modem - RJ-45
3 x USB - Type A
1 x mini-USB - Type B
1 x console - RJ-45
1 x PON - RJ-45 | | | | Included Accessories | 4 rubber feet | | Cables Included | 2 x serial adapter
1 x USB cable | | Compliant Standards | RoHS, WEEE, FCC Part 15 A | | | | Power Device | Internal power supply | | Installed Qty | 2 | | Max Supported Qty | 2 | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Software Included | Drivers & Utilities | | OS Required | UNIX, Linux, Microsoft Windows 2000 or later, Microsoft Windows Server 2003, Microsoft Windows Server 2008 | | | | Min Operating Temperature | 32
