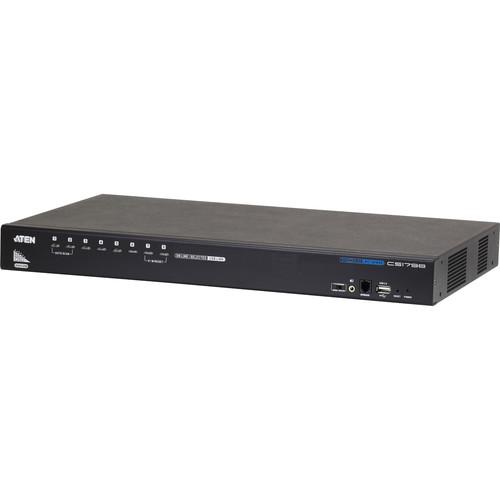

Product description Multi-Monitors: Maximizing Multitasking Read More The black 8-Port USB HDMI KVM Switch from ATEN is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The switch can be cascaded up to three levels to control up to 512 computers all from a single console. It features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The switch comes with ATEN's On-Screen Display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/backup the OSD settings and restore them as needed. It also provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at-a-time basis). - One USB console controls up to 8 HDMI interface computers and two additional USB 2.0 devices
- Cascadable to three levels and control up to 512 computers
- Multi-display feature that stacks up to eight units and display video from up to eight monitors (dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 built-in hub
- Computer selection via front panel pushbuttons, hotkeys, and multi-lingual On-Screen Display (OSD)
- Independent switching of KVM and USB focus
- OSD backup/restore feature enables the administrator to back up the switch's configuration and user profile information
- Video DynaSync technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports up to 1080p/1920 x 1200 at 60Hz
- Supports widescreen resolutions
- Audio enabled full bass response provides a rich experience for 2.1-channel surround sound systems
- Console audio ports on front panel for easy access
- Auto Scan Mode for monitoring all computers
- Multi-platform support like Windows, Linux, Mac, and Sun
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation
- Multi-lingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Multi-lingual keyboard mapping supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
UPC: 672792005565 In the Box ATEN 8-Port USB HDMI KVM Switch Firmware Upgrade Cable Power Adapter Foot Pad Set (4-pcs) Limited 3-Year Warranty Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port USB HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1798 Specs | Computer Connections | Direct: 8
Maximum: 512 (via cascade) | | Port Selection | OSD, hotkeys, pushbuttons, mouse | | Connectors | Console Port:
Keyboard: 1 x USB Type A female (black)
Video: 1 x HDMI female
Mouse: 1 x USB Type A female (black)
Speakers: 2 x Minis stereo jack female (green) (1 x front panel, 1 x rear panel)
KVM Ports:

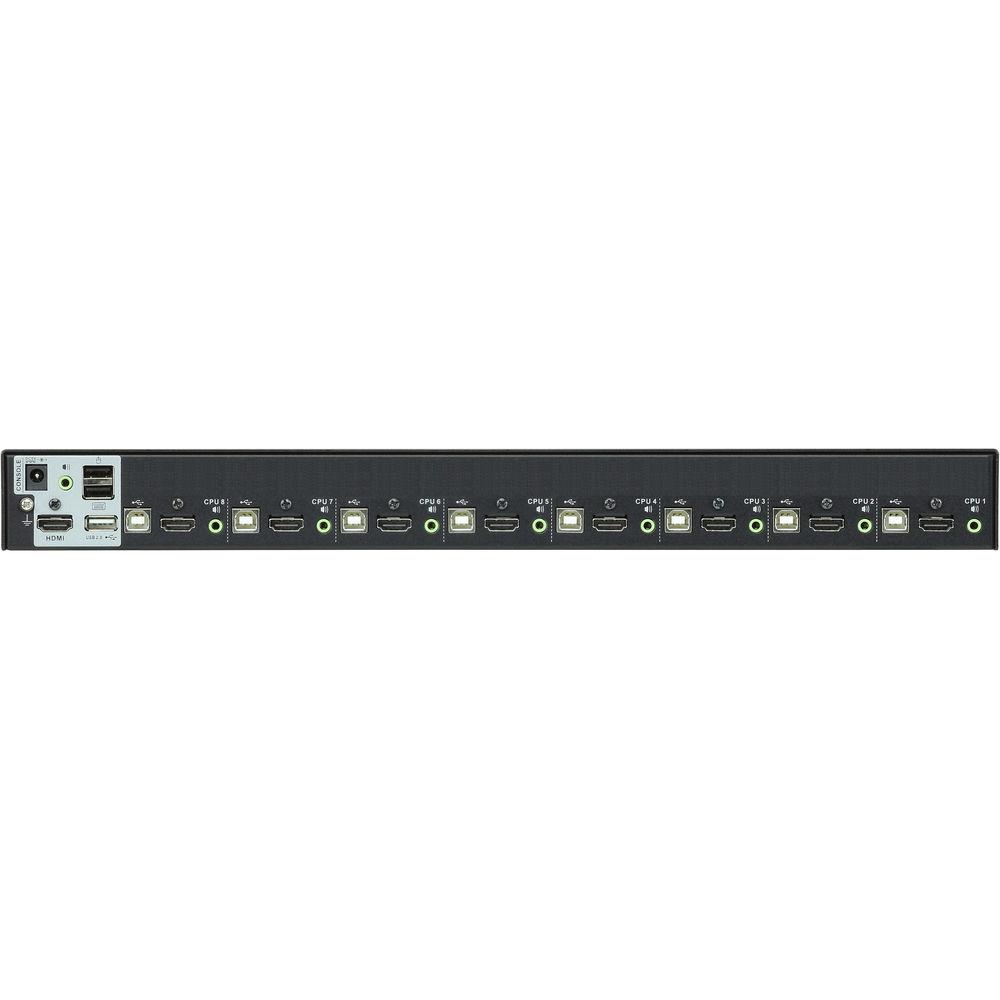

Keyboard/Mouse: 8 x USB Type B female (white)
Video: 8 x HDMI Female (white)
Speaker: 8 x Mini stereo jack female (green)
Firmware upgrade: 1 x RJ-11 female (black)
Power: 1 x DC Jack

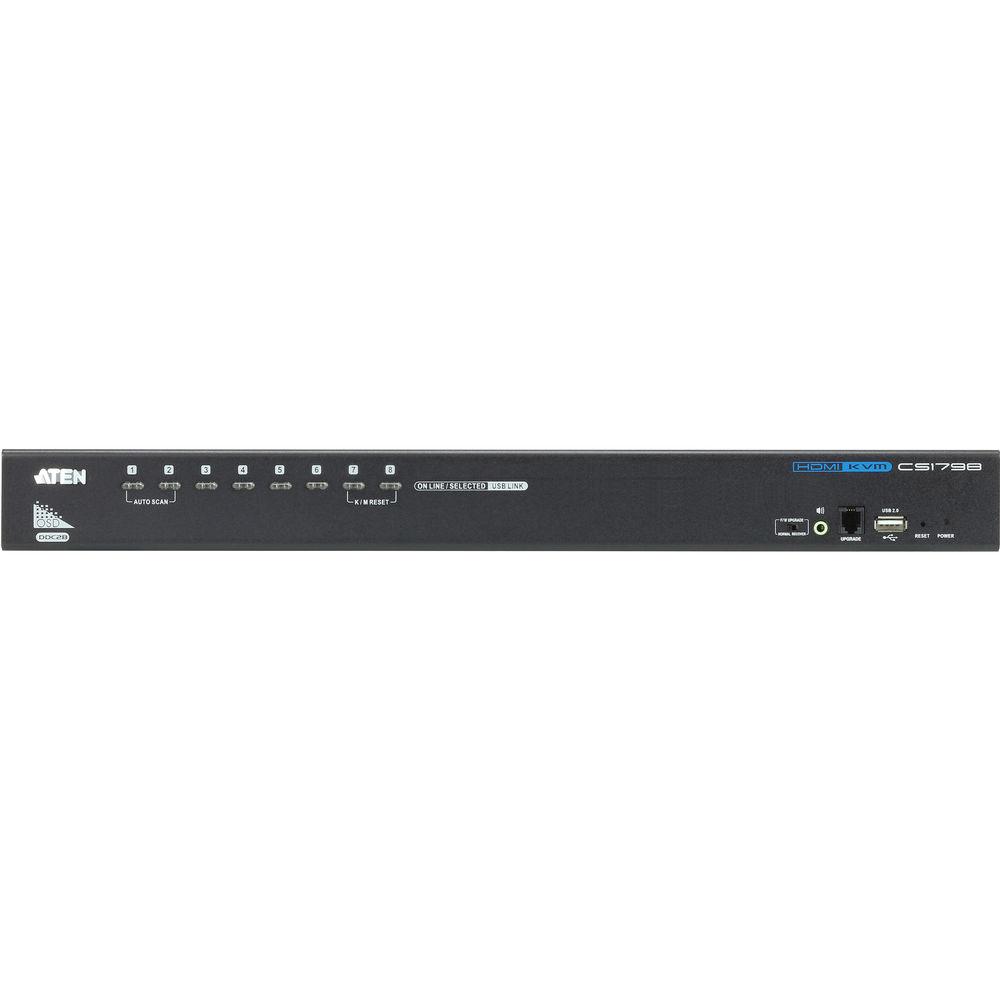

USB 2.0 Hub: 2 x USB Type A female (white) (1 x front panel, 1 x rear panel) | | Switches | Port Selection: 8 x Pushbutton
Reset: 1 x Semi-recessed pushbutton
Firmware Upgrade: 1 x slide switch | | LEDs | On Line/Selected: 8 (orange)
USB Link: 8 (green)
Power: 1 (dark green) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | Up to 1080p/1920 x 1200 at 60Hz | | Scan Interval | 1 to 255 seconds (default 5 seconds) | | Power Consumption | DC 5.0 V, 12.0 W | | Housing | Metal | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Dimensions (L x W x H) | 17.2 x 10.1 x 1.7" (43.7 x 25.6 x 4.4 cm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 19.8 x 12.7 x 5.3" |
