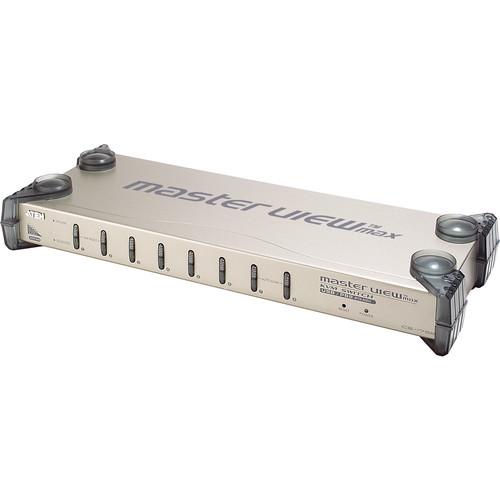

User Manual for ATEN 8-Port USB PS 2-USB KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 8-Port USB PS 2-USB KVM
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
|
User manual for the ATEN 8-Port USB PS 2-USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More czvfqvycrdtxzeuutryutazccvwcwwtb The 4-Port USB Dual-View KVMP Switch from ATEN supports computers with PS/2 or USB interfaces via cables and audio signal function. It also supports 3-tier connection via cascade. With 73 switches, users can control 512 computers. It provides growing enterprises a reliable investment on comprehensive connection and long-term safe use. - One USB console controls eight computers
- Cascadable up to three levels and provides up to 512 computers
- Dual interface supports computers with PS/2 or USB keyboards and mice
- Multiplatform Support: Compatible with all operation platforms PC (Windows, Linux, Mac, and Sun)
- Auto PS/2 and USB interface detection
- Buzzer On/Off via hotkey and OSD
- Computer selection via front panel pushbuttons, hotkeys and OSD
- Superior Video Quality: up to 2048 x 1536, DDC2B
- Speaker and microphone support
- Rack mountable in 19" system rack
- Multiplatform Support: Windows 2000/XP/Vista, Linux, Mac, UNIX, Sun and FreeBSD
UPC: 672792001857 In the Box ATEN 8-Port USB PS/2-USB KVM Switch Power Adapter Rack Mount Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port USB PS 2-USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CS1758 Specs | Computer Connections | Direct: 8
Maximum: 512 (via cascade) | | Port Selection | Hotkeys, pushbutton, OSD | | Connectors | Console Ports:
Keyboard: 1 x USB Type A female (white)
Video: 2 x HDB-15 female (blue)
Mouse: 1 x USB Type A female (white)
Speaker: 1 x Mini stereo jack female (green)
Microphone: 1 x Mini stereo jack female (pink)
KVM Ports:
Keyboard/Mouse/ Video: 8 x SPHD-15 female (yellow)
Speaker: 8 x Mini stereo jack female (green)
Microphone: 8 x Mini stereo jack female (pink)
Fi/W Upgrade: 1 x RJ- 11 female (black)
Power: 1 x DC jack (black) | | Switches | Port: 4 x Pushbutton
Fi/W Upgrade: 1 x Slide
Reset: 1 x Semi-recessed pushbutton | | LEDs | On Line: 8 (orange) Selected: 8 (orange)
Power: 1 (blue) | | Emulation | Keyboard/Mouse: USB | | Video Resolution | 2048 x 1536, DDC2B | | Scan Interval | 1 to 255 sec | | Power Consumption | 5 VDC, 3.4 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Humidity | 0 to 80% RH (non-condensing) | | Housing | Metal | | Dimensions (L x W x H) | 17.2 x 6.3 x 1.7" (43.7 x 16.1 x 4.4 cm) | | Weight | 6.0 lb (2.7 kg) | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 21.2 x 9.4 x 4.9" |
