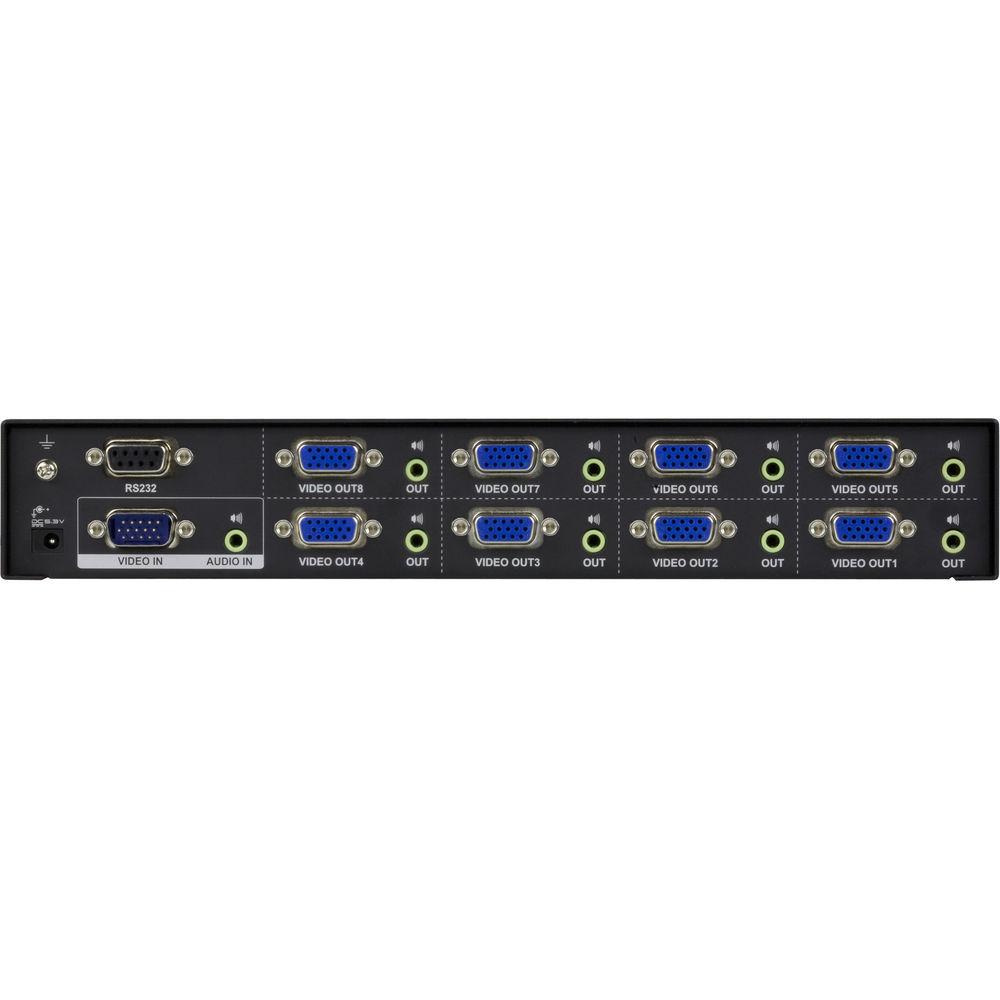

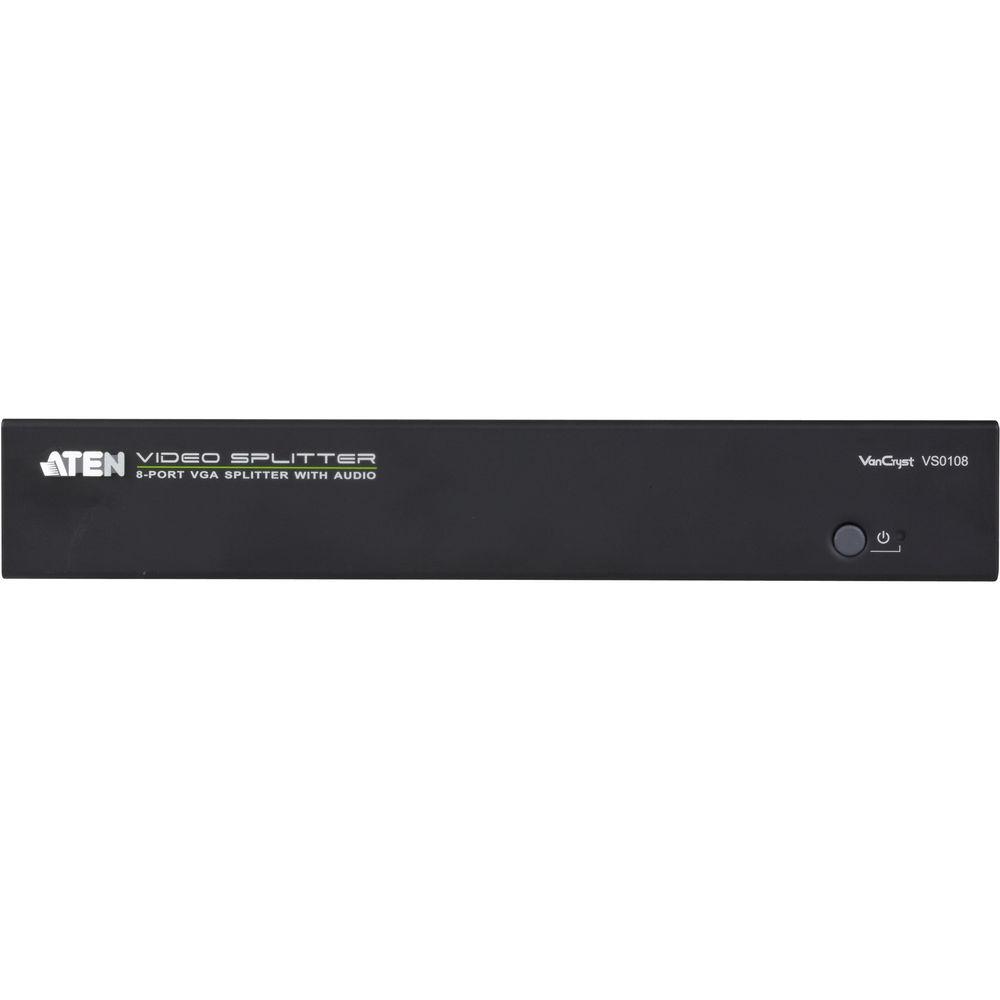

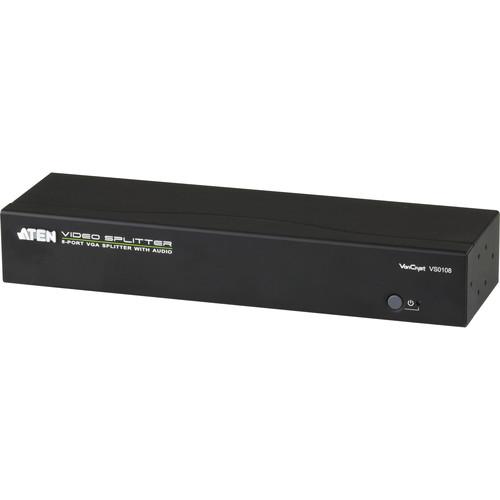

User Manual for ATEN 8-Port VGA Splitter with Audio Click to enlarge the picture
Contents of the user manual for the ATEN 8-Port VGA Splitter with Audio
- Product category: Distribution Amplifiers (DA's) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Distribution Amplifiers (DA's)
 |
User manual for the ATEN 8-Port VGA Splitter with Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The 8-Port VGA Splitter with Audio from ATEN is a VGA splitter that allows a single VGA video and audio signal to be distributed to eight output displays with independent stereo control. The splitter supports up to 400 MHz of video bandwidth providing video quality with supported resolutions up to 1920x1440. The splitter features serial control through the built-in RS-232 port which allows the splitter to be controlled through a high-end controller or PC. Designed for us in conference rooms, training facilities, and multi-display broadcasting the splitter can be cascaded up to three levels allowing the single video signal to be sent across numerous video displays while still sustaining high quality resolutions. - 1 video input to 8 video outputs
- Video quality up to 1920 x 1440 at 60 Hz
- Supports up to 400 MHz bandwidth
- Supports VGA, SVGA, UXGA, WUXGA, and multisync
- Selects the optimum EDID settings for smooth power-up and highest quality display
- Provides up to 512 video displays
- RS-232 serial port for command controls
- Plug-and-play, no software installation required
UPC: 672792003905 In the Box ATEN 8-Port VGA Splitter with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port VGA Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS0108 Specs | | | Interface | 1 x HDB-15 male (blue) | | Impedance | 75 ohms | | Max Distance | 5.9' / 1.8 m | | | | Interface | 8 x HDB-15 female (blue) | | Impedance | 75 ohms | | | | Bandwidth | 400 MHz (maximum) | | Resolution | Up to 1920 x 1440 | | Max Distance | 98.4' / 30.0 m | | | | Input | 1 x Mini stereo jack female (green) | | Output | 8 x Mini stereo jack female (green) | | | | RS-232 | 1 x DB-9 female (black) | | | | EDID | EDID Mode: Port 1 / audio / default | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 2.3 W | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity (Non-condensing) | 0-80% RH | | Dimensions (LxWxH) | 7.9 x 3.0 x 1.7" / 20.0 x 7.6 x 4.4 cm | | Weight | 1.92 lb / 0.87 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 2.7" |
