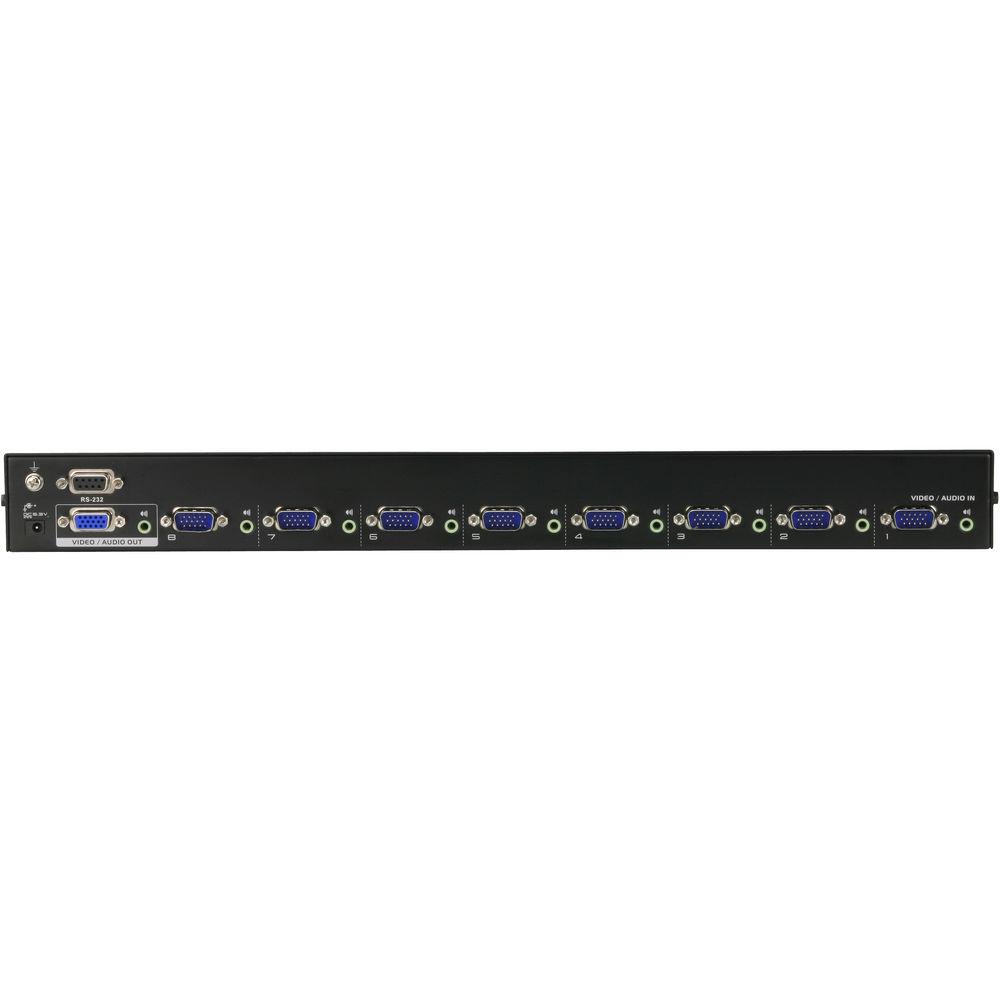

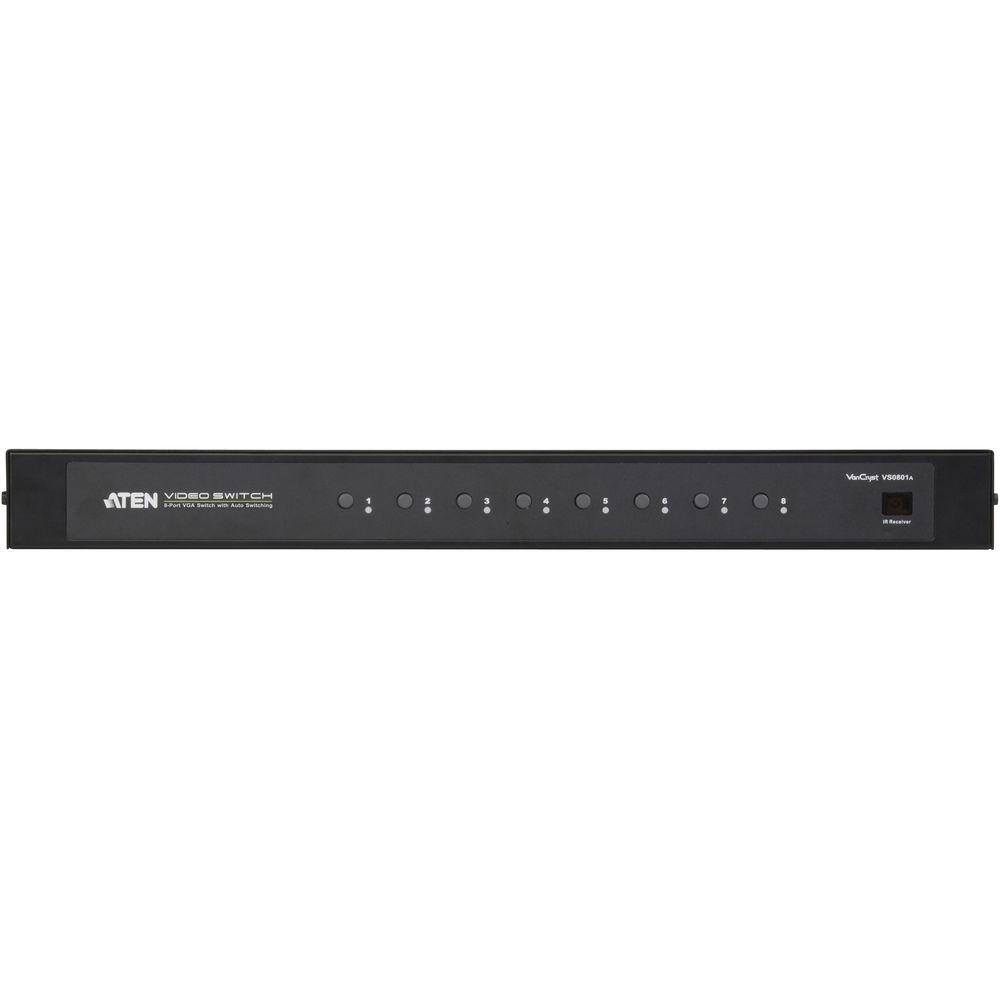

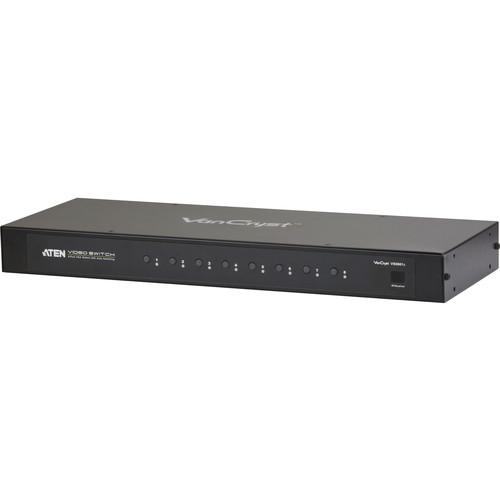

User Manual for ATEN 8-Port VGA Switch with Auto Switching Click to enlarge the picture
Contents of the user manual for the ATEN 8-Port VGA Switch with Auto
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN 8-Port VGA Switch with Auto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The 8-Port VGA Switch with Auto Switching from ATEN connects eight audio/video source notebooks to a single monitor or projector with full audio. It enables you to quickly switch between devices for presentation occasions where multiple audio/video playing are simultaneously required, such as meeting rooms, media centers, class rooms, and more.The VS0801A has a built-in bi-directional RS-232 serial port for high-end system control and advanced RS-232 control. The ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as Power on Detection, Auto Switching, and Pushbutton Lock. The IR remote control, convenient front panel pushbuttons, and new port switching VGA cable allow you to toggle between VGA/Audio sources, while the front panel LEDs indicate the source device at a glance. - Display the video output of up to eight computers on a single VGA display
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable* 1
Please Note: *The Port Switching VGA cable does not come with the package and must be purchased separately. close - Built-in bi-directional RS-232 serial port for high-end system control
- RS-232 Control:
Power On Detection: If one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
Auto Switching: Sets the priority for auto switching to a connected port
Pushbutton Lock: Locks use of the front panel pushbuttons - Supports up to 300 MHz bandwidth for optimal video quality
- Enhanced video quality up to 2048 x 1536 @ 60Hz
- Long distance transmission up to 65.0m
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA, and multi-sync monitors
- Video Dyna Sync: ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
- Supports Dynamic DDC to monitor and receive updated EDID information from displays
UPC: 672792004308 In the Box ATEN 8-Port VGA Switch with Auto Switching IR Remote Control Power Adapter Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8-Port VGA Switch with Auto Switching in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS0801A Specs | | | Interface | 8 x HDB-15 male (blue) | | Impedance | 75 ohms | | Distance | Maximum: 5.9' (1.8 m) | | | | Interface | 1 x HDB-15 female (blue) | | Impedance | 75 ohms | | | | Bandwidth | Maximum: 300 MHz | | Resolution | Up to 1920 x 1440 | | Distance | Up to 98.4' (30.0 m) | | | | Input | 8 x mini stereo jack female (green) | | Output | 1 x mini stereo jack female (green) | | | | RS-232 | Connector:
1 x DB-9 female (black)
Baud Rate and Protocol:
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1 | | | | Connector | 1 x DC jack | | Consumption | 5.3 VDC, 1.01 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to +140°F (-20 to +60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | | | Housing | Metal | | Dimensions (LxWxH) | 17.20 x 6.29 x 1.73" (43.70 x 15.98 x 4.40 cm) | | Weight | 4.6 lb (2.1 kg) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 21.3 x 9.4 x 4.8" |
