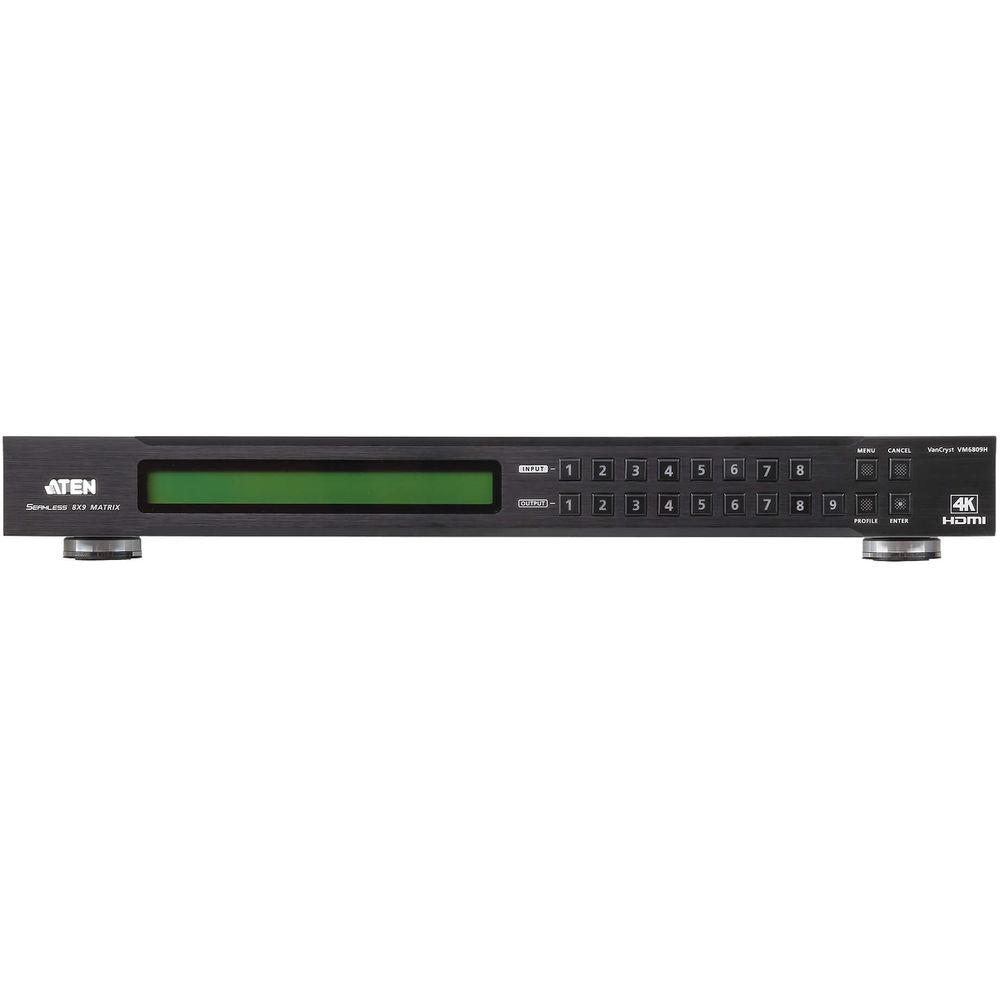

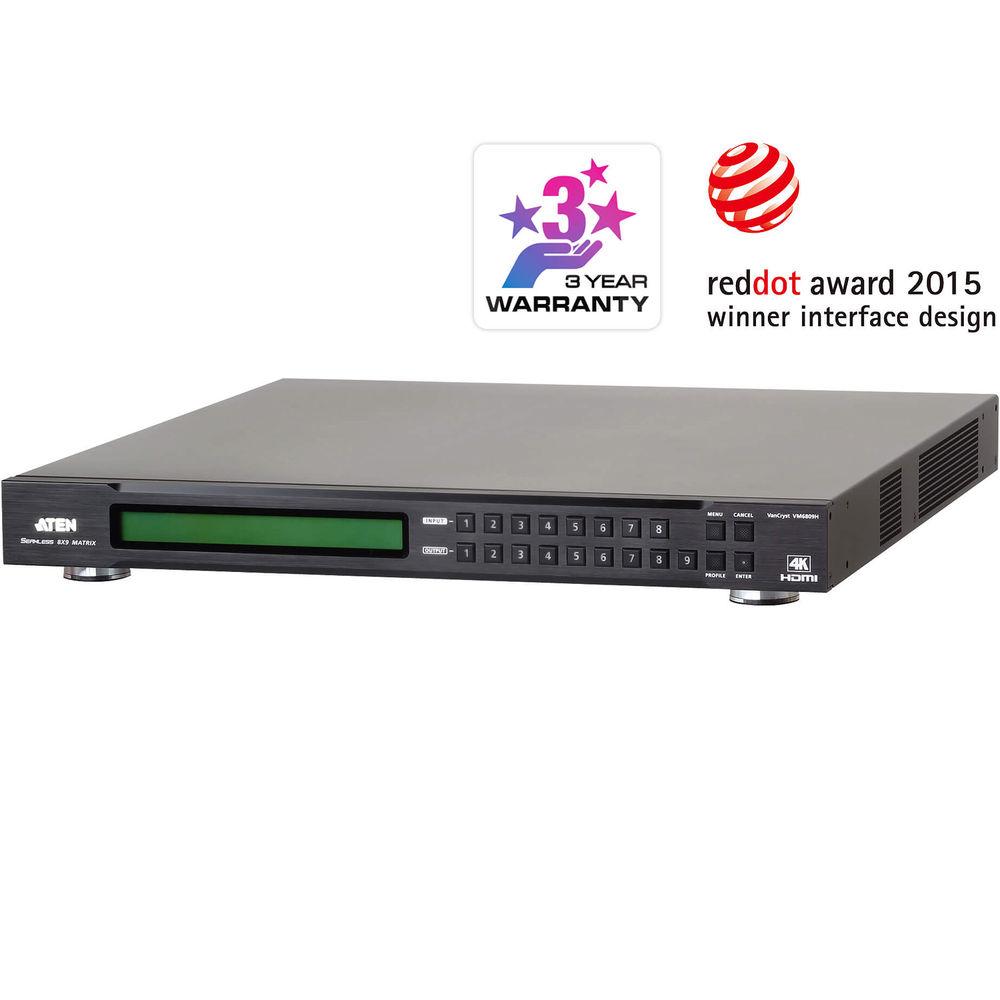

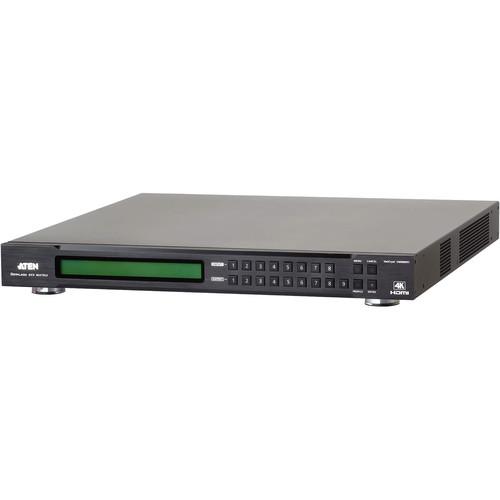

Product description The ATEN 8 x 9 4K HDMI Matrix Switch with Scaler is a professional solution for routing up to 8 HDMI video and audio sources to any 9 HDMI outputs with resolutions up to DCI 4K and UHD. It is well-suited to railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, and security management.
Control of the unit is done via front-panel pushbuttons, RS-232, or Ethernet using the built-in GUI or Telnet. The switch can scale your input video to match your output video, and the seamless switching mode features a near-zero second switch time for stable signal transmissions. The switch supports EDID, allowing you to send the signal to HDMI devices. It is rack-mountable and offers ESD protection. -
- 8 HDMI inputs
- 9 HDMI outputs
- System configuration via front-panel pushbuttons, RS-232 control, or Ethernet connections for web GUI or Telnet
- Features a 4K video scaling function to convert input resolutions to the display's native resolutions
- The Seamless Switch function features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions. Please note that when Seamless Switch is enabled the unit does not support 3D, Deep Color, or interlace formats
- Video wall function allows you to create custom video wall layouts via intuitive web GUI
- The built-in EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- You can create a 4K video wall using lower-resolution displays as the unit allows you to split a 4K signal to four 1080p displays or nine 720p displays to form a 2x2 or 3x3 4K video wall
- FrameSync synchronizes the scaler output frame rate to the input signal frame rate
- The HDMI inputs and outputs are 3D, Deep Color, 4K, and HDCP 2.2 compatible
- Consumer Electronics Control (CEC) supported
- Audio can be extracted from the HDMI stream
- ESD protection for HDMI
- Rack-mountable (1 RU design)
In the Box ATEN 8 x 9 4K HDMI Matrix Switch with Scaler AC Power Cord Rackmount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 8 x 9 4K HDMI Matrix Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

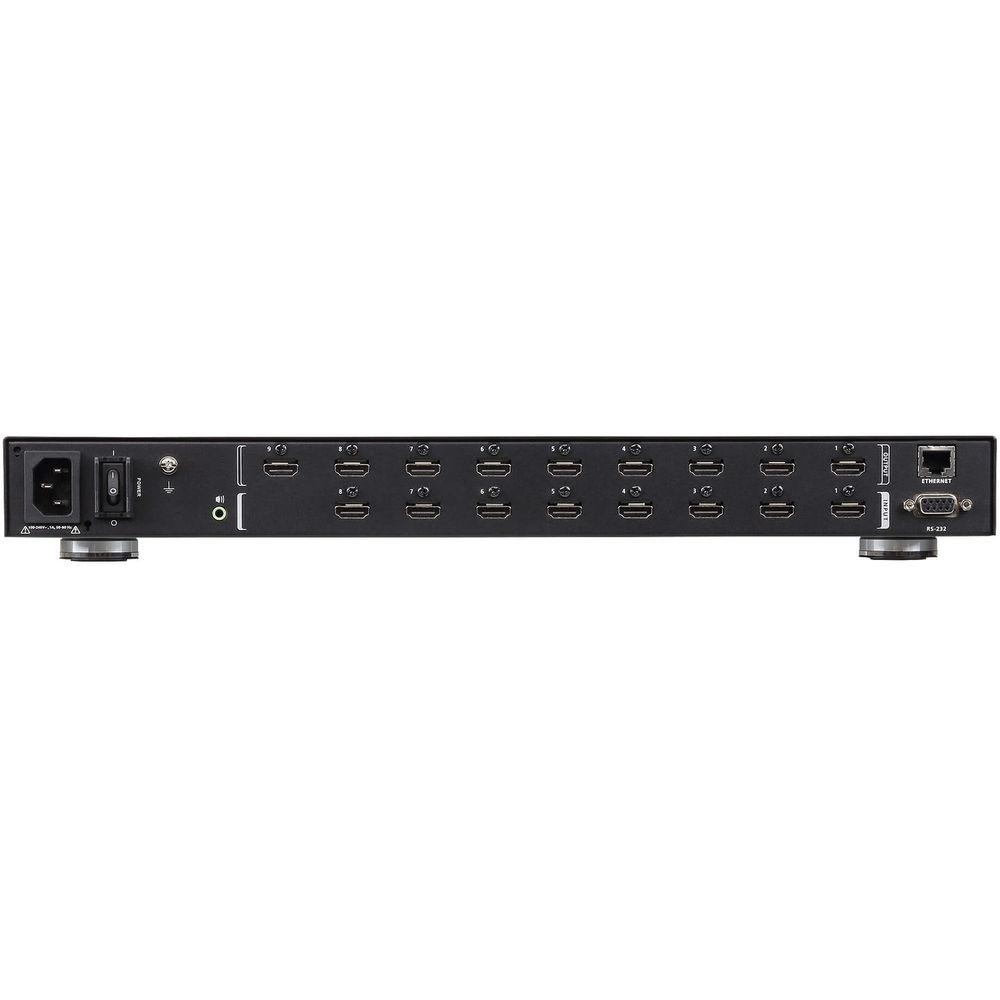

Technical parametersATEN VM6809H Specs | Video Input | Connectors: 8 x HDMI Type A
Impedance: 100 Ohms
Max Distance: 5.91' / 1.8 m | | Video Output | Connectors: 9 x HDMI Type A
Impedance: 100 Ohms
Max Distance: 49.21' / 15 m | | Video | Max Data Rate: 10.2 Gb/s (3.4 Gb/s per Lane)
Max Pixel Clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K), HDCP 2.2 Compatible, Consumer Electronics Control (CEC)
Max Resolution
4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) | | Audio | Output: 1 x 1/8" / 3.5 mm Stereo Mini Jack (Green) | | Control | RS-232
Connector: 1 x DB-9 Female
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No
Ethernet
Connector: 1 x RJ45 (Female) | | EDID | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard Support) | | Power | On/Off Switch: 1 x Rocker
Connector: 1 x 3-Prong (Socket)
Power: 100 to 240 VAC, 50/60 Hz
Draw: 1 A
Consumption 110 V: 79.5 W, 373 BTU
Consumption 220 V: 78.1 W, 366 BTU | | Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% Relative Humidity, Non-Condensing | | Dimensions | 17.02 x 17.73 x 1.73" / 43.23 x 45.03 x 4.39 cm | | Weight | 15.53 lb / 7.04 kg |
