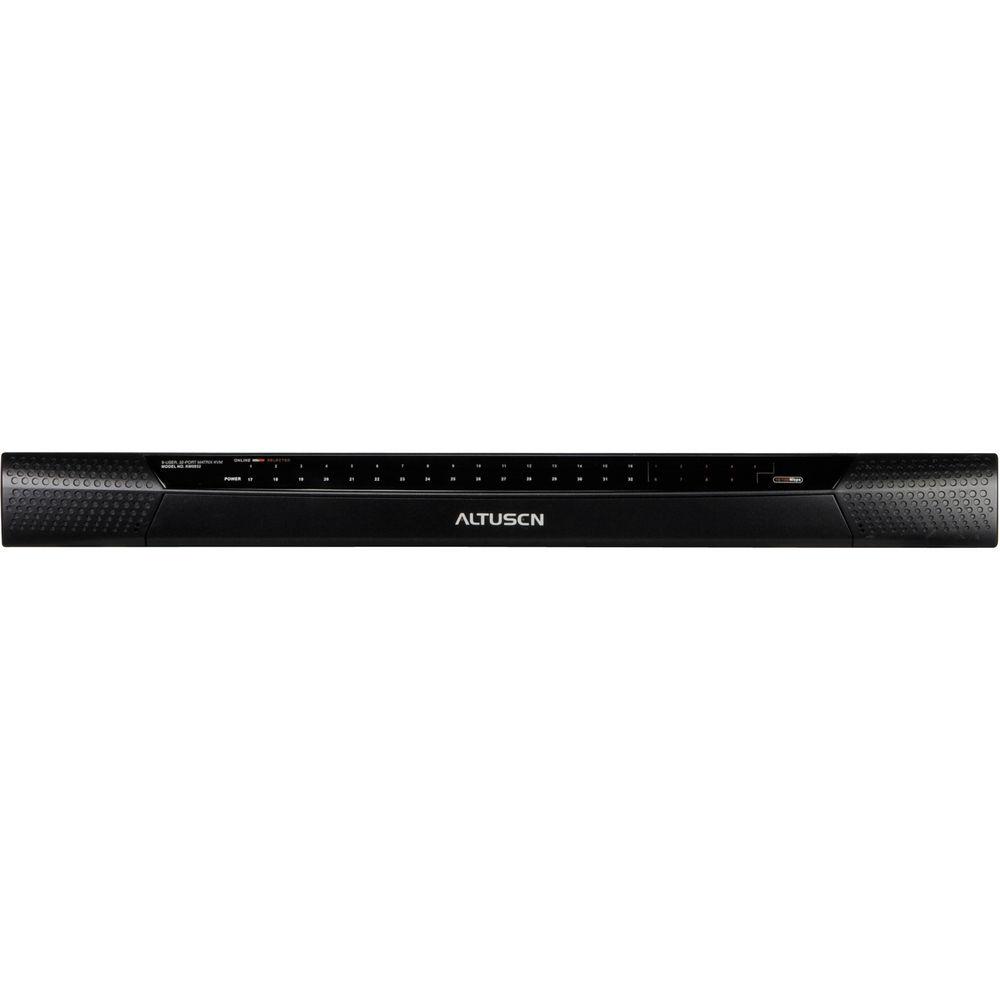

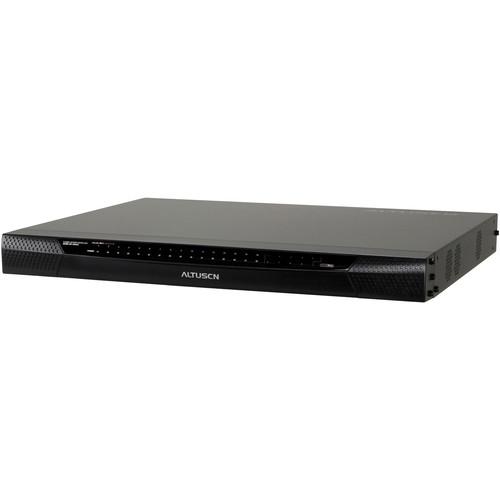

User Manual for ATEN 9-Console 32-Port Matrix KVM Switch Click to enlarge the picture
Contents of the user manual for the ATEN 9-Console 32-Port Matrix KVM Switch
- Product category: KVM Switches ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Switches
 |
User manual for the ATEN 9-Console 32-Port Matrix KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The 9-Console 32-Port Matrix KVM Switch from ATEN is designed for modern data centers that require control of multiple servers. The Matrix KVM switch offers flexible expansion support allowing up to seven Matrix Expansion KVM switches to be daisy chained from the master switch, 3-levels of cascaded switches, and up to 18 consoles to access the servers via a dual root configuration.
The KM0932 switch features automatic skew compensation and Auto Signal Compensation techniques for video enhancement, as well as a full screen Graphical User interface for a tree view list of installed device. The device can be password protected allowing users to only access authorized ports. When authorized, users can view multiple computers simultaneously or enable the "exclusive", "occupy", or "share" operation modes to limit other users from accessing in-use ports. The interconnection of the devices and adapters allows for simultaneous firmware upgrades for the cascaded and daisy chained switches and adapter cables.
The KVM switch can be placed in 1 unit of rack space and comes with a mounting kit, foot pad set, and two power cords for initial installation. - Audio support for multimedia devices
- Redundant power supply for extra reliability
- Full screen graphical user and embedded web interfaces
- Composite tree view of connected devices
- Automatic expansion of port list for added stations
- OSD Mode sets limited functionality for all user type accounts or can be disabled to allow for non-authenticated log-ins
- Supports up to 1024 user and 255 group accounts
- Intelligent path assignment
- Power Over the NET™ integration for power control
- RADIUS, LDAP, TACACS, LDAPS, and MS Active Director compatible for remote authentication
- Supports USB enabled servers at the operating system and BIOS levels
- Supports ATEN Log Server and Syslog Server
- Multi-lingual interface supports English, German, Japanese, Korean, Traditional Chinese, Simplified Chinese, and Russian
UPC: 672792400186 In the Box ATEN 9-Console 32-Port Matrix KVM Switch Mounting Kit 2 x Power Cords Foot Pad Set (4 pieces) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN 9-Console 32-Port Matrix KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN KM0932 Specs | Computer Connections | 32 | | Console Connections | 9 | | Connectors | Console Port: 9 x RJ-45 Female

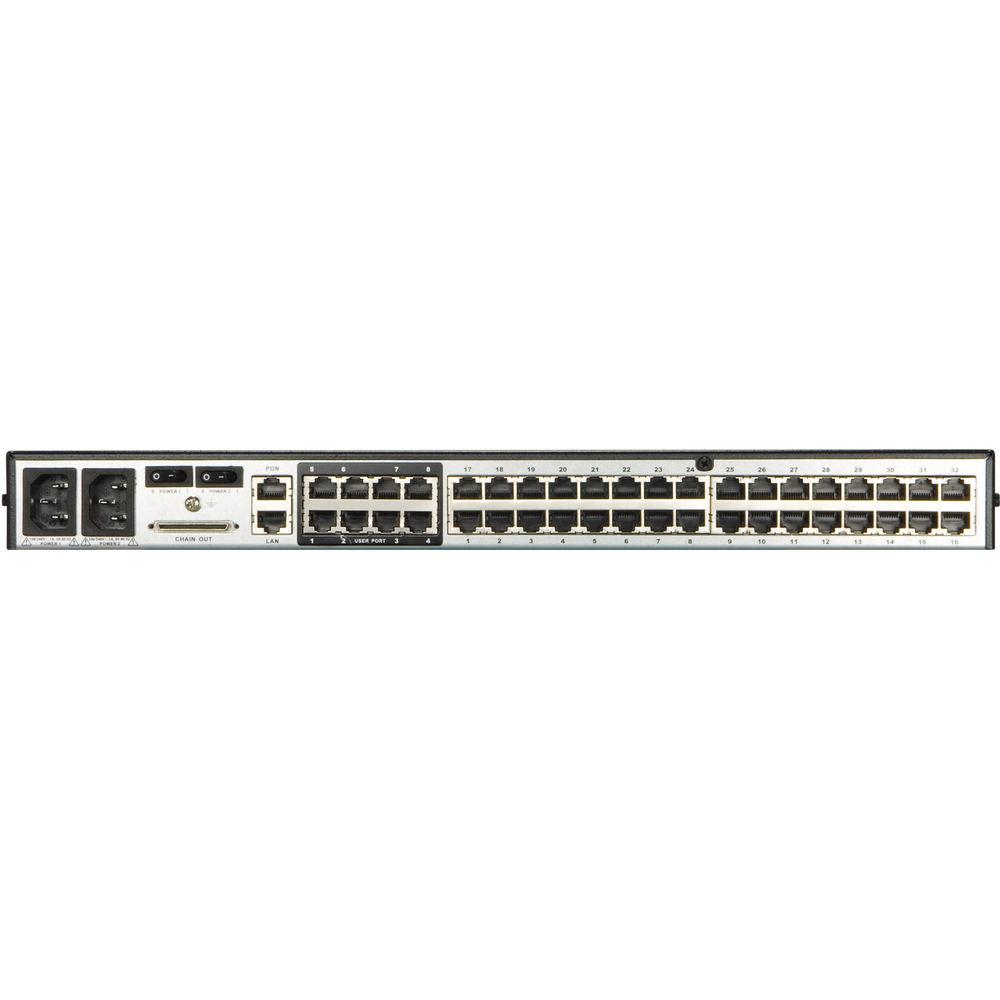

KVM Port: 32 x RJ-45 Female
Daisy Chain: 1 x VHDCI 68 Female (Black)
LAN 1 x RJ-45 Female
PON: 1 x RJ-45 Female
Power: 2 x 3-prong AC socket | | Switches | Reset: 1 x Semi-recessed push-button
Power: 2 x Rocker
F/W Upgrade: 1 x Slide | | LEDs | Console Port (On Line): 9 (Green)
KVM Port (On Line/Selected): 32 Dual-colored (Green/Orange or Red)
Power: 1 (Blue) | | Video Resolution | 1280 x 1024 @ 60 Hz (Max 300 m) | | Scan Interval | 1-240 Seconds | | Emulation | Keyboard/Mouse: PS/2; USB | | Port Selection | GUI, Hotkeys | | Enclosure | Metal | | Input | 100 to 240 V, 50/60 Hz; 1A | | Power Consumption | 120 V / 50 W; 240 V / 51 W | | Compatible Operating Systems | PC, Mac, Sun, and serial console access | | Dimensions (L x W x H) | 17.2 x 16.1 x 1.7" (43.8 x 40.9 x 4.4 cm) | | Weight | 13.4 lb (6.1 kg) | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 22.5 x 20.8 x 6.5" |
