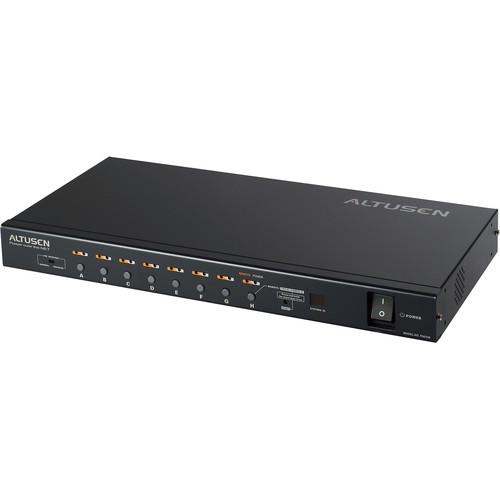

User Manual for ATEN Altusen 8-Port Power over the NET Click to enlarge the picture
Contents of the user manual for the ATEN Altusen 8-Port Power over the
- Product category: Power over Ethernet (PoE) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Power over Ethernet (PoE)
|
User manual for the ATEN Altusen 8-Port Power over the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The Altusen 8-Port Power over the NET from ATEN is equipped with eight hot pluggable power ports for easy server room management. Each port can be individually controlled so that users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order. On/Off scheduling allows for preset start/shutdowns/restarts on a daily, weekly, or monthly basis. The PN0108A works together with the CN6000, PN9108, SN0108, or SN0116 devices (sold separately). - Remote power on/off/reboot control for eight outlets via TCP/IP and a built-in RS-232 Power over the NET port
- Local power on/off/reboot control via the PN0108A's PON port to the computer's RS-232 port
- Daisy chain up to 15 additional stations to control up to 128 outlets
- Manual switching between local and remote access for each port via front panel push-button switches
- Setup and operation via a GUI interface
- Provides three configuration/management methods: Browser, Telnet, or Console Terminal
- Overcurrent protection and recovery for each AC port, and total port overcurrent protection for remote users to monitor the outlet status via the GUI interface
- Separate circuits for the unit's power and the power to the devices
- On/Off scheduling allows one-time, daily, and weekly starts/shutdowns at user-specified times
- Port grouping allows you to perform the same action on a specified group of ports
- LEDs for status monitoring
- Two level levels of security (administrator and user)
- Configuration can be reset
- Firmware upgradeable; daisy chained stations receive the upgrade via the daisy chain bus
- Multiplatform support: Windows 2000/XP/Vista, Linux, Unix, and FreeBSD
In the Box ATEN Altusen 8-Port Power over the NET AC Power Cord 8 x Power Outlet Power Cords 8 x Safe Shutdown Cables PON Cable (9-Pin Sub-D Female to Male) Mounting Kit 4 x Foot Pads Software CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN Altusen 8-Port Power over the NET in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN PN0108A Specs | Power Input | 1 x IEC 60320/C14, Male | | Power Outputs | 8 x IEC 60320/C13, Female | | Connectors | 1 x 9-pin Sub-D Female, PON Input
1 x 9-pin Sub-D Male, PON Output
8 x 6-pin RJ45 Female, TCP/IP Safe Shutdown Port | | Switches | 1 x Semi-Recessed Push Button, Reset
1 x Focker, Power
1 x Slide, Firmware Upgrade Slide
8 x Push Buttons, Outlet/Remote On/Off | | LEDs | 8 x Orange, Power Outlet
8 x Green, Remote
2 x 7-Segment Orange, Station ID | | Maximum Input Power | 100 to 120 V, 50/60 Hz, 12 A
220 to 240 V, 50/60 Hz, 10 A | | Power Consumption | 120 V, 1440 W
230 V, 2300 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH | | Housing | Metal | | Dimensions | 17.2 x 8.6 x 1.7" / 43.7 x 21.8 x 4.4 cm | | Weight | 8.2 lb / 3.7 kg |
