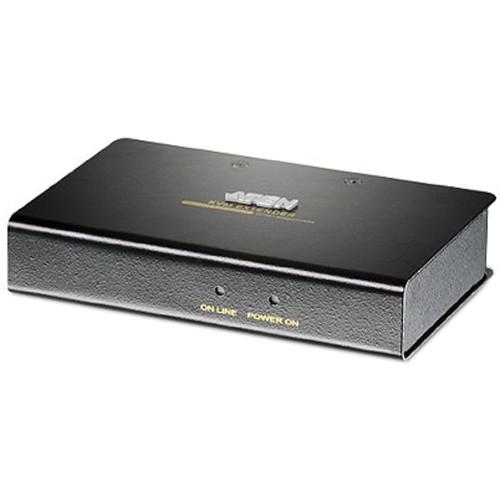

User Manual for ATEN CE250A PS 2 VGA Cat 5 KVM Extender Set Click to enlarge the picture
Contents of the user manual for the ATEN CE250A PS 2 VGA Cat
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN CE250A PS 2 VGA Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The CE250A PS/2 VGA Cat 5e KVM Extender from Aten enables you to access your keyboard, mouse, and monitor through a local or remote console up to 492' away using Cat 5e cable. This extender set's dual console operation suits it to any type of installation where environmental influences may dictate remote operation. Supporting up to 1280 x 1024 video, the CE250A senses the distance to your computer and automatically adjusts the gain to compensate. Features include push-button console selection, 15-pin VGA connectors, built-in 8KV ESD protection, and 2KV surge protection. It also features a custom ASIC for added reliability and compatibility. Features - Uses a single Cat 5e cable to connect the local and remote units - up to 4920' apart
- Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse, and monitor consoles
- Pushbutton selection of the active console
- Supports video resolutions up to 1280 x 1024 at 60 Hz
- Automatic gain control - automatically adjusts the signal strength to compensate for distance
- Includes a custom 6' KVM cable
- Supports widescreen formats 1
Please Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator. close - Supports VGA, SVGA, and Multisync monitors - local monitor supports DDC, DDC2, and DDC2B
- Supports Microsoft Intellimouse and the scrolling wheel on most mice
- The local unit takes its power from the computer; external power is only required when the power from the local computer/computers in the KVM installation is insufficient
- Built-in 8KV ESD protection and 2KV surge protection
- Multiplatform OS support: Windows 2000/XP/Vista and Linux
UPC: 672792200366 In the Box ATEN CE250A PS/2 VGA Cat 5 KVM Extender Set CE250AL KVM Extender (Transmitter) CE250AR KVM Extender (Receiver) 6' KVM Cable (VGA, PS/2) Power Adapter Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE250A PS 2 VGA Cat 5 KVM Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE250A Specs | | | Ports | Transmitter:
1 x HD15 VGA Female (Input)
1 x HD15 VGA Female (Output)
2 x PS/2 (Input)
1 x RJ45 Female
Receiver:
1 x HD15 VGA Female (Input)
2 x PS/2 (Input)
1 x RJ45 Female | | Supported Resolutions | 1280 x 1024 @ 60 Hz Maximum resolution. | | Maximum Transmission Distance | 492.13' / 150 m | | Transmission Method | CAT5e Cable | | Supported Video Formats | HDTV, SVGA, VGA | | Operating System Support | Linux, NetWare, Windows | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | Storage Humidity | 0 to 80% | | | | Material of Construction | Metal | | Status Monitoring | LED Indicator | | Dimensions | 4.9 x 3.2 x 1.0" / 12.5 x 8.1 x 2.6 cm (Transmitter)
4.9 x 3.2 x 1.0" / 12.5 x 8.1 x 2.6 cm (Receiver) | | Weight | 10.6 oz / 0.3 kg (Transmitter)
10.6 oz / 0.3 kg (Receiver) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 3.9" |
