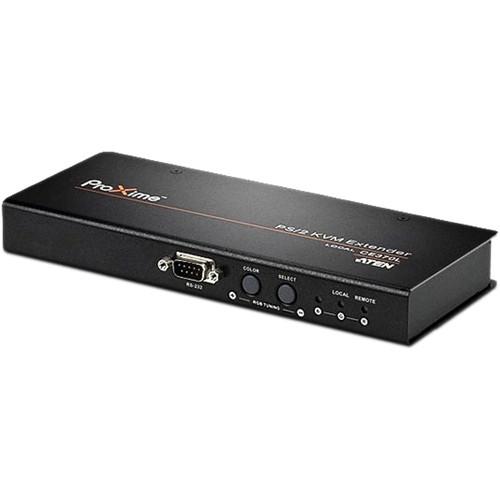

Product description The Aten CE370 PS/2 KVM Extender has automatic signal compensation and RS-232 serial functionality, allowing access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because of this feature, the CE370 is geared toward use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of a factory floor, or the harsh environmental influence of a construction site, for example. This allows you to deploy system equipment over 1000' distances using Cat5e cable.
The CE370 supports RGB delay tuner to manually synchronize the RGB signals. The CE370's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings. - Local and Remote Units connect at distances up to 1000' using Cat 5e cable
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
- Manually tune the R/G/B settings, store and retrieve
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200 @ 60Hz 500', 1280 x 1024 @ 60Hz 1000'
- No loss in audio quality at 1000 feet
- Supports Wide Screen formats Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator.
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- no software required - connecting cables to the devices is all it takes
UPC: 672792002427 In the Box ATEN CE370 PS/2 KVM Extender 6' Custom PS/2 KVM Cable Set 2 x Power Adapter Rack Mount Kit 2 x Grounding Wires Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE370 PS 2 KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE370 Specs | Supported Operating Systems | Windows: 2000, 2003, 2008, XP, Vista, 7
Linux: Redhat 9.0 and up; SuSE 10, 11.1 and up; Debian 3.1, 4.0; Ubuntu 7.04, 7.10
UNIX: FreeBSD 5.5, 6.1, 6.2
Novell: Netware 6.0 and up | | Console Connectors | Mouse: 1 x 6-pin Mini-DIN female on both local and remote
Keyboard: 1 x 6-pin Mini-DIN female on both local and remote
Monitor: 1 x VGA female on both local and remote | | CPU Connectors | Keyboard, mouse, and monitor: 1 x SPHD-17 female on local
Audio: 1 x 3.5 mm mini stereo jack
Microphone: 1 x 3.5 mm mini stereo jack | | Connectors | RS-232: 1 x D89 on both local and remote | | Cable Connection | Input: 1 x RJ45 (remote)
Output: 1 x RJ45 (Local) | | LED Indicator | 1 x on both local and remote | | Switches | Port selection: 1 x pushbutton
Picture compensation: 1 x pushbutton | | Video Resolution | Max 1920 x 1080 @ 500' | | Cable Distance | Max 1000' (1280 x 1024 @ 60Hz) | | Emulation | Keyboard: PS/2
Mouse: PS/2 | | Power | Voltage: 5.3VDC (local and remote)
Amps: 800mA local, 1.3A remote | | Power Consumption (max) | Local: 3.4W - 11.0 BTU
Remote: 6.4W - 22.0 BTU | | Operating Temperature & Humidity | 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Housing Material | Metal | | Dimensions (W x H x D) | Local: 7.8 x 1.0 x 3.2" (19.8 x 2.5 x 8.1 cm)
Remote: 7.8 x 1.0 x 3.2" (19.8 x 2.5 x 8.1 cm) | | Weight | Transmitter: 17.28 oz (0.49 kg)
Receiver: 16.93 oz (0.48 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 12.9 x 8.3 x 3.9" |
