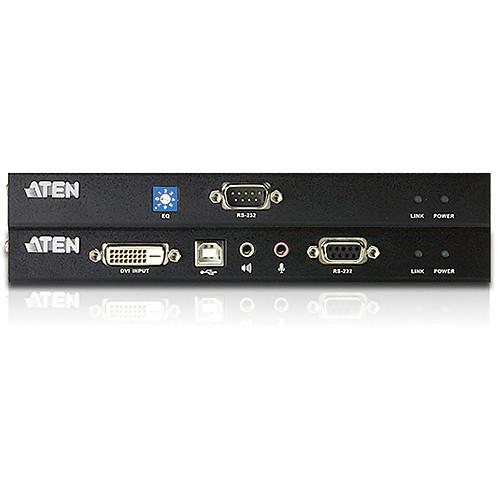

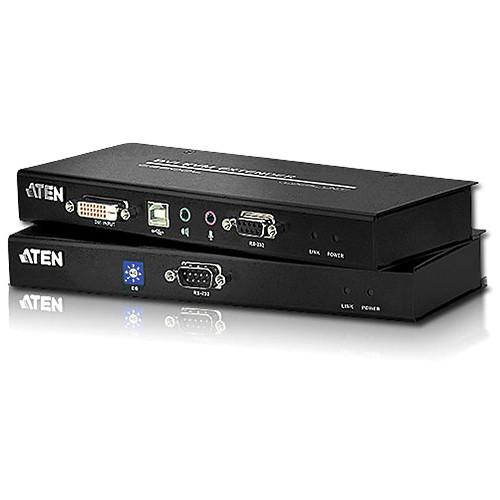

Product description The Aten CE600 DVI KVM Extender is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse), gearing it towards use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows you to deploy system equipment over large distances. The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution. The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals. - Local and remote units connect at distances up to 200' using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console up to 200' away
- Allows A/V transmission over one Cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud rate 115200 bps)
- Audio enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (local unit only) - select between local and auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports widescreen formats
- Up to 1920 x 1200 @ 60 Hz at 100'; 1024 x 768 @ 60 Hz at 200'
- No software required - connecting cables to the devices is all it takes
UPC: 672792002991 In the Box ATEN CE600 DVI KVM Extender with Audio 6' USB DVI-D Single Link KVM Cable Set 2 x Power Adapter Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE600 DVI KVM Extender with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE600 Specs | Supported Operating Systems | Windows: 2000, 2003, 2008, XP, Vista, 7
Linux: Redhat 9.0 and up; SuSE 10, 11.1 and up; Debian 3.1, 4.0; Ubuntu 7.04, 7.10
UNIX: FreeBSD 5.5, 6.1, 6.2

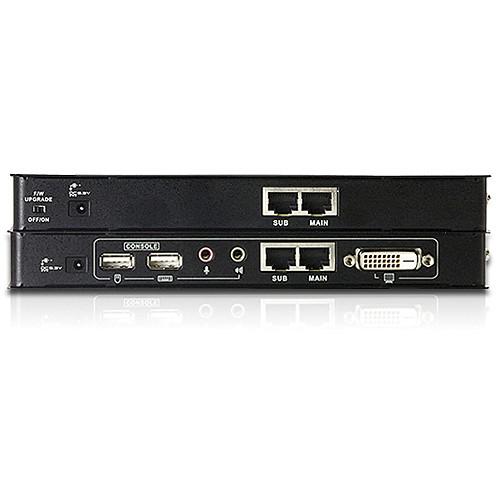

Novell: Netware 6.0 and up | | Connectors | Local:
DVI-D female
Mini stereo jack female Speaker (green)
Mini stereo jack female Mic (pink)
USB Type B female
DB9 for RS-232
2 x RJ-45 female
Remote:
USB Type A Female Keyboard
DVI-D female
USB Type A female Mouse
Mini stereo jack female Speaker (green)
Mini stereo jack female Mic (pink)
DB9 for RS-232
2 x RJ-45 female | | LED Indicator | 1 x link, 1 x power on both local and remote | | Switches | Remote: 1 x 8-position EQ switch
Local: 1 x firmware upgrade slide switch | | Emulation | Keyboard/mouse: USB | | Video Resolution | 1920 x 1200 @ 60Hz (30 m)
1024 x 768 @ 60Hz (60 m) | | Power Consumption | Local: DC 5.3 V/2.65 W
Remote: DC 5.3 V/4.24 W | | Operating Temperature & Humidity | 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Housing Material | Metal | | Dimensions (L x W x H) | Local: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm)
Remote: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm) | | Weight | Local: 16.93 oz (0.48 kg)
Remote: 16.93 oz (0.48 kg) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 13.0 x 8.3 x 3.8" |
