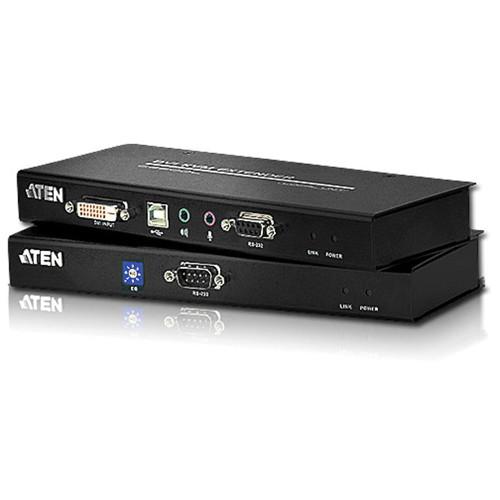

Product description The Aten CE602 DVI Dual Link and USB Based KVM Extender has RS-232 serial functionality, and allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because of this, the CE602 is geared toward use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows you to deploy system equipment over large distances.
The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution. It uses two Cat 5e cables for HDCP, RS-232, microphone and dual link signals. You can also use just one Cat 5e cable if using single link connections. - Local and remote units connect at distances up to 200' using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console up to 200' away
- Supports DVI-D interface and allows transmission of DVI dual link signals
- Allows A/V transmission over one Cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, microphone, and dual link signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud rate 115200 bps)
- Audio enabled - supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports widescreen formats
- Up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 131.2'; 1920 x 1200 @ 60 Hz at 98.4'; 1024 x 768 @ 60 Hz at 196.9'
- No software required - connecting cables to the devices is all it takes
UPC: 672792002908 In the Box ATEN CE602 DVI Dual Link and USB Based KVM Extender with Audio 6' USB DVI-D Dual Link KVM Cable Set 2 x Power Adapter Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE602 DVI Dual Link and USB Based KVM Extender with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE602 Specs | Supported Operating Systems | Windows: 2000, 2003, 2008, XP, Vista, 7
Linux: Redhat 9.0 and up; SuSE 10, 11.1 and up; Debian 3.1, 4.0; Ubuntu 7.04, 7.10
UNIX: FreeBSD 5.5, 6.1, 6.2

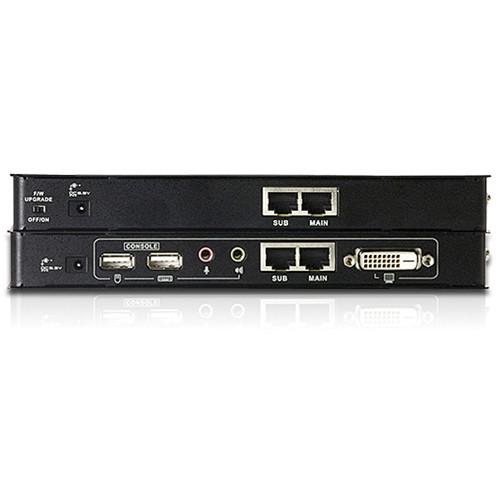

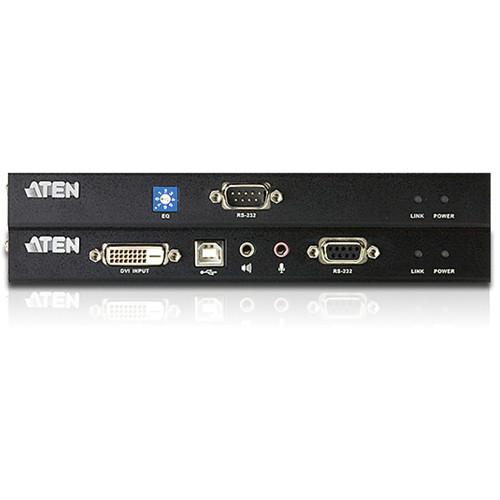

Novell: Netware 6.0 and up | | Connectors | Local:
DVI-D female
Mini stereo jack female Speaker (green)
Mini stereo jack female Mic (pink)
USB Type B Female
DB-9 for RS232
Remote:
USB Type A Female Keyboard
DVI-D female
USB Type A female Mouse
Mini stereo jack female Speaker (green)
Mini stereo jack female Mic (pink)
DB-9 for RS232
RJ-45 female | | LED Indicator | 1 x link, 1 x power on both local and remote | | Switches | Remote: 1 x 8-position EQ switch
Local: 1 x firmware upgrade slide switch | | Emulation | Keyboard/mouse: USB | | Video Resolution | 1920 x 1200 @ 60Hz (30 m)
1024 x 768 @ 60Hz (60 m) | | Power Consumption | Local: DC 5.3 V/2.65 W
Remote: DC 5.3 V/4.24 W | | Operating Temperature & Humidity | 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Housing Material | Metal | | Dimensions (L x W x H) | Local: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm)
Remote: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm) | | Weight | Local: 16.93 oz (0.48 kg)
Remote: 16.93 oz (0.48 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 13.0 x 8.4 x 3.8" |
