Product description The CE680 DVI Optical KVM Extender from Aten overcomes the length restrictions of standard DVI cables by using fiber optics to send high definition audio, video, and control signals over long distances. The CE680 can transmit KVM DVI signals extremely long distances up to 656.2 yards away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gb/s optical link, for resolutions up to 1920 x 1200 at 60Hz, 24-bits, with optimal picture quality.
In addition to extending keyboard and mouse control, the CE680 also transfers RS-232 signals (up to 115 kb/s) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners, or USB devices such as touchscreens, which can provide access to a computer connected at the local site up to 656.2 yards away.
The CE680 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of the fiber optic cable technology to connect the local and remote units, providing easy installation and an extremely long extension of KVM DVI signals. - Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Video quality of up to 1920 x 1200 at 60 Hz (24-bits) gets a crisp image on your screen over long distance transmissions up to 656.2 yards
- Touchscreen support connects a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- RS-232 serial port connect to a serial terminal or serial devices such as barcode scanners (Baud Rate 115,200 bps)
- PC Wakeup support use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio enabled supports stereo speakers and microphone

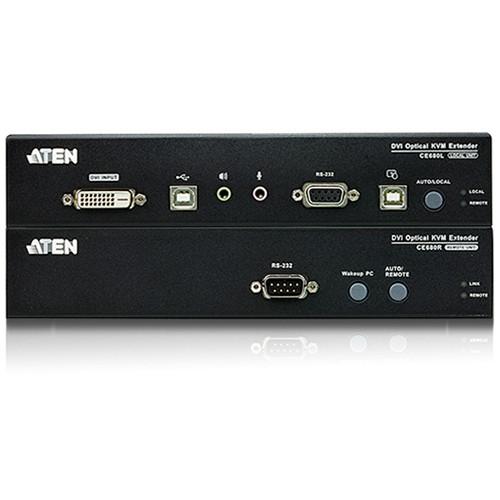

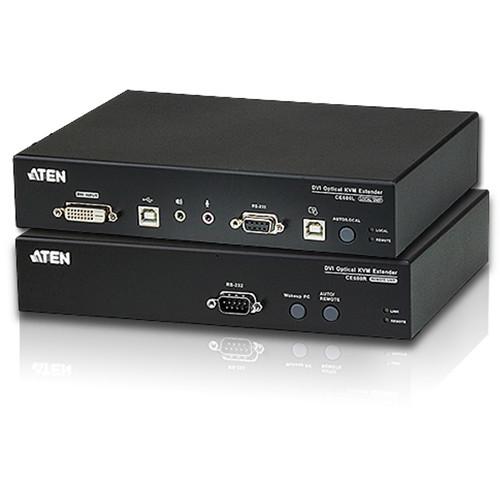

UPC: 672792005299 In the Box ATEN CE680 DVI Optical KVM Extender CE680L DVI Optical KVM Extender (Local Unit) CE680R DVI Optical KVM Extender (Remote Unit) Custom KVM Cable Set (5.9') USB Cable (5.9') 2 x Power Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE680 DVI Optical KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

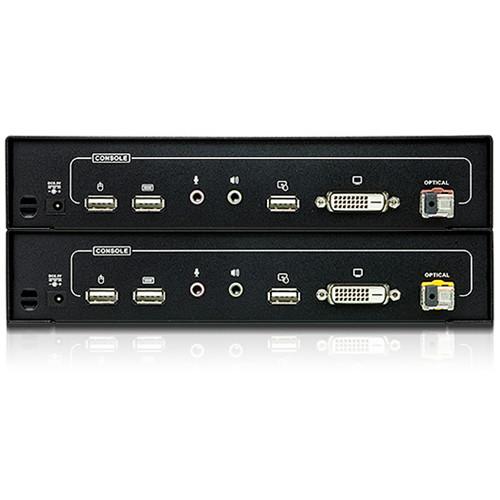

Technical parametersATEN CE680 Specs | | | Ports | Transmitter:
1 x DVI-D Female (Input)
2 x USB Type-B Female (Input)
2 x 3.5 mm Audio (Input)
1 x DB9 RS232 (Input)
2 x 3.5 mm Audio (Output)
1 x LC Fiber (Output)
1 x DVI-D (Output)
3 x USB Type-A (Output)
Receiver:
1 x LC (Input)
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x DVI-D (Output)
3 x USB Type-A (Output)
1 x DB9 RS232 (Output) | | Maximum Transmission Distance | 1968.5' / 600 m | | Transmission Method | Singlemode Cable | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 80% | | | | Material of Construction | Metal | | Status Monitoring | LED Indicator | | Dimensions | 8.5 x 6.4 x 1.6" / 21.5 x 16.3 x 4.2 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 22.0 x 10.2 x 6.3" |
