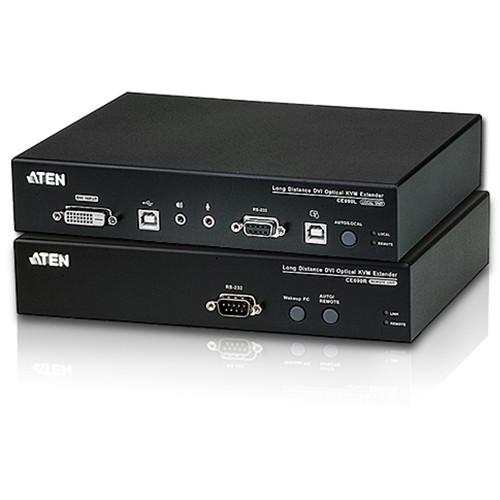

Product description The CE690 Long Distance DVI Optical KVM Extender from Aten overcomes the length restrictions of standard DVI cables by using fiber optics to send high definition audio, video, and control signals over long distances. The CE690 can transmit KVM DVI signals extremely long distances up to 12.4 miles away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gb/s optical link, for resolutions up to 1920 x 1200 at 60Hz, 24-bits, with optimal picture quality.
In addition to extending keyboard and mouse control, the CE690 also transfers RS-232 signals (up to 115 kb/s) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners, or USB devices such as touchscreens, which can provide access to a computer connected at the local site up to 12.4 miles away.
The CE690 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE690 takes advantage of the fiber optic cable technology to connect the local and remote units, providing easy installation and an extremely long extension of KVM DVI signals. - Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Video quality of up to 1920 x 1200 at 60 Hz (24-bits) gets a crisp image on your screen over long distance transmissions up to 12.4 miles
- Touchscreen support connects a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- RS-232 serial port connect to a serial terminal or serial devices such as barcode scanners (Baud Rate 115,200 bps)
- PC Wakeup support use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio enabled supports stereo speakers and microphone
UPC: 672792005305 In the Box ATEN CE690 Long Distance DVI Optical KVM Extender CE690L DVI Optical KVM Extender (Local Unit) Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE690 Long Distance DVI Optical KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

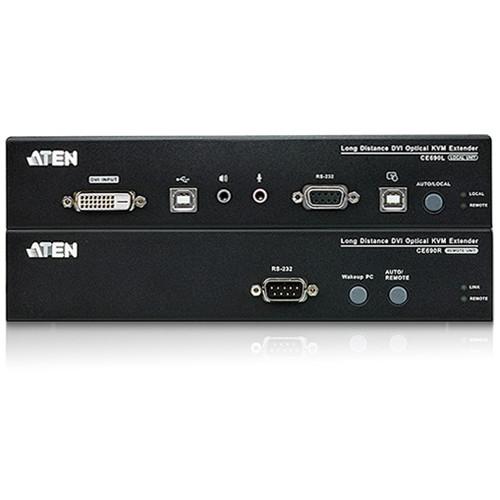

Technical parametersATEN CE690 Specs | Connectors | CE690L's KVM Ports
Video: 1 x DVI-D female (white)
Speaker: 1 x Mini stereo jack female (green)
Microphone: 1 x Mini stereo jack female (pink)
USB (Keyboard/Mouse): 1 x USB type-B female (white)
USB (Touch Panel): 1 x USB type-B female (white)

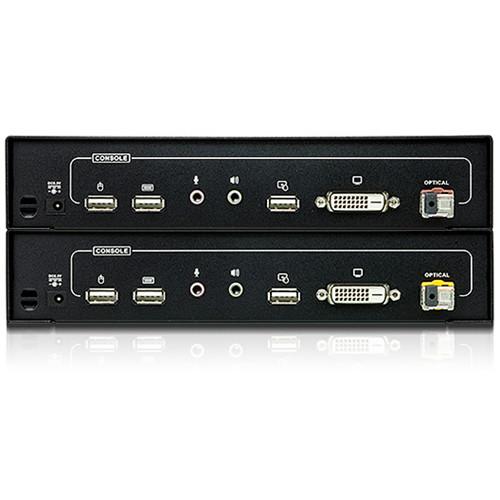

CE690L and CE690R's Console Ports
Keyboard: 1 x USB type-A female (white)
Video: 1 x DVI-D female (white)
Mouse: 1 x USB type-A female (white)
Speaker: 1 x Mini stereo jack female (green)
Microphone: 1 x Mini stereo jack female (pink)
USB (Touch Panel): 1 x USB type-A female (white)
Power: 1 x DC jack (black)
Optical In/Out: 1 x bi-directional SFP (LC)
CE690L RS-232: 1 x DB-9 female (black)
CE690R RS-232: 1 x DB-9 male (black) | | Indicator LEDs | CE690L: Three green lights for local, remote, and link
CE690R: Two green lights for remote and link | | Switches | One pushbutton on CE690L for operation mode selection
One pushbutton on CE690R to wakeup PC | | Fiber optic | Operating Distance: 12.4 mile / 20 km with SM fiber
Wavelength: 1310/1550 nm for SM
Data Rate (Single Fiber): 3.125 Gb/s | | Power Consumption | CE690L: 5.3 VDC, 10.2 W
CE690R: 5.3 VDC, 9 W | | Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0 to 80% RH, non-condensing | | Material of Construction | Metal | | Dimensions (LxWxH) | 8.5 x 6.4 x 1.6" / 21.5 x 16.3 x 4.2 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 22.0 x 10.1 x 6.3" |
