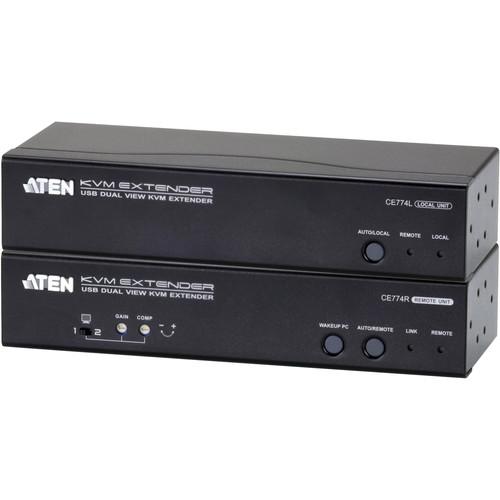

Product description The CE774 Dual View KVM Extender from Aten allows access to a computer system from a remote dual view console up to 500' away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced computer wake-up feature allows you to push a button from the remote dual view console to wake a computer at the local site via RS-232, without going to the local site. There are also built-in tuners on the front panel for adjusting the picture quality. - Dual view support - connect two screens to transmit two video output signals to a remote site up to 500' away using Cat 5e/6 cables
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Supports most Windows, Linux, UNIX, Novell, and Mac operating systems
- Computer wakeup support - from the remote console, simply push a button to wake a computer at the local site via RS-232
- 1920 x 1200 @ 60Hz (100'), 1600 x 1200 @ 60Hz (500')
- Gain / compensation control - adjusts signal strength in order to compensate for distance
- On screen display - conveniently adjust video quality with the intuitive OSD menu system
- RS-232 channel - allows you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (contact voltage 8KV; air voltage 15KV)
- Sun/Mac keyboard support and emulation Note: Windows keyboard combinations emulate Sun/Mac keyboards. Sun/Mac keyboards only work with their own computers
- Supports widescreen formats Note: The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an optional EDID emulator.
UPC: 672792003714 In the Box ATEN CE774 Dual View KVM Extender USB KVM Cable Set VGA Cable 2 x Power Adapter Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN CE774 Dual View KVM Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN CE774 Specs | Supported Operating Systems | Windows: 2000, XP, Vista, 7
Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
UNIX: FreeBSD 4.2 and up; Sun Solaris 8 and up
Novell: Netware 6.0 and up
Mac: OS 9 and up | | Connectors | Console Ports (local and remote):
Keyboard - 1 x USB type A female (white)
Video - 2 x HDB-15 female (blue)
Mouse - 1 x USB type A female (white)
Speakers - 1 x mini stereo jack female (green)
Mic - 1 x mini stereo jack female (pink)
Main - 1 x RJ-45 female (black)
Sub - 1 x RJ-45 female (black)
KVM Ports (local only): Keyboard / video / mouse: 1 x SPHD-17 female (yellow)
Speakers - 1 x mini stereo jack (green)
Mic - 1 x mini stereo jack (pink)
VGA input - 1 x HDB-15 male (blue)
RS-232 (local and remote): 1 x DB-9 female (black)
Power: 1 x DC jack (black) | | Buttons or Switches | Operating mode selection (local and remote): 1 x pushbutton
Wakeup computer (remote only): 1 x pushbutton
Video output port selection (remote only): 1 x slide switch
Video gain tuner (remote only): 1 x knob
Video compensation tuner (remote only): 1 x knob | | LED Indicators | Local unit: 2 x green (local, remote)
Remote unit: 1 green (link) | | Emulation | Keyboard, mouse: USB | | Video Resolution | 1920 x 1200 @ 60Hz (100' (30 m)), 1600 x 1200 @ 60Hz (500' (150 m)) | | Operating Temperature & Humidity | 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Power Consumption | Local: 5.3 VDC / 4.38 W
Remote: 5.3 VDC / 7.95 W | | Housing Material | Metal | | Dimensions (W x L x H) | Local: 7.9 x 3.0 x 1.7" (20.0 x 7.6 x 4.2 cm)
Remote: 7.9 x 3.0 x 1.7" (20.0 x 7.6 x 4.2 cm) | | Weight | Local: 1.52 lb (0.69 kg)
Remote: 1.52 lb (0.69 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 12.8 x 8.4 x 4.1" |
